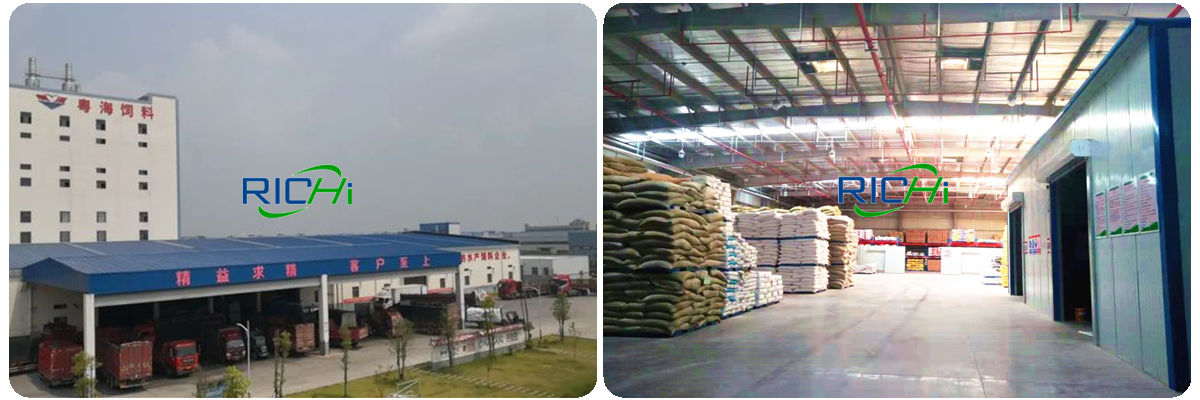

Large Capacity 25T/H Full Automatic Aqua Prawn Fish Feed Manufacturing Plant Project Report

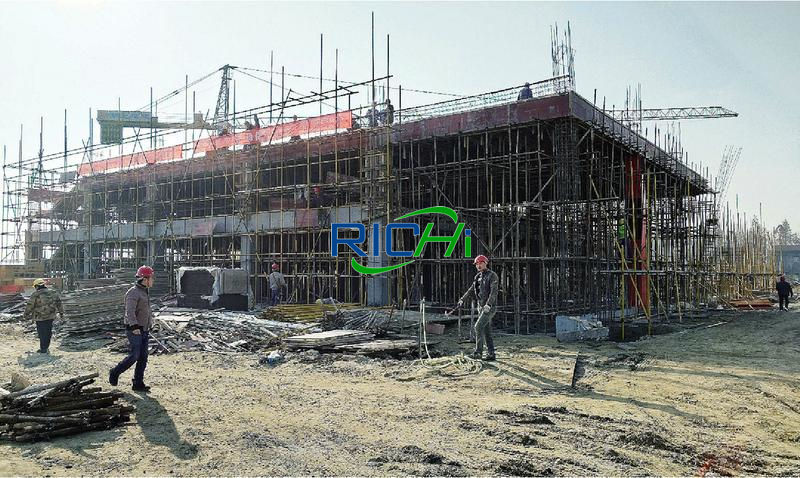

• The nature of 25 t/h fish feed plant construction: Newly built
• 25T/H Fish feed mill plant cost: total investment of 250 million RMB (39,100,000 USD), fish feed machines: 1,800,000 USD, environmental protection investment 1,024,420 USD;
• Total fish feed factory area: 66661m² (about 100 acres);
• Number of fish feed mill employees and system: 96 employees, three-shift operation; equipment operates 200 days a year, 24 hours a day, 4800 hours a year;
• Total output of the fish feed factory: 120,000 tons per year, 600 tons per day, 25 tons per hour
• 25T/H advanced fish feed mill project commissioning date: June 2019

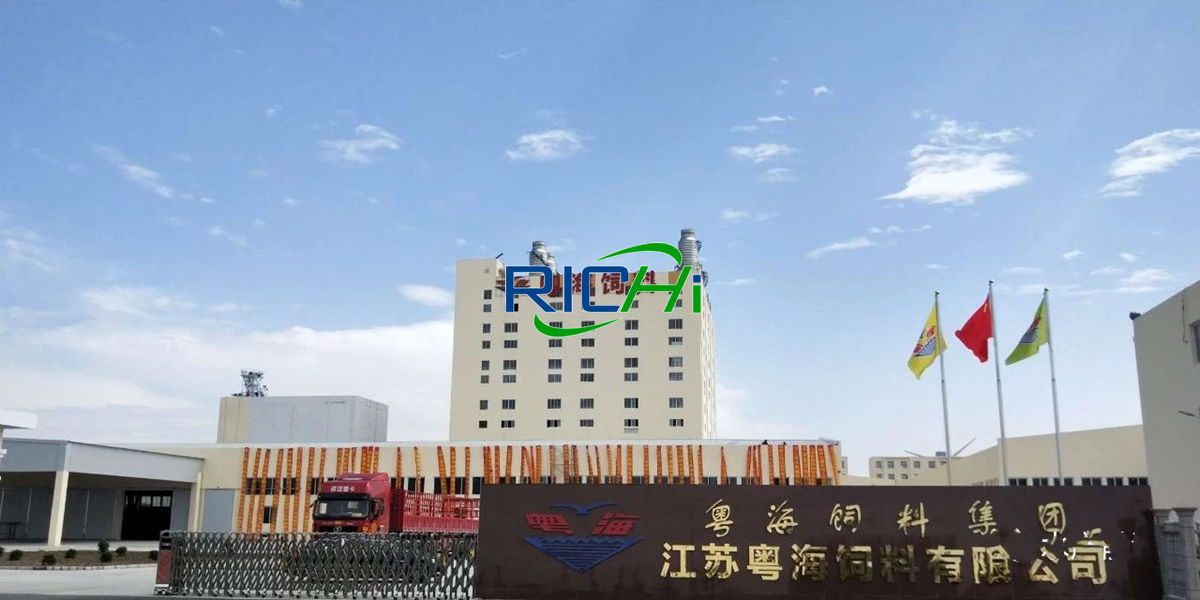

• Project site: Coastal Economic Zone of Dongtai City, China

Construction scale and project content

Main project and product plan

Raw and auxiliary materials

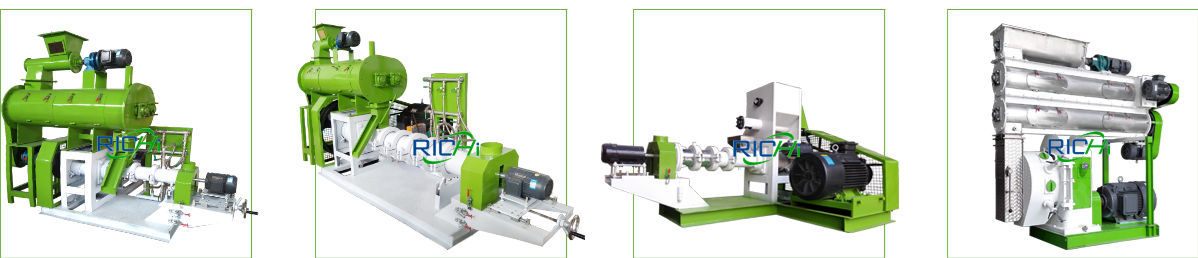

Main fish feed production plant equipment

It is worth mentioning that this 25 tons per hour aqua fish feed manufacturing unit project was not undertaken by us at the beginning, but later because the customer was not satisfied with the previous feed factory provider's solutions, so decided to cooperate with RICHI.

Machienry to operate fish feed processing plant 25tph

Due to the production needs of the customer's fish feed company, on the basis of the original aqua feed factory design, we added unloading procedures for the customer's fish feed mill process, increased fish feed production equipment with bucket elevator, and added bulk bins, oil tanks, unloading workshops, and waste gas for the layout. The treatment facility adds a bag dust removal device to treat the discharge waste gas, adds a biological deodorizing spray purification tower to treat crushing, batching, and mixed waste gas, and adds a waste gas treatment fan.

Utilities of fish feed production with 25 t/h capacity

Water supply and drainage

• Water supply
  The main water used for the 25t/h commercial aqua fish feed factory project is domestic water, greening water, and biological deodorizing spray purification tower supplementary water. The annual water consumption is 14622m3/a, all from the park's tap water pipe network.
• Draining
  The 25t/h fish feed manufacturing plant project adopts the drainage system of rain and sewage diversion. All the raw and auxiliary materials of this project are stored in the warehouse in the factory. Therefore, this project does not consider the collection of initial rainwater, and the project does not clean the ground.

Power supply

The annual electricity consumption of the 25t/h fish feed mill project is about 18 million kWh, which is supplied by the power grid in the coastal area of ​​Dongtai City.

Heat supply

This 25t/h new build professional design 25t/h fish feed factory project uses 48,000t/a of steam per year for tempering, granulating, puffing, post-curing, and drying processes, which is supplied by the central heating pipe network in the park.

Ventilation system

The ventilation system in the 25t/h fish feed plant production workshop was realized by installing an exhaust air system on the roof of the 42m high production workshop. Install an exhaust air system on the wall of the 7m raw material workshop to realize circulating ventilation in the production workshop.

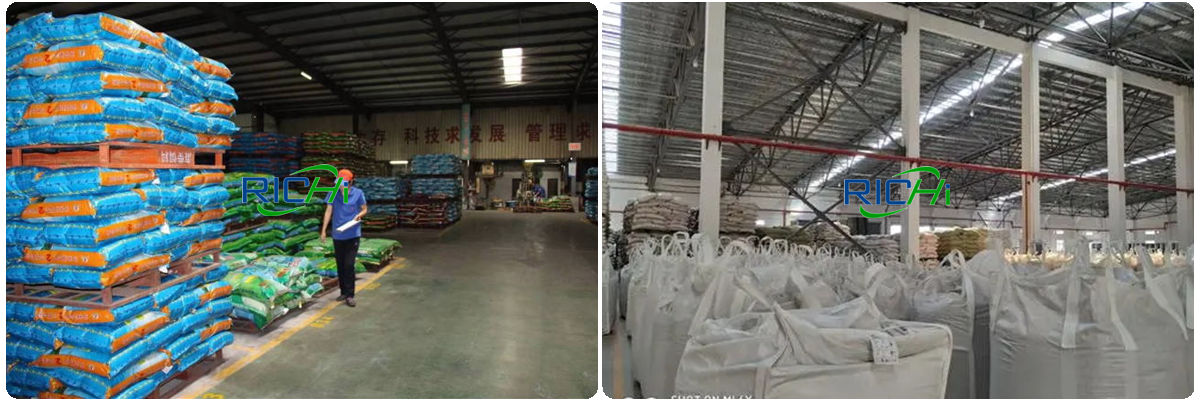

Storage

This best solution 25t/h aqua feed production factory project will set up 15 silos with a capacity of 3000t to store bulk raw materials, including 5 soybean meal silos, 5 wheat silos, and 5 rapeseed meal silos. Set up 5 vertical oil tanks of 60m3 and 1 vertical oil tank of 30m3 to store soybean oil.

Aqua feed mill process flow

This 25t/h new design high quality aqua feed mill project produces a total of three types of aquatic feeds. Due to the different raw materials and formulas, the types of aquatic products are different, so the aqua feed production process is also different. The following is a detailed description for every aqua feed mill process.

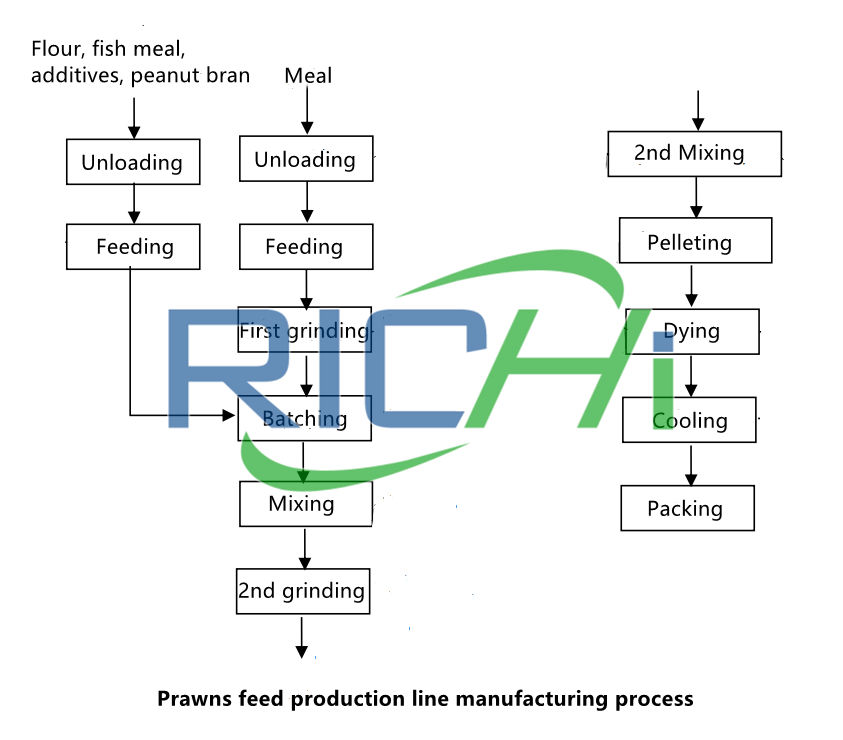

Shrimp feed feed production process

1. Unloading and feeding section
   The bagged raw materials such as flour, fish meal, additives, peanut bran, etc. are unloaded to the raw material workshop and manually put into the feeding port in the raw material workshop. Bulk raw materials such as soybean meal are unloaded to the bulk silo, and the bulk raw materials unloaded to the bulk silo are transported to the silo by the elevator. The raw materials in the bulk bin are directly fed into the crushing system through a closed pipeline.
2. Elementary smash section
   Pellets such as meal and peanut bran have a large particle size and need to be crushed.
3. Ingredients and mixing section
   According to the product formula requirements, the computer controls the quantitative weighing of various raw materials, and sends them to the mixer for mixing;
4. Fine crushing section
   The mixed raw materials are sent to the ultrafine pulverizer for fine pulverization;
5. Second level mixing section
   The finely pulverized raw materials are fed into the shrimp feed mixer and added to the grease for secondary mixing;
6. Conditioning and pelleting section
   The temperature of the raw material (10% water content) is adjusted by steam to reach 80～85℃, and the water content is 13%, and then granulated by the granulating machine;
7. Drying section
   The pellets just extruded from the shrimp feed pelletizer have a moisture content of up to 20% and a temperature of about 80°C. The pellets in this state are fragile and unsuitable for storage and transportation. Therefore, the pellets are dried by indirect heating with steam. , So that its moisture content will reach 13%, making the pellets harder and easier to store and transport;
8. Cooling section of section
   The dried pellets are cooled by a fan to close to room temperature, with a water content of 10%;

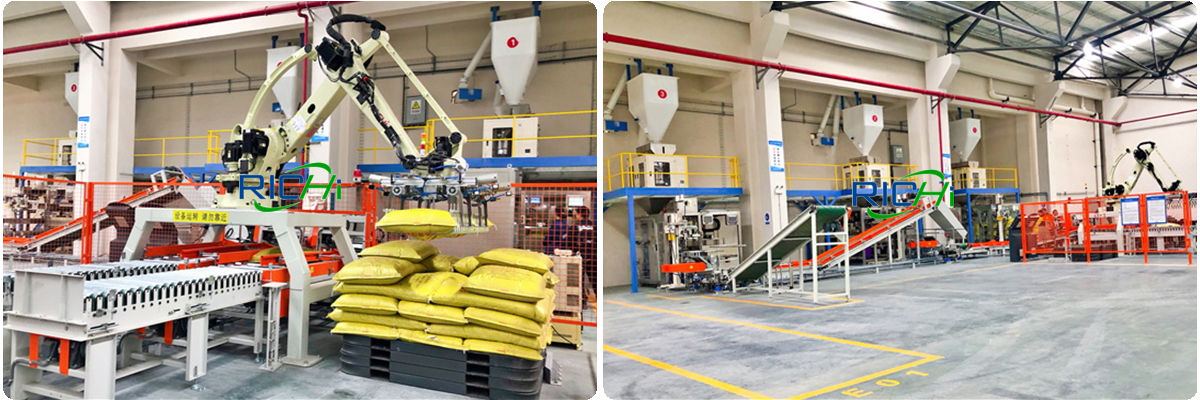

9. Classification and packaging section
   The cooled feed is screened, classified and packaged by a high square sieve, and the finished product is put into storage.

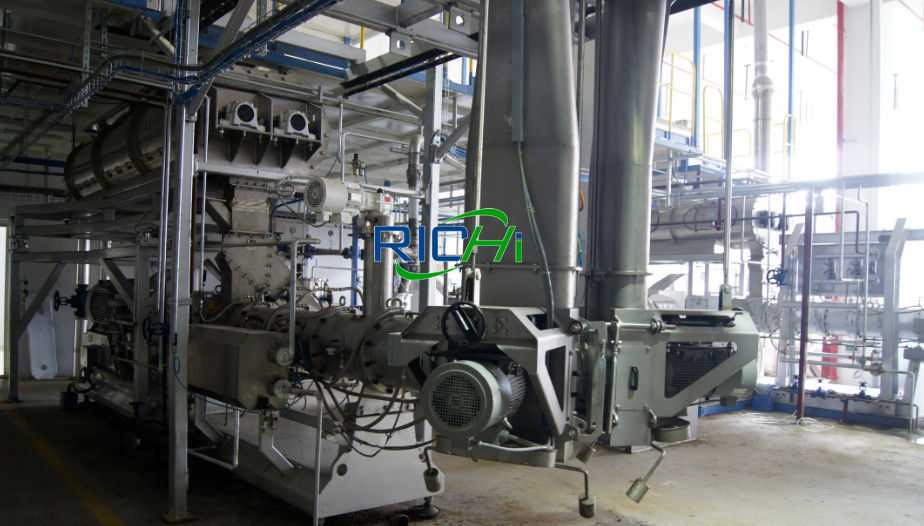

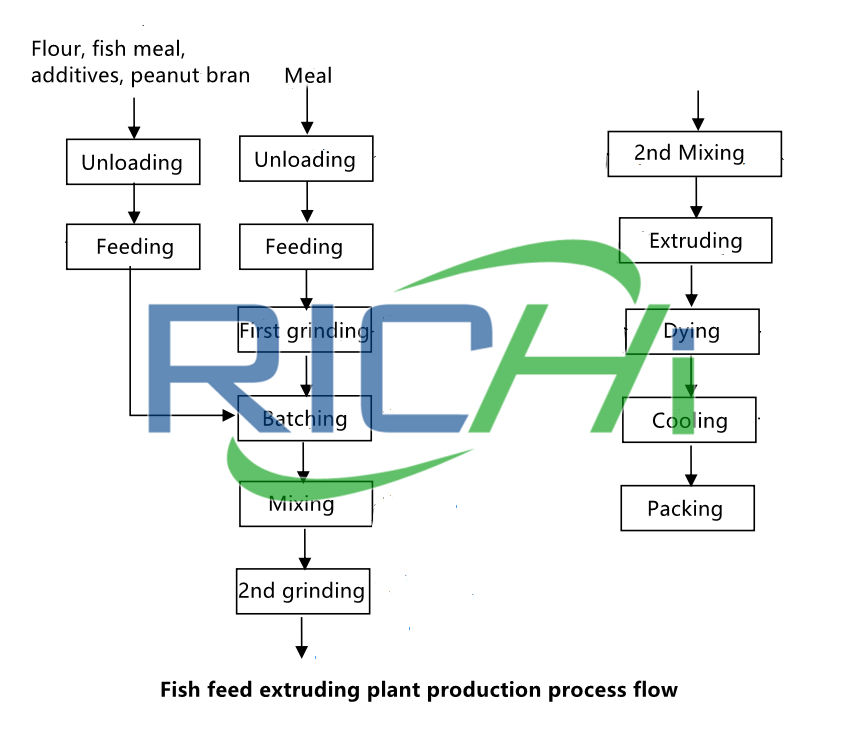

Fish feed extruding process

1. Unloading and feeding section
   The bagged raw materials such as flour, fish meal, additives, peanut bran, etc. are unloaded to the raw material workshop and manually put into the feeding port in the raw material workshop. Bulk raw materials such as soybean meal are unloaded to the bulk silo, and the bulk raw materials unloaded to the bulk silo are transported to the silo by the elevator. The raw materials in the bulk bin are directly fed into the crushing system through a closed pipeline;
2. Elementary smash section
   Raw materials such as meal and peanut bran have large particle sizes and need to be crushed;
3. Ingredients and mixing section
   According to the requirements of formula for fish feed production, the computer controls the quantitative weighing of various raw materials, and sends them to the mixer for mixing;
4. Fine crushing section
   The mixed raw materials are sent to the ultrafine pulverizer for fine pulverization;
5. Second level mixing section
   The finely pulverized raw materials are fed into the fish feed mixer and added to the grease for secondary mixing;
6. Conditioning and puffing section
   The temperature of the raw material (10% water content) is adjusted by steam to reach 80～85℃, and the water content is 13%, and then it is expanded by a fish feed extruder;
7. Drying section
   The feed just extruded from the fish food extruder has a moisture content of up to 20% and a temperature of about 80°C. The feed in this state is fragile and unsuitable for storage and transportation. Therefore, the pellets are dried by indirect heating with steam and air. The moisture content will reach 13%, making the pellets harder and easier to store and transport;
8. Cooling section
   The dried pellets are cooled by a fan to close to room temperature, with a water content of 10%;
9. Classification and packaging section
   The cooled feed is screened, classified and packaged by a high square sieve, and the finished product is put into storage.

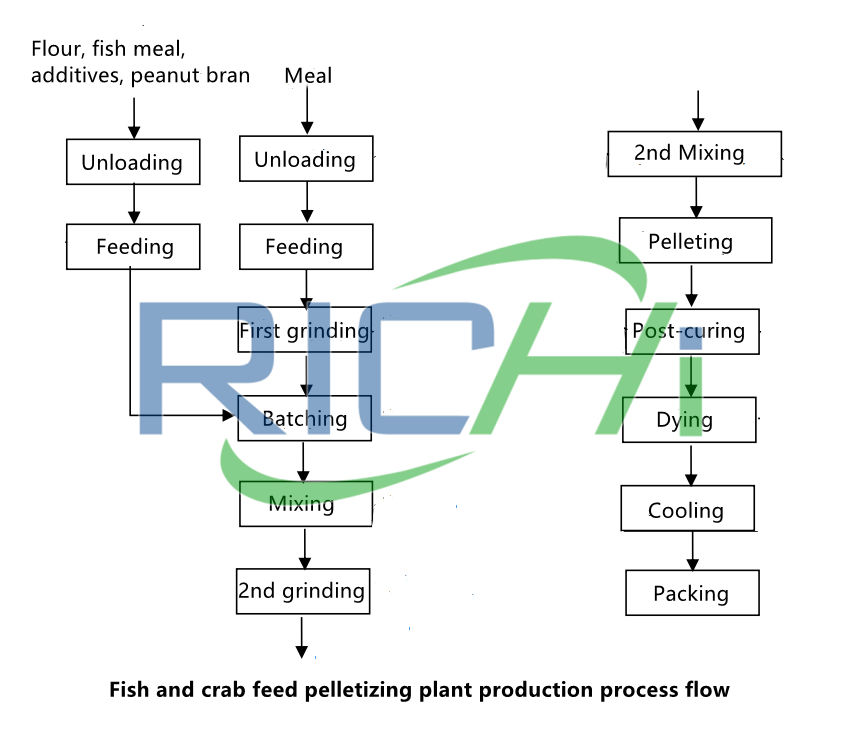

Fish feed pelleting process

1. Unloading and feeding section
   The bagged raw materials such as flour, fish meal, additives, peanut bran, etc. are unloaded to the raw material workshop, and manually put into the feeding port in the raw material workshop. Bulk raw materials such as soybean meal are unloaded to the bulk silo, and the bulk raw materials unloaded to the bulk silo are transported to the silo by the elevator. The raw materials in the bulk bin are directly fed into the crushing system through a closed pipeline;
2. Elementary smash section
   Crab fish feed making raw materials such as meal and peanut bran have large particle sizes and need to be crushed;
3. Ingredients and mixing section
   According to the product formula requirements, the computer controls the quantitative weighing of various raw materials, and sends them to the mixer for mixing;
4. Fine crushing section
   The mixed fish feed making raw materials are sent to the ultrafine pulverizer for fine pulverization;
5. Second level mixing section
   The finely pulverized fish feed production raw materials are fed into the mixer and added to the grease for secondary mixing;
6. Conditioning and granulating section
   The temperature of the raw material (10% water content) is adjusted to 80～85℃ and the water content is 13% by steam, and then granulated by the fish feed pelleting machine;
7. Post-curing section
   The pellets just extruded from the fish food pellet machine have a moisture content of up to 20% and a temperature of about 80°C. The pellets are insulated by steam (not in direct contact) in the curing machine to improve the maturation degree of the pellets;
8. Drying section
   The freshly matured feed from the maturing machine has a moisture content of up to 20% and a temperature of about 80°C. The feed in this state is fragile and is not suitable for storage and transportation. Therefore, the pellets are dried by indirect heating with steam and air. The moisture content is close to 13%, which makes the pellets hard and easy to store and transport;
9. Cooling section
   The dried pellets are cooled by a fan to close to room temperature, with a water content of 10%;
10. Classification and packaging section
    The cooled feed is screened, classified and packaged by a high square sieve, and the finished product is put into storage.
