Rwanda 1-2T/H Chicken Feed Pellet Plant

Customer visit of Rwanda 1-2t/h chicken use food mill animal feed pellet plant

This is a customized animal feed production line project for making 1-2 ton per hour chicken pellet feed. The configuration of this easy to operate animal feed production line is exactly the same as one of our 1-2t/h simple design animal feed pellet plant project in Tanzania, main animal feed production equipment of this 1-2 ton per hour poultry chicken feed pellet making plant project includes: 37KW feed grinder machine, 500kg/batch horizontal feed mixer, 22kw animal feed pelletizer, SKLN11*11 pellet cooling machine, vibrating shifter, etc. This is a small 1-2t/h bulk feed production line without animal feed packing machine.

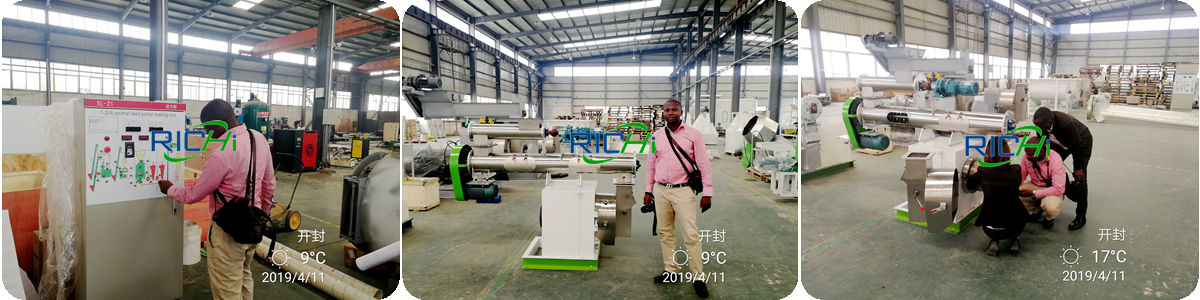

As shown in the picture, the Rwanda small animal feed pellet line project customer visited in April 2019

There was only half a year between the signing of the two widely used wholesale poultry feed production line projects, but this project only needs one type of ring die, because this customer from Rwanda did not need to produce cattle feed and goat feed, so he only needs to buy the chicken feed pellet milling machine ring die that can produce 2-4mm chicken feed.

Due to the limited budget of the Rwanda customer, the automation degree of this poultry farm use feed production line customized for the customer is not high. To a certain extent, it can be said to be a 1-2tph small manual feed production line. However, there is no shortage of personnel on the customer side, and the chicken pellet feed production line is used for its own farms and provides feed for surrounding farms, so the requirements for the automation of the 1-2t/h animal chicken poultry feed production line are not high.

This 1-2 tph chicken feed pellet line available raw materials including corn, sorghum, barley, wheat, white rice, rice bran, rice, meal, soybean meal, bran, oats, cassava meal, vegetable meal, bran bran, cake meal, green feed, block with feed, fish meal, calcium phosphate, stone powder, salt, vitamins, minerals,etc.

Process design of 1-2T/H Chicken Feed Pellet Plant in Rwanda

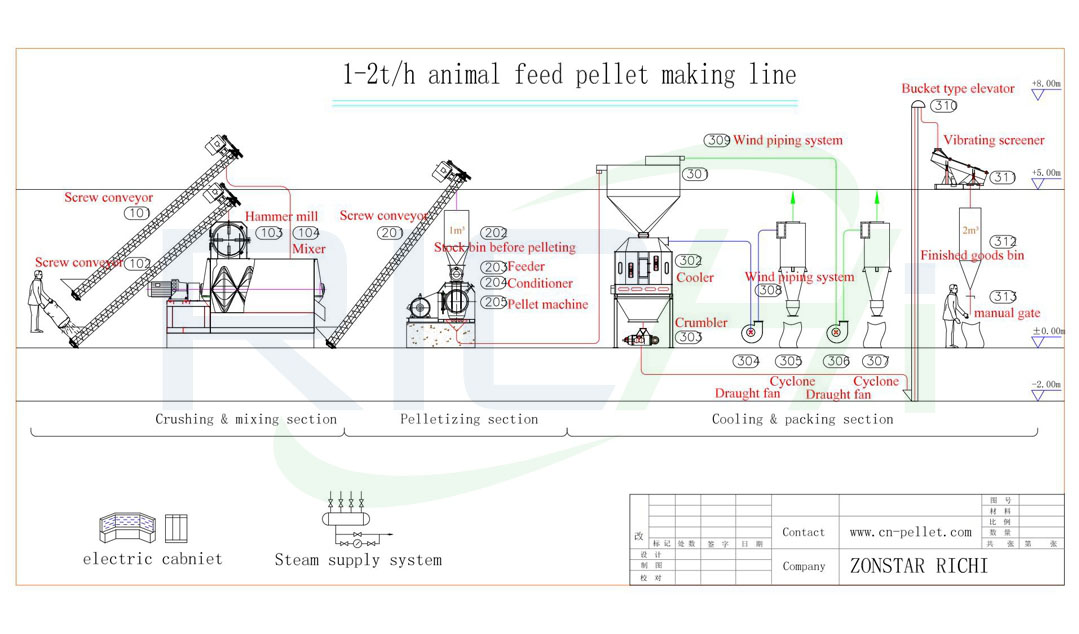

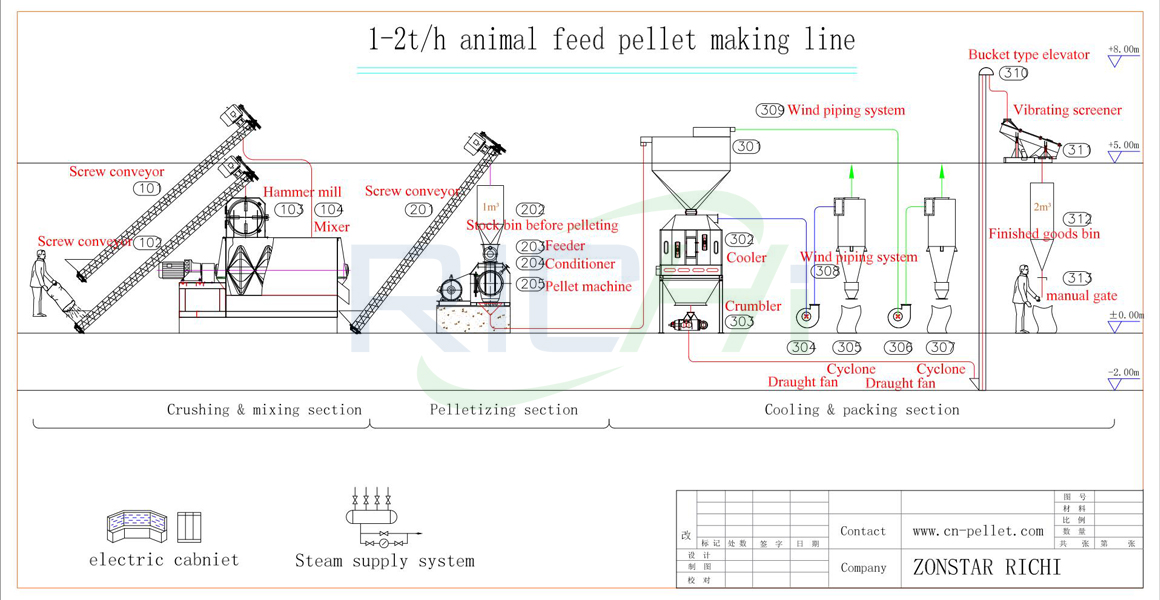

The main processing flow of this 1-2 t/h Chicken Feed Pellet Plant in Rwanda: raw material receiving and cleaning system, raw material crushing, batching & mixing , pelletizing, cooling, screening, packaging.

1. Raw Materials Crushing and Mixing Process
   Starting with raw material intake, the facility receives and stores grains, oilseeds, and by-products required for chicken feed production. The raw materials then undergo a grinding process to achieve the desired particle size. Next, they are thoroughly mixed to ensure a balanced distribution of nutrients.
2. Feed Pelleting Process
   Pelletizing is a crucial step where the mixed feed ingredients are compressed and shaped into pellets. This is achieved using a ring die chicken feed making machine equipped with a die and rollers, which apply heat and pressure to bind the ingredients together. After the pellets are formed, they are cooled down to room temperature using a pellet cooler, making them firm and stable.
3. Cooling Process
   The cooled chicken pellets are screened to remove fines and ensure consistent size, and then they are ready for packaging.
4. Packing Process
   The final step involves packaging the pellets in bags or other containers, making them convenient for storage, transportation, and sale.

This is also the general 1-2tph feed process, according to customer different feed types, different output configuration can be customized. (If you want to make powder feed, the manufacturing process only needs cleaning, crushing, mixing and packing section.)

Advantages of 1-2T/H Animal Chicken Feed Pellet Plant in Rwanda

1. Diverse pellet diameters: This Rwanda 1-2T/H Chicken Feed Pellet Plant produces pellets with a diameter ranging from 2 to 8 millimeters, allowing for flexible customization to meet the specific needs of various animals such as geese, ducks, chickens, rabbits, sheep, cattle, pigs, fish, and more.
2. Versatile application: This Rwanda 1-2T/H Chicken Feed Pellet Plant is suitable for producing feed pellets for a wide range of poultry, livestock, and animals. You can confidently produce feed for different species, ensuring that their nutritional requirements are met.
3. Low investment and operating costs: Our compact design minimizes space requirements and installation costs. With simple connections, the machine can be put into operation. Additionally, the continuous production allows for convenient operation. Only 1-2 workers are required during the production process, reducing labor costs and maximizing profits.

By choosing our 1-2t/h chicken feed pellet production line, you benefit from a customizable capacity, versatile pellet diameters, broad application possibilities, premium quality equipment, low investment and operating costs, easy installation and operation, and expert support.

RICHI Machinery is committed to helping you establish a successful and efficient animal feed production business. Contact us for more details and a detailed quotation.

Testing Video of 1-2T/H Chicken Feed Pellet Plant in Rwanda

If you are planning to start your animal feed pellet business or build your own chicken feed pellet plant in South Africa, Ghana, Zimbabwe, Angola, Senegal, Tanzania, Zambia , Kenya , Uganda , Mali or other countries, but don't know where to begin, what types of animal feed pellet plant and feed making machines to choose, how to design the feed pellet production process, contact RICHI now to get professional suggestion!

Problem in the during installation of Rwanda 1-2 t/h small capacity animal poulry feed production line

• This customer don't know how the motor should be connected.
• Don't know how to welding when they built the steel frame.
• Don't know how to install the cyclone.
• Put the vibrating screen in the opposite direction.
• Our after-sales technical team very positive to guidance them how to install on-line, and help them to solve these problem smoothly.

Our company provides drawing details of the Rwanda 1-2 t/h production line for chicken feed pellet：

• The  flow chart
• The installtion drawings
• The pit drawings
• The machines layout
• The operating instruction
