USA 10-15 T/H Fully Automatic Cattle Feed Plant For Hemp Grass Feed

Project construction content

The total area of the USA 100% pure grass pellet production line project is about 5426.69 square meters, and the main construction areas are processing area, raw material area, finished product area, office, staff dormitory and basic supporting facilities such as power supply, water supply and drainage.

This fully automatic cattle feed plant in USA project produces 30,000 tons of "non-grain type beef cattle special grass pellet feed" annually.

The overall layout of the project is based on the premise of fully meeting the production process of flow operation, combined with the site terrain, environmental conditions and transportation, and is arranged and reasonably laid out. The project composition is shown in the table below.

Main fully automatic cattle feed machines list

The following is a list of the main production equipment used in this fully automatic cattle feed plant in USA project:

Main raw and auxiliary materials and annual consumption

The consumption of grass raw materials and water and electricity for this fully automatic cattle feed plant in USA project is as follows:

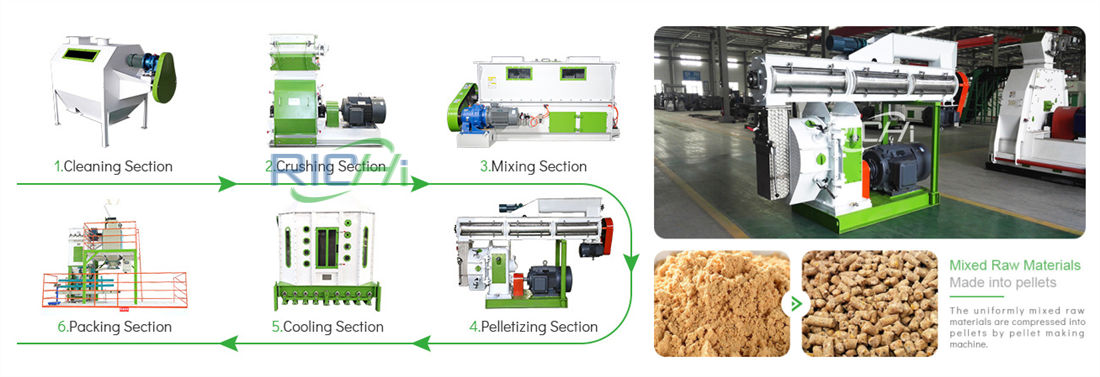

Cattle hemp grass feed pellet production Process design

Based on the raw materials and process requirements provided by customers, the process flow of the fully automatic cattle feed plant in USA customized by RICHI is as follows:

1. 1st Crushing:
   The bundled or very long grass raw materials are conveyed by belt conveyor (fully enclosed during the conveying process) to the baler or hay cutter (fully enclosed treatment) for preliminary crushing into smaller particles.
   Since the raw material particles are large and the particle size of the crushed materials is also large, less dust is generated. (Since the grass raw materials used by customers at different times are different, we have configured crushing equipment suitable for all types of grass for customers.)
2. Screening:
   The crushed materials are transported by belt conveyor to the screening machine (fully enclosed treatment) for screening. The impurities screened are mainly soil.
3. 2nd Crushing:
   The screened materials are transported by belt conveyor to the hammer mill crusher (fully enclosed treatment) for crushing. The conveying process is fully enclosed, and dust will be generated during the crushing process.
4. Granulation:

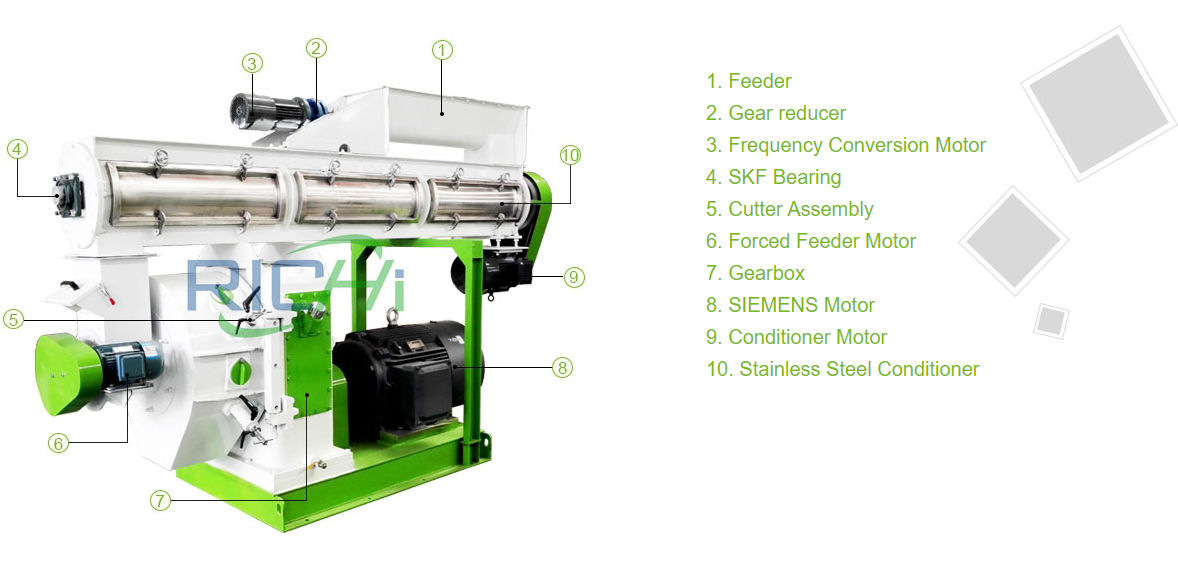

   The semi-finished products after crushing are transported to the granulation room through a closed auger for granulation. The main drive of the cattle feed grass pellet machine adopts high-efficiency belt drive. The motor drives the main shaft through the gear box.
   The main shaft drives the grinding disc to rotate. The pressure roller rotates around the pressure roller shaft. The main shaft rotates while driving the pressure roller to rotate.
   The raw materials are sent to the feeding room and all the materials fall on the ring die. The main shaft drives the grinding disc to rotate, and the pressure roller continuously rolls over the material layer to squeeze the material into the die hole.
   The material undergoes the molding and shape-keeping process in the die hole. After a certain period of time, it is extruded in a cylindrical state. The cutter cuts the material to form grass pellets.
5. Screening:
   The cattle grass feed pellets are screened out of defective products through a screening machine, and the defective products are returned to production.
6. Cooling:
   The temperature of the qualified cattle feed pellets formed by pressing is generally 50-60℃, and they need to be cooled before packaging.
7. Packaging:
   The cooled cattle grass feed products are packaged and stored.

Reasonableness of site selection

• The fully automatic cattle feed plant in USA project site is located in its cattle breeding farm, does not involve occupying basic farmland, and has good transportation, water supply, power supply and other conditions in the surrounding area.
• The current environmental quality of the USA cattle grass feed pellet plant project site meets the relevant functional requirements of the ambient air, water environment, and sound environment;
  After conscientiously implementing various pollution prevention and control measures and ecological protection measures, the impact of the project construction and operation on the surrounding environment is within the environmental tolerance range.
• The project is not within the scope of nature reserves, drinking water source protection areas, cultural relics protection units, and geological parks, and does not involve occupying basic farmland.

Public works

• Water supply:
  The water for the fully automatic cattle feed plant in USA project is supplied by the local water supply network.
• Drainage:
  The rainwater and sewage diversion system is adopted. The rainwater on the roof of the factory building is introduced into the steel pipe columns of the steel frame shed of the factory building through the eaves water collection tank, and the rainwater is introduced into the rainwater culvert in the factory area through the steel pipe, and the rainwater is discharged to the surface ditch outside the factory area. The domestic sewage of the project is treated in a septic tank and used for irrigation of surrounding crops.
• Power supply:
  The cattle feed production line project plans to set up a power distribution room and a 100kVA transformer to meet the power and lighting requirements for production.

Construction process flow of the project

The construction period of the fully automatic cattle feed plant in USA project mainly builds production workshops, office buildings, etc. The construction equipment used includes electric excavators, bulldozers, electric drills, transportation, loading and unloading equipment, etc.; construction is mainly carried out during the day.

Process description:

After the project obtains the construction permit, the construction personnel will enter the site and clear the site according to the design, construction plan and actual situation, including clearing weeds, shrubs and other plant residues in the site; then use the excavator to dig the foundation from top to bottom and compact the foundation.

Then carry out the building structure engineering, and then carry out greening, decoration, and installation of facilities and equipment at the same time. After the entire project is completed, it will be accepted and put into use.

Environmental protection measures

The environmental protection measures adopted by the fully automatic cattle feed plant in USA project are as follows:

Prospects of building cattle feed plant in United States to process grass feed

‌The prospects for processing grass feed in the United States are positive and have broad development space. ‌As a major livestock production country, the United States has a highly developed forage production and processing industry, which provides a solid material and technical guarantee for grass feed processing.

The annual output value of the US animal husbandry industry is more than 90 billion US dollars, and the annual output value of forage accounts for about 23% of the output value of animal husbandry, showing the importance and market size of grass feed processing.

The development characteristics and trends of the US grass feed processing industry are mainly reflected in the following aspects:

• First, the United States has advanced processing technology and equipment, which can efficiently process a large amount of raw materials.
• Secondly, the grass feed processing industry is closely integrated with animal husbandry to form a complete industrial chain.
• Finally, the government and the industry attach great importance to and support grass feed processing, which has promoted the sustainable development of the industry.

Faced with challenges such as high feed costs, the US grass feed processing industry has responded by optimizing production processes, adopting advanced management methods and technological innovation. For example, the application of the total mixed ration (TMR) program ensures that while ensuring nutritional quality, costs are reduced and economic benefits are improved.

In summary, the US grass feed processing industry has broad development prospects, thanks to its advanced processing technology, complete industrial chain, and support from the government and industry.

In the face of challenges, through technological innovation and management optimization, the US grass feed processing industry will continue to maintain its global leading position.

If you are interested in building a fully automatic cattle feed plant in USA, feel free to contact us to get design plans and equipment quotes!

The value of grass feed to cattle breeding

The value of grass feed to cattle breeding is mainly reflected in the following aspects:

• Providing rich nutrition:
  Grass feed is rich in nutrients such as protein, carbohydrates, cellulose, vitamins and minerals, which can meet the growth and development and energy needs of cattle. For example, alfalfa, ryegrass, elephant grass and other grasses are high in protein and cellulose, which helps cattle digestion and health.
• Promoting digestion and health:
  The high cellulose in grass feed helps promote the health of cattle's digestive system and reduce problems such as gastrointestinal inflammation and diarrhea. For example, ryegrass and elephant grass not only provide nutrition, but also improve cattle's immunity and disease resistance.
• ‌Reduce breeding costs‌:
  By planting high-yield and high-quality forage varieties, the yield and quality of forage can be increased, thereby reducing the price of forage and reducing breeding costs. In addition, grass feed can also drive the development of related industries, such as processing and transportation, further reducing breeding costs.
• ‌Promote ecological cycle‌:
  The waste generated by cattle breeding can be used as organic fertilizer through grass feed, improve soil fertility, promote crop growth, reduce environmental pollution, and achieve sustainable development of animal husbandry.
• ‌Improve meat quality and market competitiveness‌:
  High-quality grass feed is rich in nutrients, which helps cattle grow healthily, improves the quality and yield of meat, eggs, milk and other products, increases market competitiveness, and improves the economic benefits of farmers.

If you are also interested in developing a cattle feed plant to process grass feed and ruminant feed, feel free to contact us for professional production line customization services. We will provide you with a full set of process design, equipment layout, and full-plant functional area design services.
