3*25 T/H Animal Feed Mill in Vietnam

At present, Vietnam's feed industry has entered the industrial upgrading stage of expanding enterprise scale and improving product quality. The development of Vietnam's feed industry has shifted from a speed-oriented one to a combination of quality and speed, and the scale of production has continued to expand.

In this context, in order to seize market opportunities, the client company of this project invested $2.1 million in the construction project of a feed factory with an annual output of 400,000 tons. There are 71 employees in this project. The working day is about 300 days a year, with two shifts, each shift working about 8 hours.

The 3*25 t/h animal feed mill in Vietnam project covers an area of approximately 34967.8m2:

• Build 3 pig feed production lines with a production capacity of 340,000 tons/year;
• 1 Floating fish feed production line with a production capacity of 60,000 tons/year, which means the total production capacity is 400,000 tons.

It should be emphasized that RICHI Machinery is responsible for the entire factory layout design and process flow of this project. Among them, the animal feed mill machine for three pig feed production lines are all provided by RICHI, and the equipment for one puffed fish feed production line is provided by other manufacturers. So, for us, this is a 3*25 t/h pig feed plant project.

Construction content of 3*25 t/h animal feed mill in Vietnam

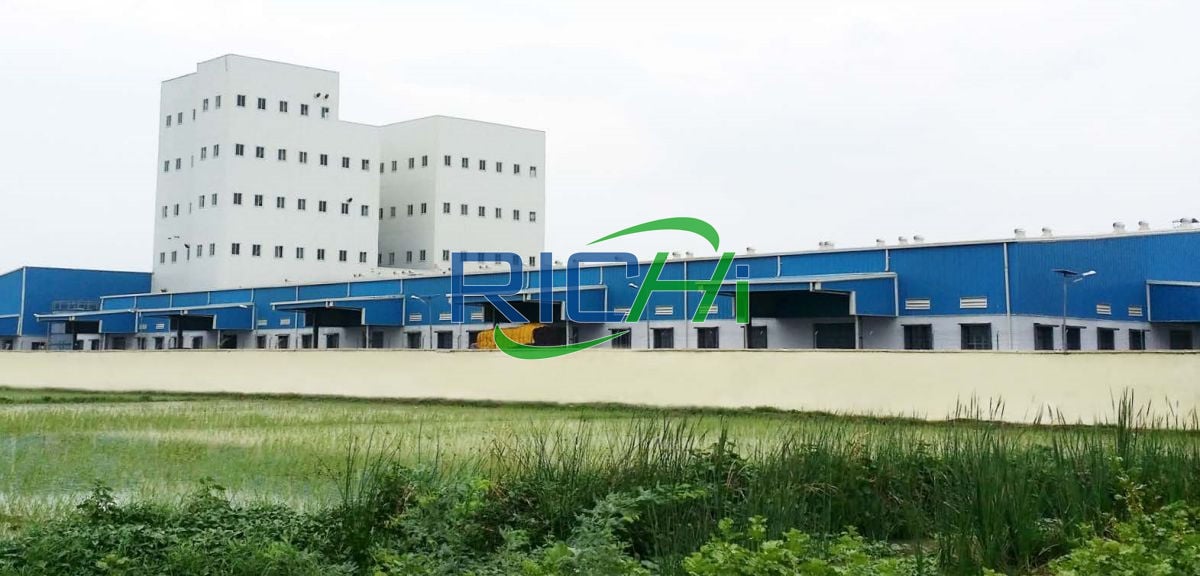

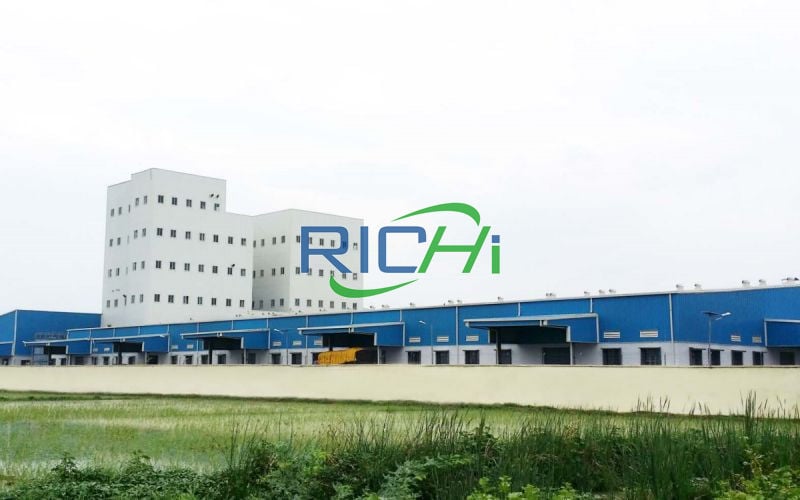

• Production workshop: 5 floors, brick-steel mixed structure, covering an area of 955.24m² and a building area of 4239m²; equipped with 3 pig feed production lines with a total production capacity of 340,000 tons/year; 1 fish feed pellet production line with a production capacity of 60,000 tons /year;
• Raw material warehouse: single-layer, brick-steel-concrete structure, covering an area of 3732m²
• Finished product warehouse: single-story, brick-steel-concrete structure, covering an area of 5058m²
• Vertical silo area: covering an area of 2380m²
• Office building: 3 floors, brick-concrete structure, covering an area of 180m², and a construction area of 540m²;
• Dormitory building: 5 floors, brick-concrete structure, covering an area of 292m², and a construction area of 1460m² (the first floor is a restaurant, and the 2nd to 5th floors are staff dormitories)

Product plan

The products of this 3*25 t/h animal feed mill in Vietnam project are pig feed and fish feed.

Among them, pig feed product types include suckling pig weaning feed, suckling pig nursery feed, piglet compound feed, medium pig compound feed, large pig compound feed, lactating sow feed, and pregnant sow feed; fish feed types include grass carp fingerling feed, compound feed for grass carp fattening, tilapia seed feed, compound feed for tilapia fattening, etc.

The specific production capacity of various feeds is shown in the table below:

Equipment to start 3*25 t/h animal feed mill in Vietnam

The main production equipment of the pig feed and fish feed production line of this project is shown in the table below.

Pig feed mill equipment list:

List of fish feed production line equipment

Raw and auxiliary material consumption of 3*25 t/h animal feed mill in Vietnam

Raw material consumption of pig feed production line:

Raw material consumption of fish feed production line:

Energy consumption

The following are the water, electricity and boiler fuel consumption for this 3*25 t/h animal feed mill in Vietnam project:

Layout of 3*25 t/h animal feed mill in Vietnam

• According to the characteristics of the natural topography and peripheral roads, the factory area of this 3*25 t/h animal feed production line in Vietnam project is arranged in a plane layout with the entrance and exit located in the south of the factory area and connected to the road outside the factory in the south.
• The raw material area, production area and finished product area are arranged sequentially from north to south in the factory.
• From a production perspective, the material flow is reasonable and the production operation is smooth, which is conducive to the organization and implementation of the production process.

Therefore, the layout of this 3*25 t/h animal feed mill in Vietnam project is reasonable.

Production process design of 3*25 t/h animal feed mill in Vietnam

Process flow of 3*25 t/h animal feed mill in Vietnam (pig feed production)

1. Receipt and cleaning of raw materials
   Bulk raw materials are transported into the factory by vehicles, and are automatically unloaded at the raw material discharge port. A waste gas collection and treatment system is installed above the discharge port, and a pulse dust collector is used to collect and recycle the raw material dust generated by the unloading and reuse it as raw materials.
   The raw materials enter the powder cleaning screen through the scraper conveyor and bucket elevator to remove large impurities, then enter the permanent magnet cylinder to remove iron impurities, and then directly enter the batching bin.
2. Crushing section
   The materials to be crushed (corn, soybean meal) are fed from the top feed port through the feeder matched with this machine, and enter the crushing chamber from the left or right through the feed guide plate. They are struck by the high-speed rotating hammer and rubbed by the sieve plate.
   Under the action, the materials are gradually crushed, and are discharged from the base outlet through the screen holes under the action of centrifugal force and air flow.
3. Ingredients and mixing
   Batching: After automatic PLC measurement, various materials are transported through the auger into the batching scale in proportion to ensure that the material weight tolerance is within the range allowed by the feed company.
   Mixing: After automatic batching, the materials enter the mixing system to fully mix various materials with a mixing uniformity of over 93%. This section is a key to ensure feed quality.
   This section of 3*25 t/h animal feed mill in Vietnam uses a high-efficiency double-shaft paddle mixer, and multiple liquid addition devices can be set up according to the needs of the formula. During the mixing process, the flow rate and optimal time of liquid addition are controlled by a microcomputer to ensure that the liquid raw materials and solid phase raw materials are fully mixed evenly.
   In order to reduce cross-contamination of feed raw materials and improve the working environment, a pulse bag dust filter is installed on the hand feeding device to return the dust of the added raw materials to the original process line. The mixed ultra-fine powdered feed enters the subsequent expansion and granulation process.
4. Granulation section
   Conditioning: After mixing, the powder material enters the modulator. The material is exposed to high humidity and high temperature in the steam. Generally, the temperature of the material in the modulator is about 60-85°C and the moisture content is about 15%, so that the material can be fully preheated and matured. The press the materials with pig feed pellet machine.
   Cooling: Use a counter-flow cooler to cool down the material to ensure that the feed temperature is 3-5°C higher than room temperature and the moisture content is below 12%.
5. Packaging and storage
   After cooling, the granules or crushed particles are screened out through a grading screen to remove a small amount of finely crushed particles and then enter the finished product warehouse. They are packaged and stored in the warehouse using automatic measurement.
6. Finished product
   Qualified product, ready for sale. YouTube

Process flow of 3*25 t/h animal feed mill in Vietnam (puffed fish feed production)

The fish feed production process flow is as follows:

1. Receipt and cleaning of raw materials
   Bulk corn raw materials are transported into the factory by vehicles, and are automatically unloaded at the raw material discharge port. A waste gas collection and treatment system is installed above the discharge port, and a pulse dust collector is used to collect and recycle the raw material dust generated by the unloading and reuse it as raw materials.
   The raw materials enter the powder cleaning screen through the screw conveyor and bucket elevator to remove large impurities, then enter the permanent magnet drum to remove iron impurities, and then directly enter the batching bin. In order to improve the working environment in the production workshop, the feeding port adopts an independent dust removal system.
2. Ingredients
   After automatic PLC measurement, various materials are transported through the auger into the batching scale in proportion to ensure that the material weight tolerance is within the range allowed by the company.
3. First mixing
   In the central control room, the computer batching system batches the ingredients according to the formula requirements and then mixes them once. Primary mixing is the preliminary mixing of materials.
4. Secondary crushing
   After primary mixing, it enters the secondary crushing section for secondary crushing, so that the particle size of the material reaches 90% and passes through a 60-mesh screen.
5. Secondary mixing
   After secondary crushing, it enters the secondary mixer to fully mix various materials, and the mixing uniformity exceeds 93%. This section is a key section to ensure feed quality. This section uses a high-efficiency double-shaft paddle mixer, and multiple liquid addition devices can be set up according to the needs of the formula.
   During the mixing process, the flow rate and optimal time of liquid addition are controlled by a microcomputer to ensure that the liquid raw materials and solid phase raw materials are fully mixed evenly.
   In order to reduce cross-contamination of feed raw materials and improve the working environment, an independent combination of feeding and pulse bag dust filters is set up for the trace element manual feeding device, so that the dust of the added raw materials can be returned to the original process line. The ultra-fine powdered feed that has been mixed twice enters the subsequent expansion and granulation process.
6. Tempering and extrusion
   Conditioning: After mixing, the powder material enters the modulator. The material is exposed to high humidity and high temperature in the steam. Generally, the temperature of the material in the modulator is about 100°C and the moisture content is about 25%, so that the material can be fully preheated and matured. Then pressed with the floating fish feed machine.
7. Drying
   The drying process is equipped with a gas-water separation device, so the exhaust gas will not appear white smoke.
8. Oil injection cooling
   Spraying an appropriate amount of soybean oil on the surface of expanded pellet feed can increase the energy level of the feed and improve the appearance quality of fish feed.

Prospects for building a 1-100 T/H animal feed mill in Vietnam

The Vietnam Compound Feed Market size is expected to grow from USD 11.54 billion in 2023 to USD 15.30 billion by 2028, at a CAGR of 5.80% during the forecast period (2023-2028).

Growing livestock share in agricultural output and accelerating disposable income of consumers are the significant factors driving the compound feed market in the country.

The increasing demand for meat and meat-based products is among the prime factors driving the demand for compound feed in the country.

The demand for higher-quality meat at lower prices has been witnessing an upward trend in Vietnam. Economic growth has boosted the consumers' purchasing power, most of which is directed to the consumption of livestock meat. For instance, per capita, meat consumption has increased from 49.9 kg in 2020 to 51.3 kg in 2021. The increase in meat consumption increases the demand for compound feed, contributing to market growth.

Along with this, the Vietnamese, agencies, and ministries have introduced several schemes in the past, such as the livestock development strategy, to augment the government livestock sector, which resulted in an increment in production and meat consumption.

According to Law on Animal Husbandry, there is a need to apply science and technology in livestock production to improve the productivity, quality, efficiency, and competitiveness of the animal husbandry sector, to ensure food safety, epidemic safety, environmental protection, and to cope with climate changes.

Moreover, Vietnam's import demand for corn and grain by-products for animal feed has been growing. Corn account for the majority, while the rest will be wheat and barley, reflecting the trends of the meat industry. Therefore, the favorable government policies for animal husbandry and the demand for meat strengthen the compound feed market in the country during the forecast period.

If you are interested in investing in and building an animal feed mill in Vietnam, contact RICHI Machinery to obtain professional feed mill technical solutions and full animal feed mill equipment quotations, civil engineering plans, full plant layout, videos and pictures of past projects!
