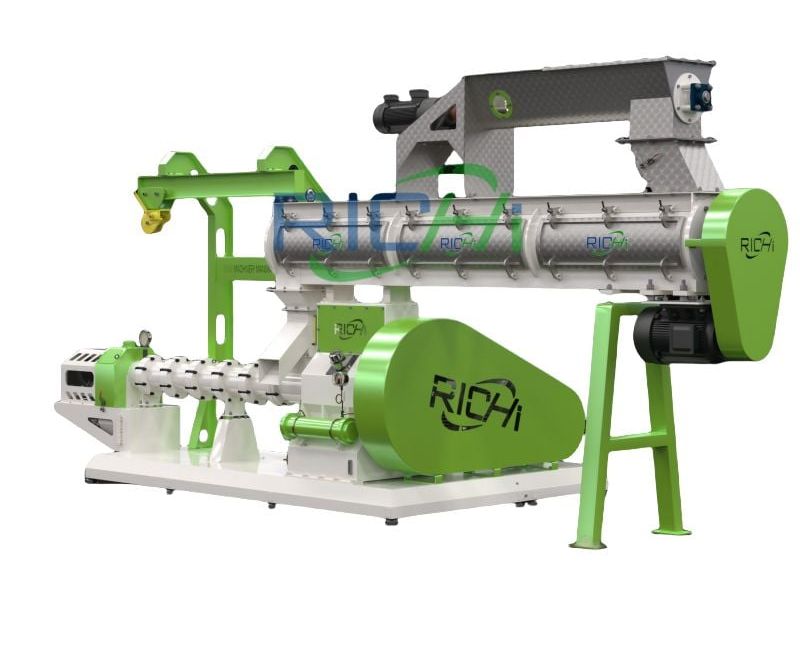

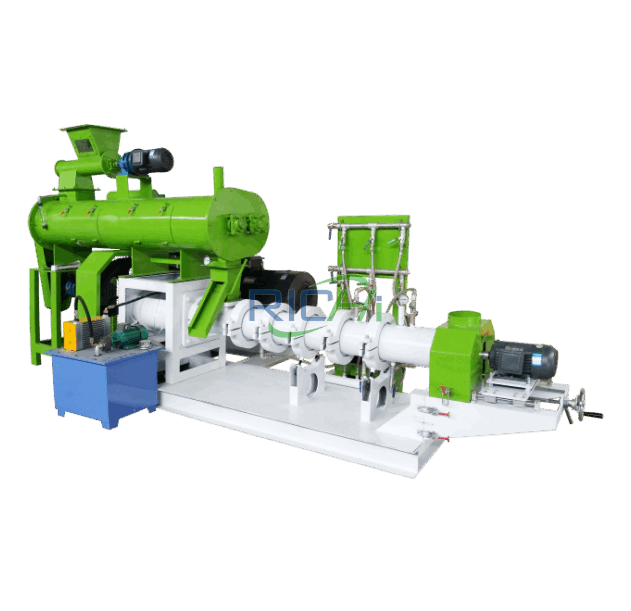

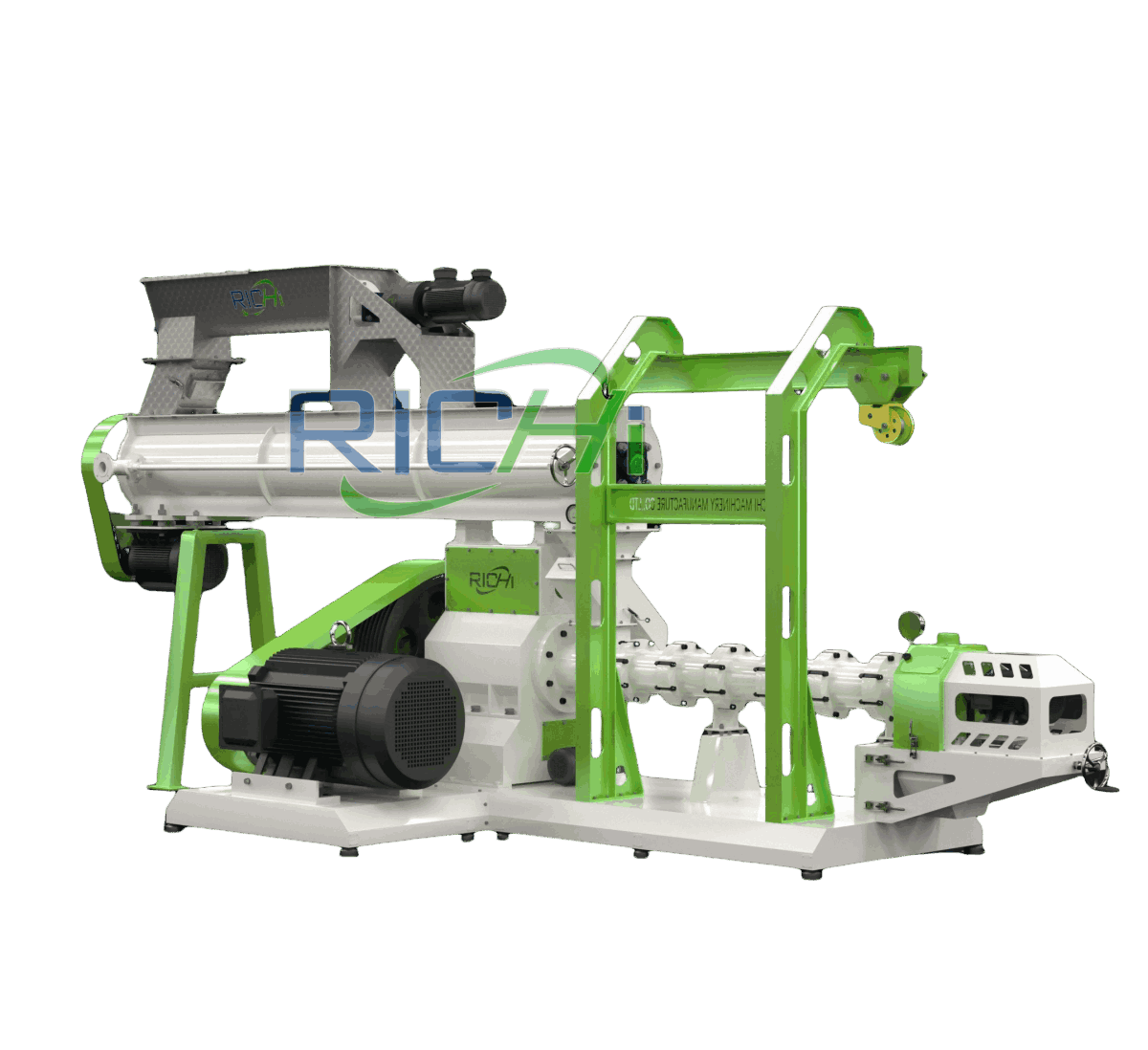

Wet type fish feed extruder machine is suited for processing a wide selection of recipes and raw materials to make nutritious feed for many aquatic species. Our wet fish feed extrusion systems guarantee product integrity with high value processes through controlled mixing, homogeneous melt, excellent starch gelatinization and precision size calibration.
RICHI MACHINERY
Since introduced in the 1990s, RICHI wet type fish feed extruders have been used worldwide for the production of premium quality feed and food. The unique design of the screw and barrel liner can generate a higher degree of cooking. With the incorporation of numerous innovative designs, high-quality materials, and precise manufacturing processes, RICHI wet fish feed extruders can perform energy-efficient extrusion cooking.
Aquafeed is as the name relates to it, feed for animals who are living in the water, just like fish. The food contains balanced nutrition and is a modern part of the aquaculture. The feeds, in the form of pellets or granulates, provide the nutrition in a concentrated and stable form. This enables to feed the fish efficiently and thus maximize their growth. Our team of experts can truly help you to find the right solution, with our extruders and fish feed production line systems.
0.5-1 T/H
Capacity
37-75 KW
power
Extrusion
technology
0.5-50mm
pellet size
RICHI MACHINERY

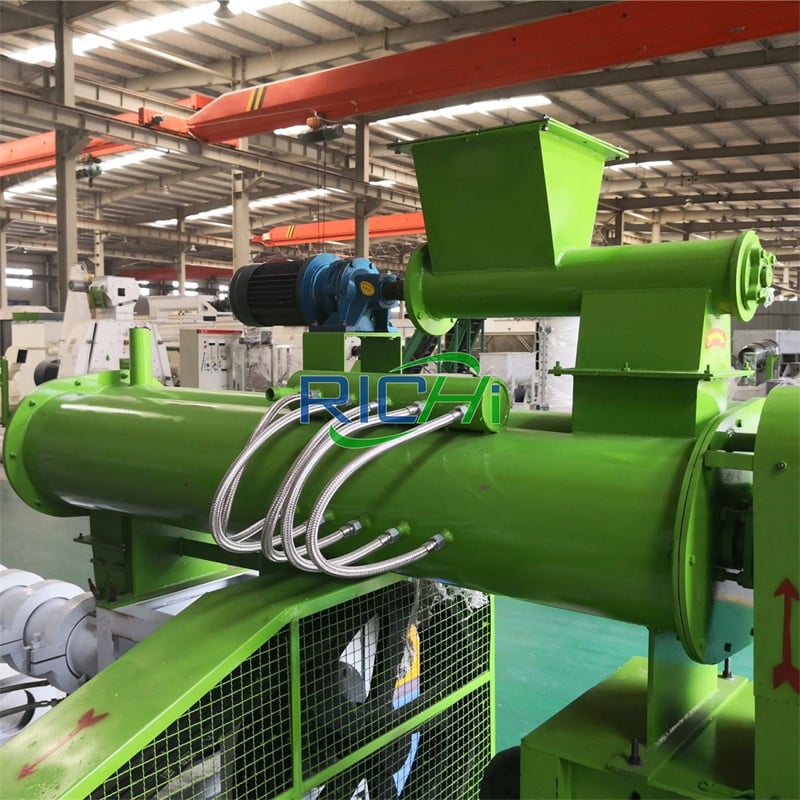

RICHI wet type fish feed extruder machine efficiently produce high-energy feed with a precise balance of proteins, oils and carbohydrates, processed for optimum digestibility. Extruded feeds are produced to match fish feeding habits (floating, neutral buoyancy or sinking) to energize feeding and reduce waste. We offer an output range from 500kg/h to over 12 t/h of finished coated products!
Our wet extruders are divided into two types: single screw extruders and twin screw extruders. The former is suitable for small production scale, and the latter is suitable for fish feed mill plants with more than 1 ton. On this page, you can find details about single screw wet extruders. If you want to know more about our twin screw extruders, you can enter the relevant page to view details.
application:
Extruded Fish Feed
Extruded Pet Food
Extruded Shrimp Feed
Extruded Livestock Feed & Poultry Feed
Applicable customers:
Aqua Feed Plant
Aquaculture Farm
Small Animal Feed Mills
Investor
Wet type fish feed extruder is mainly used for processing floating, slow sinking, and sinking extruded aqua feed for 1.0 to 30 mm extrudates. Special processing for small pellets with a nice appearance. It is also suitable for processing pet food, other aquatic feed, livestock and poultry feed and puffed grains.
RICHI MACHINERY

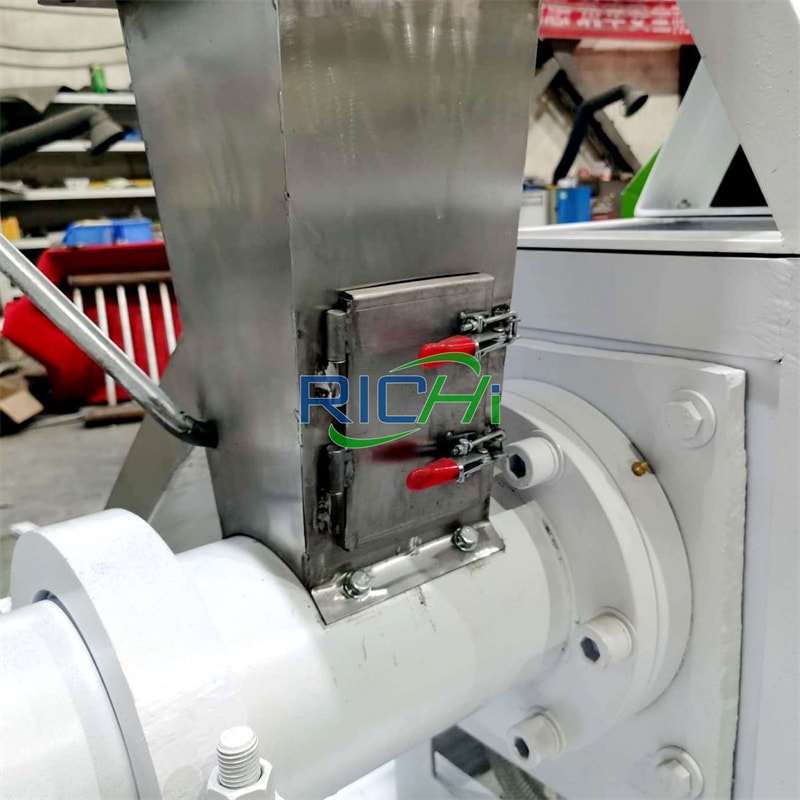

Today, RICHI offers industry-leading wet type fish feed extruder machine. We utilize the profile of screw and liner, direct steam injection into the extrusion barrel, and heating/cooling jacket to generate the most suitable cooking of the raw material. In aqua feed and pet food production, the addition of a pre-conditioning system can help increase the pre-cooking and hydrating process to manufacture premium feed with high water stability.
Novel and unique design, simple structure, easy to assemble and disassemble, easy to operate
Gentle handling for maximum extruded fish feed product quality.
High wear-resistant parts are made from special heat-treated alloy steel.
Segmented screw design can be configured to attain different production characteristics.

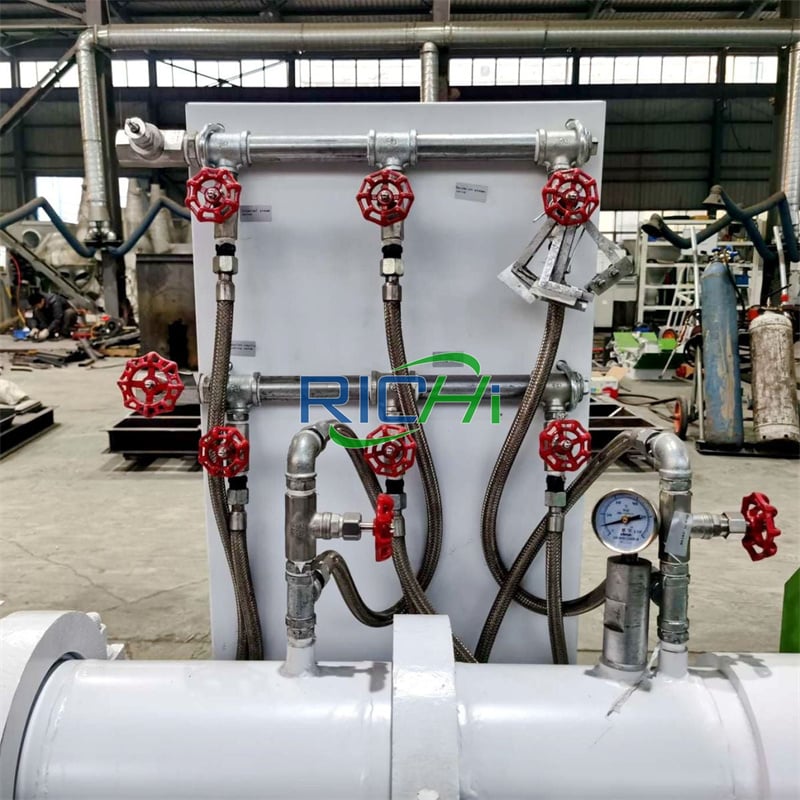

Multiple direct injection ports for water and steam to control extrusion temperatures.
Computerized PLC control for easy operation. With optional on-site control.
Process management from raw material feeding, steam and water addition, barrel extrusion temperature, and the control system.
Controlled and full utilization of the specific mechanical energy and specific thermal energy, allowing precise control of the extrusion process for uniform expansion and sufficient cooking.
It can produce sinking aquatic products, poultry and livestock pellet feed, which is beneficial to animal digestion and absorption and improves the digestibility and utilization rate of nutrients.
The material in the extruding chamber of the fish feed making machine is subject to high pressure and temperature, making starches gelatinize and denaturing the protein, so that to improve the water stability and digestibility of fish feed pellet. Meanwhile salmonella and other harmful bacterium are killed in the process.
The raw materials is fully mixed and extruded in the wet fish feed extruder, of which nutritional performance is improved by adding various nutrition. When the material goes out from the outlet of the fish feed extruder, the pressure is released suddenly and the steam blows off rapidly. Then the pellet is formed. A cutting device on the fish food extruder machine will cut the pellets into required length.
At present, the single screw wet type fish feed extruder models we can provide are mainly DSP-90B and DSP-135B. If your production scale is less than 500kg/h or higher than 1t/h, we also have suitable equipment models to provide. Please contact us directly online to get equipment quotes and videos!
| Model | DSP-90B | DSP-135B |
|---|---|---|
| Main motor power (kw) | 37 | 75 |
| Feeding power (kw) | 7.5 | 7.5 |
| Conditioning power (kw) | 1.1 | 2.2 |
| Cutting power (kw) | 1.1 | 1.5 |
| Screw diameter (mm) | 90 | 135 |
| Machine size (mm) | 2600*1600*1900 | 3750*1980*1950 |
| Output (T/H) | 0.5-0.6 | 0.8-1.0 |
High Output
Stable Operation
High Efficiency
Long Trouble-Free Time
Energy Saving
The aqua feed processing industry uses raw materials with poor and strongly varying flow characteristics. To guarantee the quality of the end product while avoiding production delays, fast and accurate dosing without interruptions is necessary for the aqua feed processing industry. The use of expensive components requires outstanding accuracy, also because even a small deviation may have a large impact on the end product.
Thanks to many years of experience in the feed processing industry, RICHI MACHINERY has the right knowledge and expertise. Our aqua feed machine and fish feed extrusion solutions minimize contamination and ensure that error-prone and labor-intensive manual additions are a thing of the past.
The application of wet type fish feed extruder machine is an important milestone in the history of fish feed production industry development. It not only improves the quality of aquatic feed and feed remuneration, but also provides a new idea for the utilization of feed resources and the improvement of water quality.

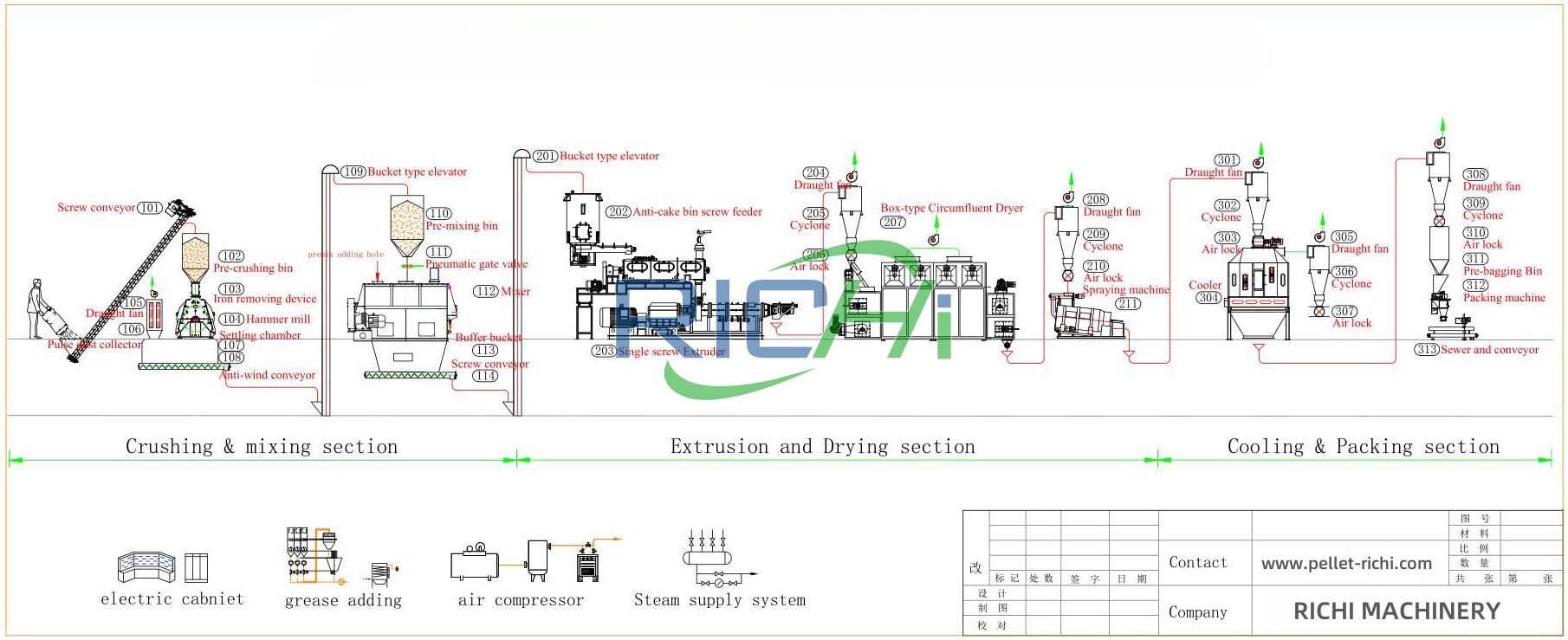

The process flow of fish feed production line mainly includes raw material preparation, mixing processing, granulation molding, drying and baking, cooling and packaging, etc. Scientific and reasonable process flow design can not only improve the efficiency and quality of fish feed production, but also reduce production costs and enhance the competitiveness of enterprises. We know everything there is to know about products in the aquafeed sector. The knowledge and the technical know-how we have, combined with our smartest way of working, enables us to find for every costumer the right solution for their specific production process.
1
Receiving is the beginning of feed production. In the production of animal feed or similar products, the receiving area covers the activities of various purchased materials used directly or indirectly. Receiving equipment is used before the materials are stored in bulk in silos or warehouses, including weighing systems, inspection instruments, unloading systems, etc.
2
To ensure continuous production, a large amount of raw materials such as corn, wheat and soybean meal need to be stored during feed processing. For small-scale fish feed production, generally only small silos are needed or no silos are purchased; for large-scale fish feed production line construction, a silo system is generally required.
3
Bulk grain received from farms usually includes grain by-products and impurities such as straw, stones, metal, wood chips and powder. Cleaning operations are to remove these impurities with equipment and systems such as magnets, screens, dust collectors, etc. to ensure good quality of stored grain and protect the machinery in subsequent processing steps.
4
Crushing is the operation of reducing feed particle size and increasing its specific surface area, which can enhance animal digestibility, improve feed utilization, and improve processing quality and work efficiency in subsequent process steps. In standard fish feed production line, fine or ultra-fine grinding of raw materials is sometimes required according to customer needs.
5
The first batching process in aquafeed production is the combination of bulk dry and liquid raw materials into a value-added, uniformly proportioned mixture. Sometimes a second batching process is required, where the second batching is the scaling, addition and mixing of dry and/or liquid trace elements and premixes to form a complete feed mixture.
6
Mixing is a key process in compound feed production. It combines ingredients with unique properties into a formulated diet under the action of processing equipment to meet all the nutritional requirements of the animal and add value to the blended commodity. Sometimes a second batching process is required.
7

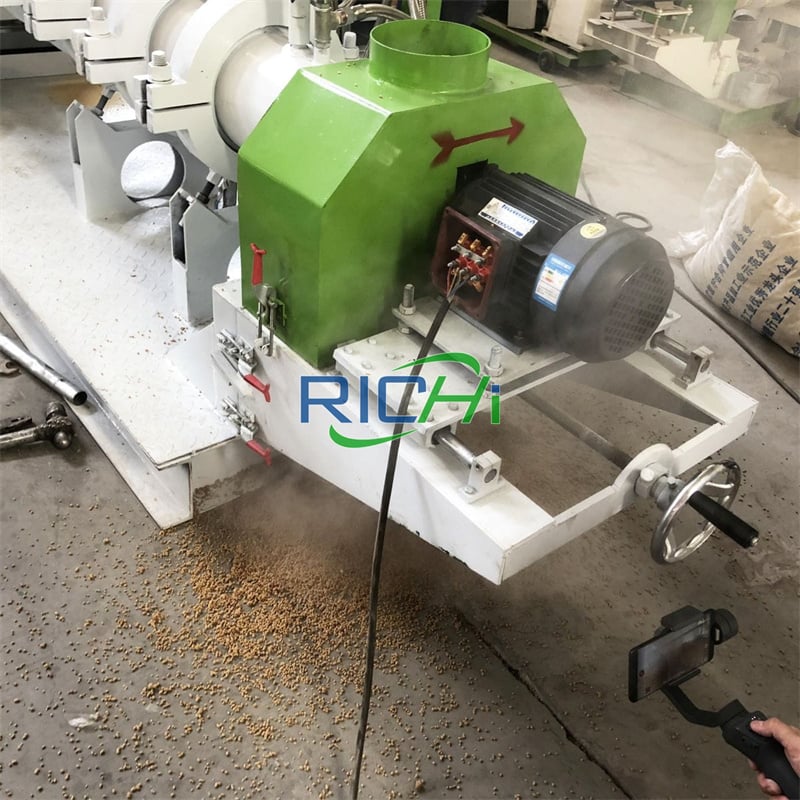

Wet type fish feed extruder machines are used in this section. Extrusion refers to the process in which moist, swellable starch or protein materials are plasticized in a tube by the combined effects of moisture, pressure, heat and mechanics. This results in an increase in the temperature of the product in the tube, gelatinization of starch components, denaturation of proteins, stretching or reorganization of tactile components, and exothermic expansion of the extrudate.
8
The main purpose of drying is to reduce the moisture content in the product, thereby improving the stability and shelf life of aquatic products, reducing product weight and improving transportation conditions. In the feed pelleting process, cooling of feed pellets is essential. When leaving the pelletizer, the feed pellets are very hot, soft and rich in moisture. The cooling process cools them to 3℃-5℃ slightly above room temperature and reduces their moisture content to a safe standard (≤12.5%) for easy transportation and storage.
9

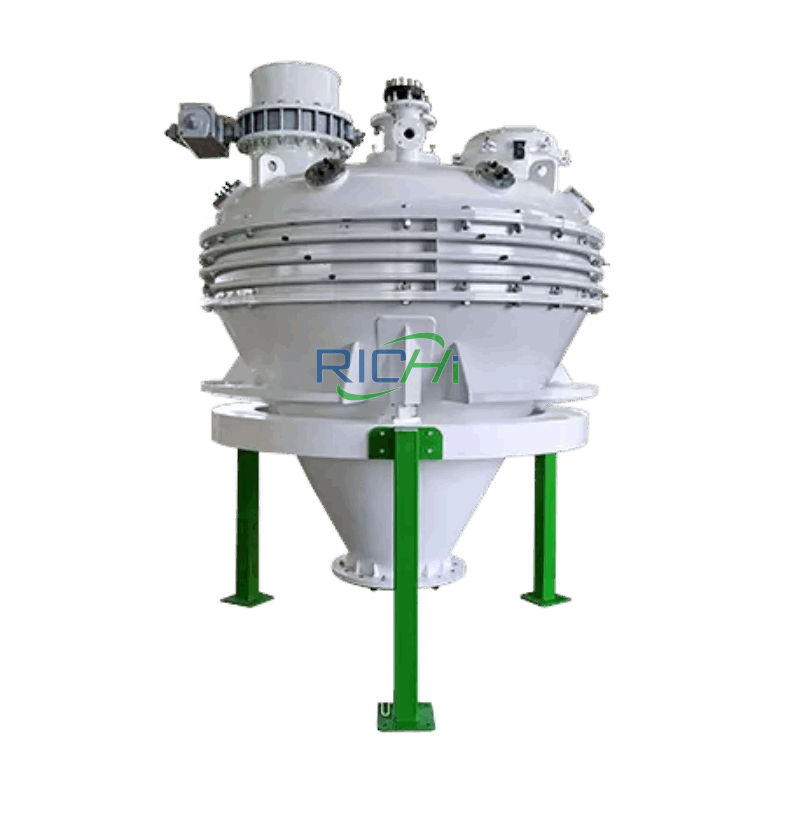

Spraying or coating is an industrial process. After the fish feed pellets are dried and screened, and before the feed pellets are cooled, liquids or powders such as oil/fat, pigments, spices, functional improvers or vitamins are applied to the surface of the fish feed pellets to improve the taste and acceptability of the fish feed pellets.
10
Cooling of feed pellets is essential during the feed pelleting process. When leaving the pelletizer, the feed pellets are very hot, soft and rich in moisture. The cooling process cools them to 3℃-5℃ slightly above room temperature and reduces their moisture content to safe standards (≤12.5%) for easy transportation and storage.
11
After cooling and drying, the extruded fish feed is screened to remove fine particles and overflows to make the pellets reach the qualified size. Qualified fish feed pellets enter the packaging section, and unqualified products will be re-crushed, mixed, and extruded.
12
The packaging operation starts when the finished feed enters the supply box above the packager and ends when the bagged feed is placed in the warehouse. For fish farms that use fish feed for their own use, there is no need to configure a packaging system.

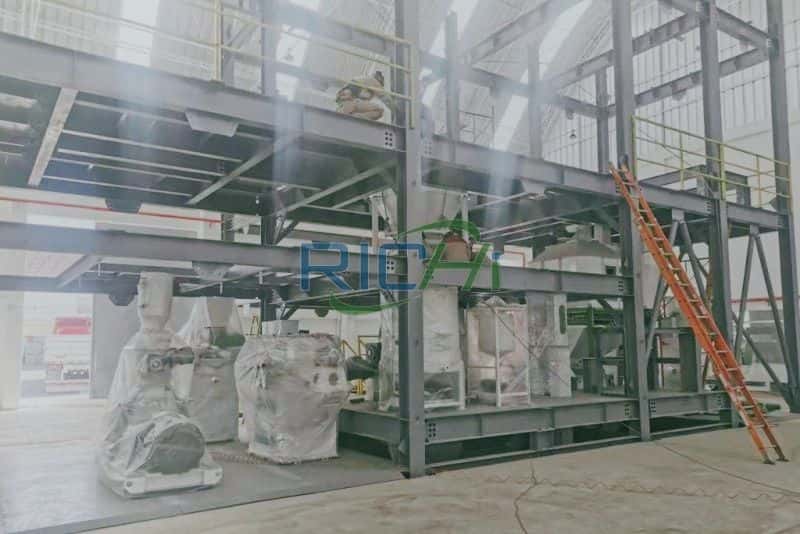

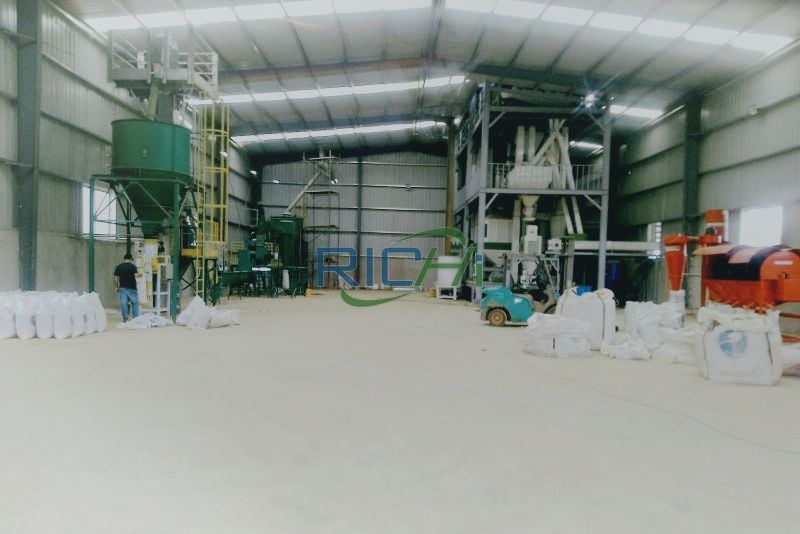

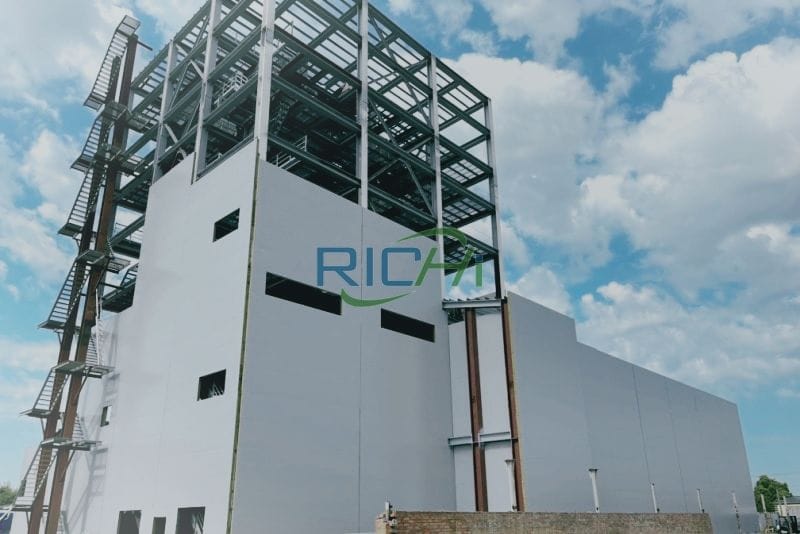

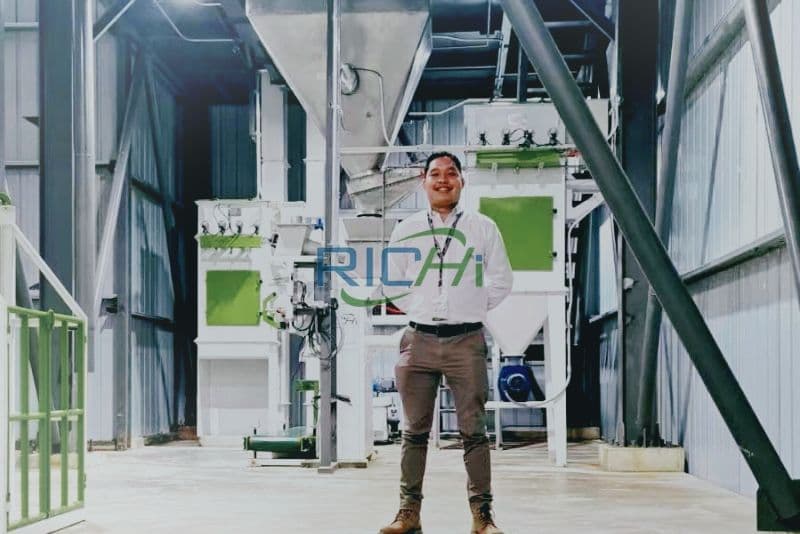

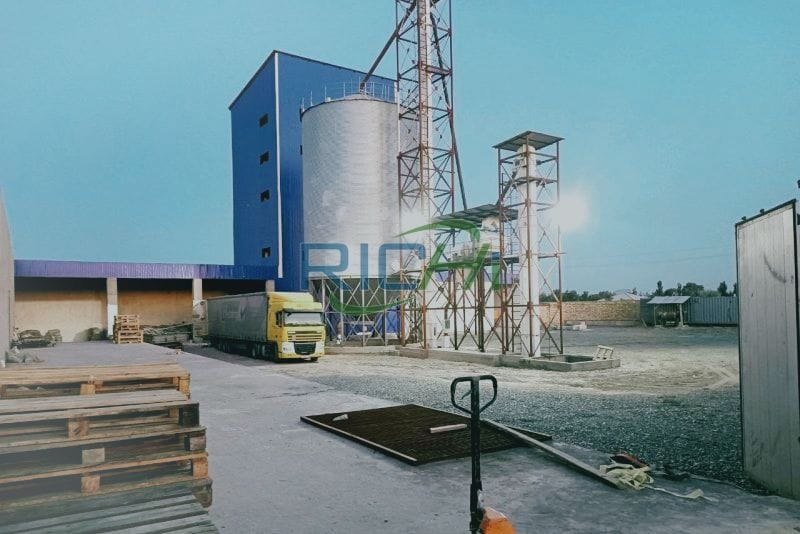

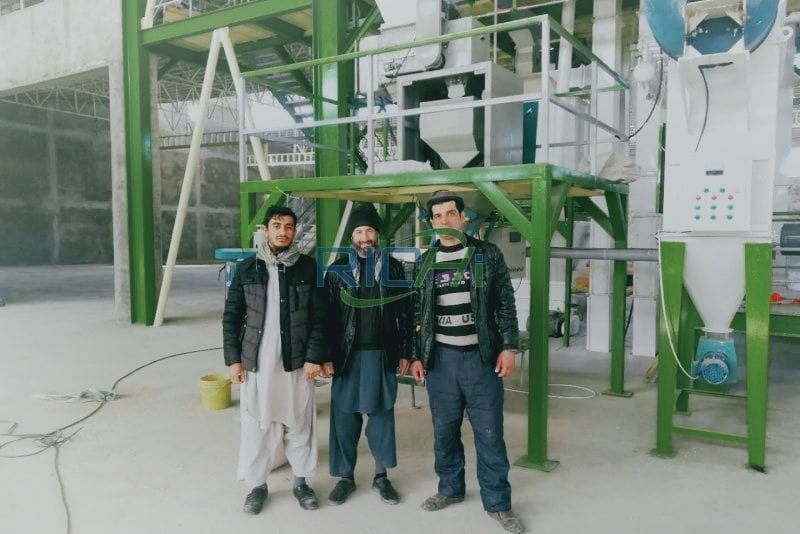

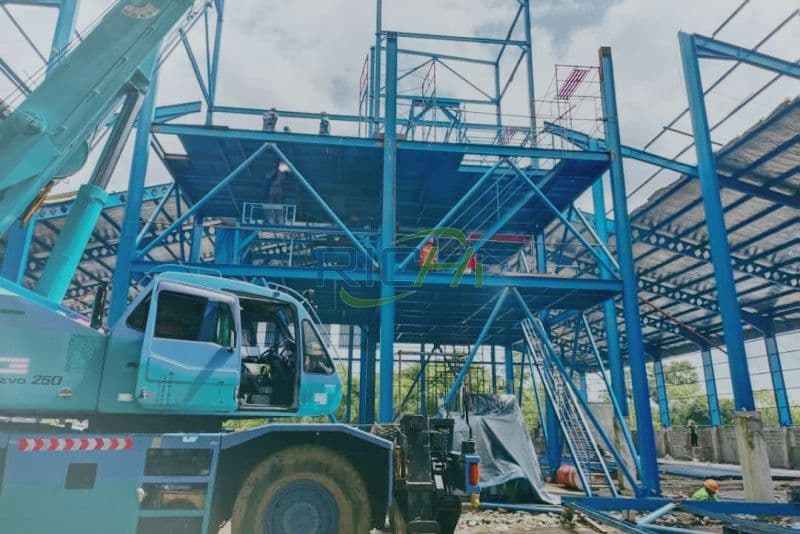

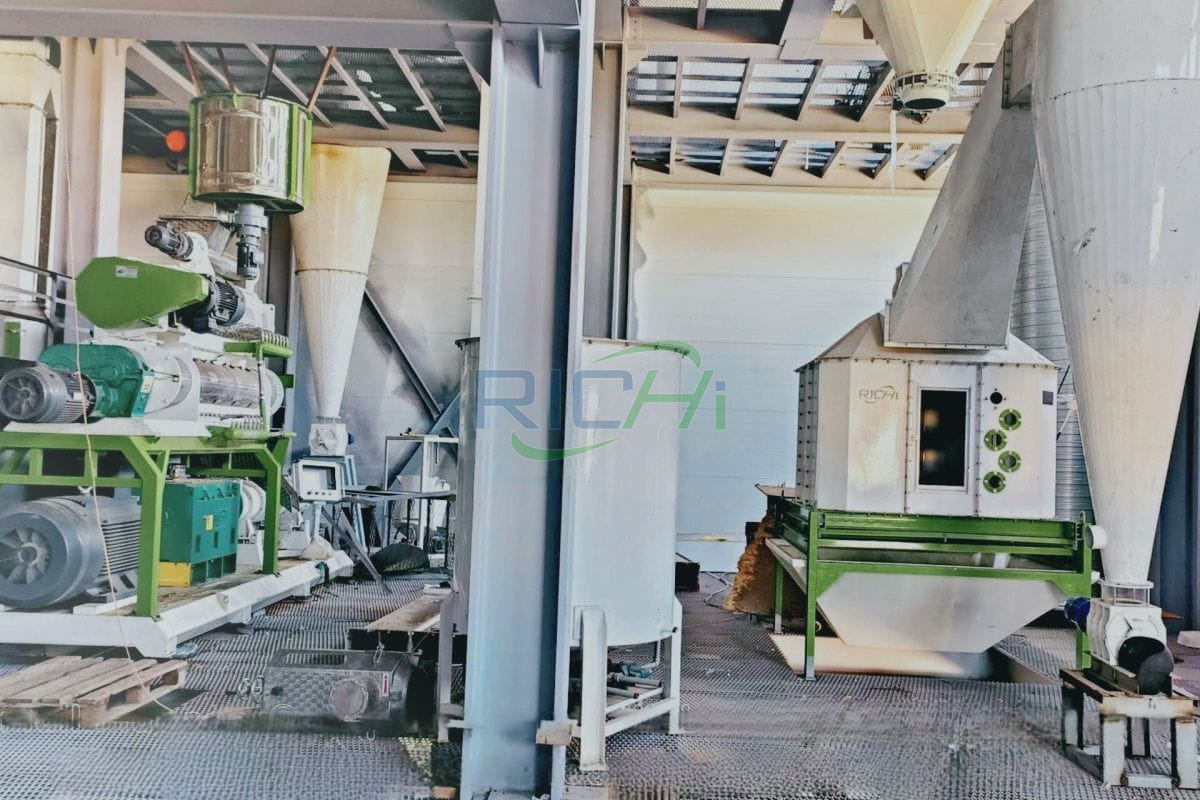

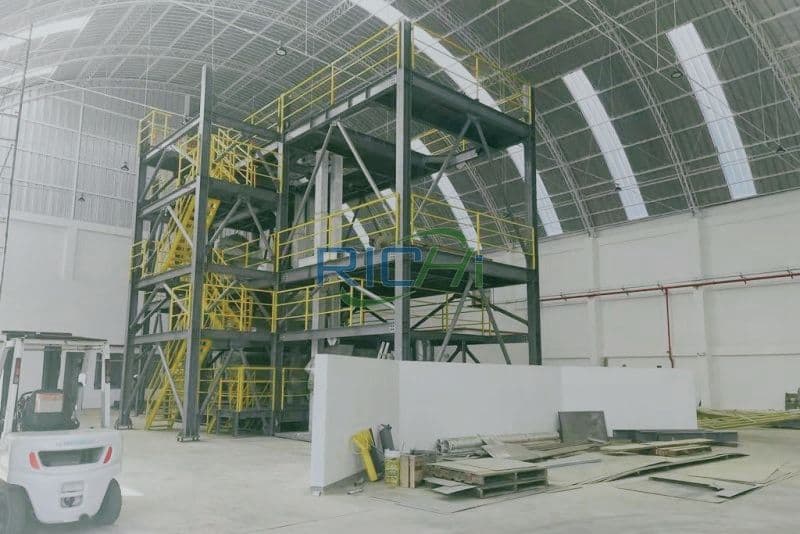

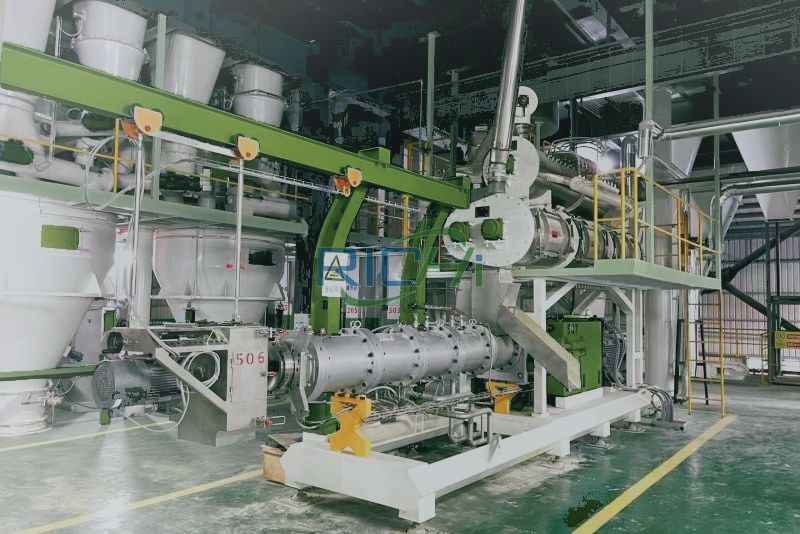

We have worked on multiple fish feed mill projects involving aquafeed, and have always achieved the results that our costumers expected. We are offering a wide range of fish feed specific processing equipment. As example the wet extruder, belt dryer, fish feed grinder, ultrafine grinder, fish feed mixer, fish feed cooler, sieving machine, feed packaging machine and many more.
RICHI MACHINERY has developed over the years many successful projects for the aquafeed industry. These machines are today better than yesterday. That's how we work. Below you can find some examples of fish feed making machines specifically designed for the processing of aqua fish feed.
We will provide you with detailed CAD design, you can get your questions answered and a plan in place with engineered CAD drawings.
The concept CAD file is required to give you an accurate quote on the equipment required.
To start any project properly we need to determine your fish feed production project goals, type of material you will be processing and the limitations of physical structures such as buildings, lot size, electrics, etc.
Once we have determined this information, we will be able to put together a rudimentary line process flow which we can use to provide you with a budgetary quote. If the budget quote is accepted, then we create a conceptual design CAD file. The concept CAD file is required to give you an accurate quote on the equipment required.
Our team will design, install, train and follow-up to make sure you have a seamless transition.
Our team really is a one-stop-shop. We will help you from product formulation, to sampling, to manufacturing the perfect fish feed processing line to create your pellet on-site and be in full production. If we don't do it, we know the right person for the job.
Used for fine grinding or secondary grinding of fish feed raw materials.
Get a Quote
Used to transport materials between various sections in the fish feed processing system.
Get a Quote
Ready For A Quote?
Contact us for more floating fish feed machine information.

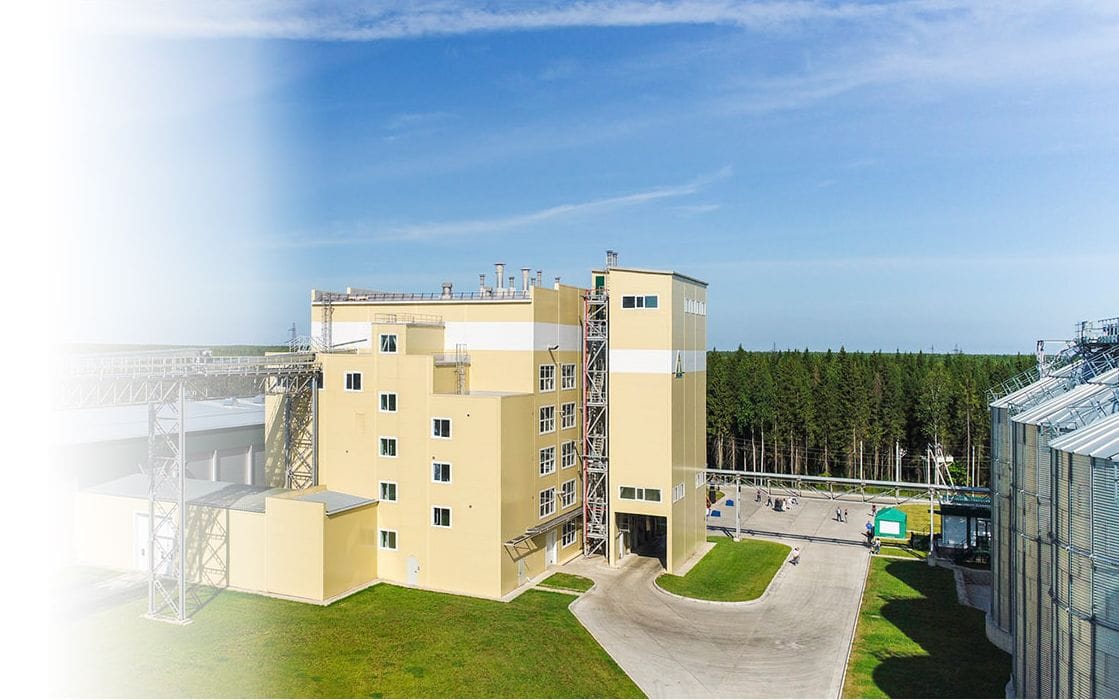

Combining our single screw and twin screw extrusion processes, our wet type fish feed plant cost is usually between 30,000 and 2 million USD.
Sinking to floating. Sub-millimeter to pellet. When you select an Extrusion Processing System from RICHI MACHINERY, you have a complete Universe with the ability to maintain size yields over 95%. As your business evolves, you have the flexibility to change your finished product without the need for significant capital expenditures. In an industry where aquafeed can represent 50% of your operation cost, don't gamble. Contact RICHI and optimize your flexibility and profitability.
Project Planning
Investment Guidance
Solution Design
Consultation and Definitions
With over 30 years of experience, we can identify issues and provide effective solutions in your pellet production lines. We can advise on a consultancy basis whether you have questions about the right solution for your problem, or simply want to better understand the options available to you.
Project Planning and Budgeting
When we begin a new design-build fish feed mill plant construction project, our team will plan out and analyze every aspect of the proposed design to make sure it will elevate your current business model and address specific concerns in the fish feed production process.
Design and Engineering
RICHI team manages every aspect of the pellet plant build process, including the design, planning, engineering, and construction of your new system. With expertise across the agricultural, industrial and manufacturing industries, we can create a custom solution for your facility.
Equipment Manufacturing
Our self-designed and manufactured equipment and products are all made to meet the regulations and quality requirements of various countries, which applies to the execution of different types of animal aqua feed mill plants and pellet plants.
Equipment delivery
RICHI MACHINERY has been working hard to make every detail perfect, especially in the equipment preparation and shipment stage. In the equipment packing and packaging, we use professional packaging and modular solutions to ensure the safe and damage-free delivery of the equipment.
Fabrication Services
We offer comprehensive steel detailing and drafting services, encompassing detailed drawings, erection plans, shop drawings, isometric details, fabrication cut sheets, weld procedures, quality control documentation, and powder coating.
Equipment Installation
According to customer needs, Richi Machinery installation engineers will guide the construction of site infrastructure, equipment installation and commissioning, and trial operation of the entire pellet production line.
Maintenance & Support
With continually rising demand and quality standards, many pellet manufcturers are struggling to cope and have significant engineering challenges. Timely repairs and maintenance are critical to avoid costly downtime and disruption.
Evaluation
Design
Manufacturing
Delivery
Engineering
Installation
Training
Automation
You must have many questions about our wet type fish feed extruder, please feel free to contact us, our technical consultants will answer your questions as soon as possible!
Yes, our fish feed extruder is multi-functional, and we can customize the plate with different size. This way you can easily adjust the size of your pellet.
Just tell us your raw materials, your capacity (t/h) and the size of the final pellet product, and we will select the fish feed making machines for you according to your specific situation.
Our engineers will guide you on site how to install machines and build workshops. Then our engineers will test run the extruder on site and train your workers how to operate it.
We are a wet type fish feed extruder machine manufacturer, which has more than 30 years of experience in this industry. We have two production base, total area 80000㎡
Our wet type fish feed extruder machines are exported to more than 140 countries such as United States, Canada, Australia, Russia, Mexico, India, England, Uzbekistan, South Africa, Afghanistan, Kenya,Tanzania, Algeria,Morocco, Sudan, Saudi Arabia, Australia, Malaysia, Indonesia, Philippines, etc
Of course, we welcome customers to visit our factory. We are located in Kaifeng City, Henan Province, China. And we have a technology research and development center in Zhengzhou City.
Of course, we have installed projects in 131 countries around the world. If you need, you can contact us and we will arrange a visit for you.
Feed extruder machine can be divided into dry type fish feed extruder machine and wet type feed extruder according to the moisture content of the processed material (that is, with or without steam conditioning).
Dry extruder and wet extruder both increase the temperature of the material through the friction generated by extrusion and shear, and then force the material to be extruded from the steel die hole. As the pressure drops sharply, the water evaporates quickly, forming a puffed feed product with a porous interior and an increased volume.
The moisture content of the material in dry food extruder machine is generally 15% to 20%, while the moisture content of the material processed by the wet feed extruder machine is 20% to 30% by adding water and steam. The steam added in the wet fish feed extruder machine puffing process also adds heat to the material and accelerates its temperature rise. Wet fish feed extruder is mainly used for aquatic feed production and other feed processing that requires this technology.
