70,000 Tons/year Expansion Line and 110,000 Tons/year Fish Feed Pellet Line Projects

As a traditional industry, aquaculture has developed rapidly in modern times and has shown its important status in society, economy and people's lives. In particular, the aquaculture industry has seen the fastest growth in global animal and plant food production in the past 30 years. The project will build 4 expansion lines and 3 fish feed pellet production lines. The annual production capacity of 70,000 tons of expanded fish feed, 110,000 tons of fish feed pellets, and 20,000 tons of special small feeds will be formed, and a total of 200,000 tons of aquatic feed production projects.

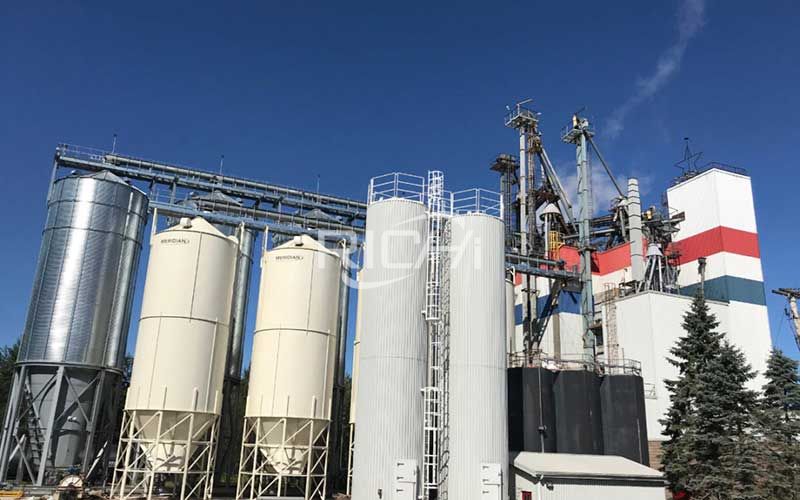

70,000 Tons/year Expansion Line and 110,000 Tons/year Fish Feed Pellet Line Projects

As a large-scale aquatic feed pellet production line, I believe many users are very interested in this fish feed pellet production line equipment. The following table details the type and quantity of equipment used.

Table 1 List of main production equipment of the first phase of the project

Serial number	Device name/System name	Specification model	amount)	Remarks
1	Granular material feeding fence and feeding port	Fence size: 3.4m*2.3m; feeding hopper 4 cubic meters	3	Raw material acceptance and cleaning process
2	Feeding fence and feeding port	Fence size: 1.5 meters X 1.2 meters; 2 cubic meters of feeding hopper	1
3	Cassava crusher (spare)	XKPS38X61CS	1
4	Pulse dust collector	AHMB64L	3
5	Fan	4-72-4A	3
6	silencer	φ500	3
7	Scraper conveyor	LLCA50	3
8	Self-cleaning bucket elevator	TDTG500×280	4
9	Cone powder sieve	SQLZ90	3
10	Magnetic separation drum machine	SCXG30×60	6
11	Pulse dust collector	AHRM6L	6
12	Fan	MKV-012R	6
13	Collection bucket	About 0.5m3	6
14	Rotary distributor	TFPX12×300	2
15	Cylindrical cleaning screen	SCY100	3
16	Rotary distributor	TFPX4×300	1
17	Rotary distributor	TFPX10×300	1
18	Rotary distributor	TFPX6×300	1
19	Rotary distributor	TFPX8×300	1
20	To be crushed	20m³/piece	4	One crushing process
twenty one	Feeder		4
twenty two	Unloading level device		5
twenty three	air hammer	AH-40	4
twenty four	Crushing feeding buffer hopper	About 0.5m ³	1
25	Feeder (frequency conversion)	TWLY20×125	1
26	grinder	SWFP66×125	1
27	Pulse dust collector	LNGM72	1
28	Wind net	φ550mm	1
29	Fan		1
30	silencer	φ550	1
31	Wind network management	φ550	1
32	Smash settling bucket	3m ³	1
33	Material seal auger	TLSGF32	1
34	Self-cleaning bucket elevator	TDTG500×280	1
35	Pulse dust collector	AHRM6L	1
36	Fan	MKV-012R	1
37	Collection bucket	About 0.5m ³	1
38	Distributor	TFPX8×300	1
39	Permanent magnet cylinder	TCXT30	1
40	Ingredients warehouse	780 cubic meters in total	30	One batching process
41	Ingredients warehouse	10m³/piece	2
42	Feeder		32
43	Unloading level device		32
44	air hammer	AH-40	37
45	Screw feeder	AHSG315	twenty two
46	Screw feeder	AHSG250	12
47	Screw feeder	AHSG200	4
48	Screw feeder	AHSG400	4
49	Screw feeder	AHAS250*2	2
50	Breathable cap		1
51	Batching scale bucket	PCS-15	3
52	Feeding port	AHFZ75b	3
53	Batching scale bucket	PCS-20	6
54	Pulse dust collector	AHMB6L	2
55	Fan	MKV-012R	2
56	Pulse dust collector	AHMY18	2
57	Wind shut	GFDZY-10	2
58	Fan	4-72-3.6A	2
59	Stainless steel small silo		27	Small material adding system
60	Feeder		28
61	Feeding bin cover		27
62	Single cylinder dust collector	AHMY1	27
63	throttle	160	27
64	Fan	4-72-3.2A	2
65	Micro screw	AHSG125	17
66	Micro screw	AHSG100	10
67	Stainless steel flip scale bucket	250KG/P	4
68	sensor		16
69	Turnover mechanism		4
70	Self-cleaning scraper conveyor	AHKA50	1
71	Premix mixer	AHML500	2
72	Mixed buffer bucket		2
73	Scraper conveyor	AHKA50	1
74	Double shaft paddle type high efficiency mixer	AHHJ4b	1	One mixing process
75	Mixed buffer bucket	>5m³	1
76	air hammer	AH-40	2
77	Unloading level device		1
78	Self-cleaning scraper conveyor	AHKG100	1
79	Unpowered pulse dust collector	AHMR4	1
80	Self-cleaning bucket elevator	TDTG500×280	1
81	Double shaft paddle type high efficiency mixer	AHHJ6b	1
82	Mixed buffer bucket	>7m³	1
83	air hammer	AH-40	2
84	Unloading level device		1
85	Self-cleaning scraper conveyor	AHKG100	1
86	Unpowered pulse dust collector	AHMR4	1
87	Self-cleaning bucket elevator	TDTG500×280	1
88	To be crushed	20m ³ /pc	8	Granular material secondary crushing section
89	Feeder		8
90	Unloading level device		12
91	air hammer	AH-40	8
92	Crushing bucket	About 0.5m3	4
93	Crushing feeding buffer hopper	About 0.5m3	4
94	Feeder (frequency conversion)	TWLY20×125	4
95	grinder	SWFP66×125	1
96	Pulse dust collector	LNGM72	1
97	Adjust the damper	φ550mm	4
98	Wind net	φ550mmX35000	4
99	Fan		4
100	silencer	φ550	1
101	Wind net	φ550	1
102	Smash settling bucket	3m ³	4
103	Material seal auger	TLSGF32	4
104	Self-cleaning bucket elevator	TDTG400×230	4
105	Permanent magnet cylinder	TCXT30	1
106	Pulse dust collector	AHMB6L	1
107	Fan	MKV-012R	1
108	Collection bucket	About 0.5m3	1
109	Distributor	TFPX6×300	1
110	grinder	SWFP66×100	3
111	Pulse dust collector	LNGM63	3
112	silencer	φ500	3
113	Wind net	φ500	3
114	Ingredients warehouse	20m³/piece	3	Granular material secondary batching section
115	Feeder		3
116	Unloading level device		3
117	air hammer	AH-40	4
118	Warehouse machine	AHSG315	3
119	Breathable cap		1
120	Batching scale bucket	PCS-30	1
121	Pulse dust collector	AHMB6L	1
122	Fan	MKV-012R	1
123	Feeding port	AHFZ75b	1
124	Liquid adding pipeline system	With SYTV63	3
125	Intermediate tank	SYTV63	3
126	Liquid scale	SYTC100-F	2
127	Double shaft paddle type high efficiency mixer	AHHJ6b	1	Granular material secondary mixing section
128	Mixed buffer bucket	>8m³	1
129	air hammer	AH-40	2
130	Unloading level device		1
131	Self-cleaning scraper conveyor	AHKG100	1
132	Unpowered pulse dust collector	AHMR4	1
133	Self-cleaning bucket elevator	TDTG500×280	1
134	Permanent magnet cylinder	TCXT40	1
135	Pulse dust collector	AHMB6L	1
136	Fan	MKV-012R	1
137	Collection bucket	About 0.5m3	1
138	Rotary distributor	TFPX4×300	1
139	To be granulated bin	20m3/piece	3	Pellet granulating section
140	Feeder		3
141	Unloading level device		6
142	Granulation buffer bucket	About 1m3	3
143	air hammer	AH-40	3
144	Granulator feeder (frequency conversion)	SWLL20A	3
145	Conditioner	STZJg420a	6
146	Quality Keeper	STZB1500	6
147	Animal Feed Pelletizer	SZLH520	3
148	Cooling shutter	GFDWZY-24-C	3
149	Counter flow cooler	AHLN24×24	3
150	Cooling wind net	φ700	3
151	Chakron	AHXF1600	3
152	Wind net	φ800	3
153	Fan (frequency conversion)	4-72-8C	3
154	Anechoic settlement chamber		3
155	Wind shut	GFDWZY-16-C	3
156	Self-cleaning bucket elevator	TDTG400×230	3
157	Rotary classification screen	AHJH140×2C	3
158	Finished product warehouse	20m³/piece	6	Granule packaging section
159	Feeder		6
160	Unloading level device		9
161	Impeller feeder	TWLYZ20×50A	3
162	Vibrating grading screen	TQLZ150×200	3
163	Powder analyzer	TXFQ15×30	3
164	Packing bucket	2m ³	3
165	Automatic packaging scale		3
166	Seam Conveyor Combination Machine		3
167	Pulse dust collector	AHMY39	3
168	Wind shut	GFDZY-10	3
169	Fan (frequency conversion)	6-30-N0.6C	3
170	silencer	φ400	3
171	Permanent magnet cylinder	TCXT25	1
172	To be broken warehouse	5m³/piece	1	Granular material crushing and packaging section
173	Feeder		3
174	Unloading level device		4
175	Collection bucket		3
176	Crusher	DFZL1500	1
177	Self-cleaning bucket elevator	TDTG400×230	1
178	Two-position shunt	TFLX22×2	1
179	High square screen	FSFG83	4
180	Finished product warehouse	15m³/piece	2
181	Packing bucket	2m ³	1
182	Single scale	DCS-50（C/L6）	1
183	Seam Conveyor Combination Machine		1
184	Pulse dust collector	AHMY26	1
185	Wind shut	GFDZY-10	1
186	Fan	6-36-4A	1
187	To be crushed	15m³/piece	4	Puffed fish meal two powder and superfine powder section
188	Feeder		4
189	Unloading level device		5
190	air hammer	AH-40	8
191	Crushing feeding buffer hopper	About 0.5m ³	2
192	Feeder (frequency conversion)	TWLY20×100	1
193	grinder	SWFP66×100	2
194	Pulse dust collector	LNGM63	2
195	Wind net	φ450mmX35000	1
196	Fan		6
197	silencer	φ450	1
198	Wind net	φ450	1
199	Smash settling bucket	3m ³	2
200	Material seal auger	TLSGF32	2
201	Self-cleaning bucket elevator	TDTG400×230	2
202	Permanent magnet cylinder	TCXT25	2
203	Superfine to be crushed warehouse	20m ³ /pc	4
204	Superfine grinder		4
205	Chakron		4
206	Wind shut		8
207	Pulse dust collector		4
208	Suction wind net		2
209	silencer	φ700	5
210	Drawer type powder sieve	AHCTS125*190	4
211	Screw conveyor	AHSG250	4
212	Leveler		8
213	Feeder	TWLY20×100	1
214	Wind net	φ480mmX35000	1
215	Wind net		1
216	Distributor		2
217	High square screen		2
218	Conveyor auger	TLSUS25	4
219	Ingredients warehouse	20m³/piece	2	Puffed fish feed secondary batching section
220	Feeder		2
221	Unloading level device		6
222	air hammer	AH-40	6
223	Screw feeder	AHSG315	2
224	Breathable cap		1
225	Batching scale bucket	PCS-20	1
226	Pulse dust collector	AHMB6L	1
227	Fan	MKV-012R	1
228	Feeding port	AHFZ75b	1
229	Double shaft paddle type high efficiency mixer	AHHJ4b	2	Puffed fish feed secondary mixing section
230	Mixed buffer bucket	>5m³	2
231	Self-cleaning scraper conveyor	AHKG100	2
232	Unpowered pulse dust collector	AHMR4	2
233	Liquid adding pipeline system	With SYTV63	5
234	Liquid scale	SYTC100-F	2
235	Grease adding line	DN32	1
236	Self-cleaning bucket elevator	TDTG500×280	2
237	Permanent magnet cylinder	TCXT30	7
238	Buffer	5m³/piece	4
239	Feeder		2
240	Screw feeder	AHSG250	3
241	Drawer type powder sieve	AHCTS125*190	3
242	Leveler		2
243	air hammer	AH-40	4
244	Direct-fired dryer	SmartFeedⅡ-P6GX	3	Fish puffing chemical section
245	Puffing warehouse	20m³/piece	5
246	Feeder		5
247	Unloading level device		7
248	Double twisted dragon	AHAS200*2	3
249	Weight-reducing disc feeder	SWLP150	3
250	Feeder (frequency conversion)	AHWA200	5
251	Double shaft differential conditioner	STZY1500	1
252	Single screw extruder	AHSK215	2
253	Host inverter	315kw	2
254	Chakron	AHXF800	3
255	Fan	4-72-3.6A	4
256	Chakron	AHXF1300	2
257	High pressure fan	9-26-6A	2
258	(Dehumidification) Chakron	AHFX2000	2
259	Centrifugal fan	4-72-8C	4
260	Replica cooler	AHLB28×28	1
261	Chakron	AHXF1800	2
262	Self-cleaning bucket elevator	TDTG500×280	4
263	Rotary classification screen	AHJH140×2C	2
264	Spraying buffer bucket	5m ³	4
265	Dehumidifying wind net	φ900mm	1
266	air hammer	AH-40	4
267	Batching scale bucket	PCS-10	1
268	Atmospheric batch spraying machine	AHSC2000	1
269	Batch spraying control cabinet		1
270	Batch spraying control system		1
271	Liquid adding machine	SYTV63	4
272	Pumping system	With SYTV63	4
273	Liquid adding system	SYTC100-F	2
274	Grease adding line	DN32	2
275	Buffer bucket	4m³	4
276	Extruder	AHCE155	1
277	Twin screw extruder	AHCE155	1
278	Host inverter	355kw	1
279	Positive pressure density controller		1
280	Density control system		1
281	(Dehumidification) Chakron	AHFX2200	1
282	Centrifugal fan	G4-73-No10.5C	1
283	High pressure fan	6-30-8C-37KW	1
284	Vacuum spraying machine	AHVC2000	1
285	Vacuum spraying control cabinet		1
286	Vacuum spraying control system		1
287	Leveler		10
288	Warehouse machine	TLSUW32×32	2
289	Broken arch feeding bin	TXLP120	2
290	Extruder	AHSK215	1
291	Dehumidifying Chakron	X55-φ900	3
292	Fengyun Shakelong	X55-φ1300	1
293	Natural gas dryer	SmartFeedⅡ-P7GX	2
294	Chakron	SKL-Special 2300	2
295	Fan (frequency conversion)	JYFJ51-HG-105C-55kw	1
296	Chakron	X55-φ2000	1
297	Fan	GM45C_30KW	1
298	Grading screen	SFJH140X2C	2
299	Vacuum vertical spraying machine	PTZL3000	2
300	Vacuum vertical spraying control cabinet		2
301	Vacuum vertical spraying control system	JB-PTCL	2
302	Stainless steel intermediate storage tank	MSYG1	4
303	Pumping system	MSBS80	4
304	Density controller	SMTZ150	2
305	Fan	4-3.6-3kw	1
306	Fan	JYFJ51-HG-105C-75kw	2
307	Feeding air shutter	SGFY68	1
308	Chakron	X55-φ2000	1
309	Control System		1
310	Puffed product warehouse	20m³/piece	12	Packing section of puffed fish feed
311	Feeder		6
312	Unloading level device		14
313	Buffer bucket	About 0.5m ³	6
314	Rotary classification screen	AHJH140×2C	3
315	Granule double scale	DCS-50CS-Q6	2
316	Seam Conveyor Combination Machine		7
317	Pulse dust collector	AHMY26	2
318	Wind shut	GFDZY-10	1
319	Packing bucket	2m ³	6
320	Buffer bucket	A total of 10m ³	5
321	Scraper conveyor	LLCA50	2
322	Self-cleaning bucket elevator	TDTG400×230	1
323	Leveler		15
324	Grading screen	AHJH140×2C	3
325	Automatic packaging scale	DCS-50CS-Q6	3
326	Fan	4-72-4A	1
327	Air compressor		3	Auxiliary section
328	gas tank		6
329	Natural gas boiler	CZI-2000GSC （2t / h）	4
330	Soft water preparation device	MS-250C	1

Table 2 Annual consumption of raw and auxiliary materials

product	Name of raw and auxiliary materials	Annual consumption (t/a)	source	Storage method	Maximum storage capacity
Puffed fish feed	Wheat secondary	10800	Outsourcing	Bagged (50kg/bag), raw material warehouse storage	200
	Coarse bran	4500		Bagged (50kg/bag), raw material warehouse storage	0
	Rice bran	9000		Bagged (50kg/bag), raw material warehouse storage	50
	Soybean oil level 1	4500		Bagged (50kg/bag), raw material warehouse storage	20
	46% soybean meal	25200		Bagged (50kg/bag), raw material warehouse storage	1000
	Type 200 rapeseed meal	14,400		Bagged (50kg/bag), raw material warehouse storage	600
	50% cotton meal	2700		Bagged (50kg/bag), raw material warehouse storage	100
	corn protein flour	4500		Bagged (50kg/bag), raw material warehouse storage	100
	Dried white lees	4500		Bagged (50kg/bag), raw material warehouse storage	100
	Calcium dihydrogen phosphate	2700		Bagged (50kg/bag), raw material warehouse storage	100
	Bentonite Grade II	2700		Bagged (50kg/bag), raw material warehouse storage	100
	98.5% lysine	36		Bagged (50kg/bag), raw material warehouse storage	10
	Choline Chloride	36		Bagged (50kg/bag), raw material warehouse storage	5
	Sodium chloride (96.5%)	18		Bagged (50kg/bag), raw material warehouse storage	15
	Vitamin premix for omnivorous fish F22V (powder/40kg)	360		Bagged (50kg/bag), raw material warehouse storage	15
	Microelement premix for omnivorous fish F29M (powder/50kg)	360		Bagged (50kg/bag), raw material warehouse storage	70
	Imported fish meal	900		Bagged (50kg/bag), raw material warehouse storage	20
	Domestic ddgs	1800		Bagged (50kg/bag), raw material warehouse storage	200
	Imported chicken powder	1800		Bagged (50kg/bag), raw material warehouse storage	60
Pelleted fish feed	Wheat secondary	5500		Bagged (50kg/bag), raw material warehouse storage	200
	barley	5500		Bagged (50kg/bag), raw material warehouse storage	100
	Coarse bran	5500		Bagged (50kg/bag), raw material warehouse storage	200
	Rice bran	13,200		Bagged (50kg/bag), raw material warehouse storage	50
	Peanut meal	5500		Bagged (50kg/bag), raw material warehouse storage	50
	Soybean oil level 1	3300		Bagged (50kg/bag), raw material warehouse storage	20
	46% soybean meal	27500		Bagged (50kg/bag), raw material warehouse storage	1000
	Type 200 rapeseed meal	15400		Bagged (50kg/bag), raw material warehouse storage	600
	50% cotton meal	5500		Bagged (50kg/bag), raw material warehouse storage	100
	corn protein flour	3300		Bagged (50kg/bag), raw material warehouse storage	100
	Dried white lees	2200		Bagged (50kg/bag), raw material warehouse storage	100
	Calcium dihydrogen phosphate	44		Bagged (50kg/bag), raw material warehouse storage	100
	Bentonite Grade II	44		Bagged (50kg/bag), raw material warehouse storage	100
	98.5% lysine	twenty two		Bagged (50kg/bag), raw material warehouse storage	10
	Choline Chloride	660		Bagged (50kg/bag), raw material warehouse storage	5
	Propionic acid type solid antifungal agent	330		Bagged (50kg/bag), raw material warehouse storage	3
	Sodium chloride (96.5%)	1100		Bagged (50kg/bag), raw material warehouse storage	15
	Vitamin premix for omnivorous fish F22V (powder/40kg)	2200		Bagged (50kg/bag), raw material warehouse storage	5
	Microelement premix for omnivorous fish F29M (powder/50kg)	2200		Bagged (50kg/bag), raw material warehouse storage	60
	Imported fish meal	1100		Bagged (50kg/bag), raw material warehouse storage	20
	Domestic ddgs	5500		Bagged (50kg/bag), raw material warehouse storage	200
	Soybean phospholipid oil level 1	5500		Bagged (50kg/bag), raw material warehouse storage	10
	Imported chicken powder	2200		Bagged (50kg/bag), raw material warehouse storage	60

Table 3 List of product solutions

product name	Specification (mm)	Output (t/a)	Packing standard (kg/bag)
Extruded material for fish	2.0	120	20
	Powder	120
	1.0	1300
	2.0	1000
	3.0	2000
Extruded material for fish	5.0	2000	25
	3.0	10000
	2.0	1800
	3.0	15000
	5.0	5000
	2.0	6000
	3.0	20000
	5.0	4000
	2.0	360
	3.0	1300
Total extruded material		70000	/
Conventional feed for fish	Medium damage	950	40
	Medium damage	3500
	Powder	550
	3.0	12000
	4.0	5800
	2.0	3500
	2.0	12500
	3.0	52000
	4.0	9800
	2.0	1400
	3.0	5500
	4.0	200
	2.0	1400
	3.0	900
Total of conventional pellets		110000	/
Special materials	1.5	200	20
	1.5	100
	2.0	250
	1.5	150
	2.0	2400
	2.0	400
	3.0	400
	2.0	400
	3.0	3500
	Powder	150
	1.0	550
	1.5	150
	1.5	250
	2.0	1900
	3.0	700
	Powder	200
	1.0	1700
	1.5	600
	3.0	150
	5.0	350
Special materials	1.0	1000	25
	2.0	1500
	3.0	3000
Specialty materials subtotal		20000	/
total		200000	/

If you are interested in fish feed pellet production line or aquatic feed mill project, please consult us. Richi can design and quote for you free of charge according to your actual needs. We currently export to 130+ countries and regions, and our equipment and services have been recognized and praised by many customers.

Fish
Fish
