1 TPH Floating Fish Feed Machinery and Equipment Quotation

Question:

"I will expansion our business floating fish feed into 1 tph. I am waiting your qoutation of floating fish feed machinery and equipment. "


Richi Machinery Engineer Li Answered:

Dear Sir or Madam

Hello, the equipment configuration of our floating fish feed production line includes simple configuration, low configuration, standard configuration, high configuration, PLC, etc. The quotation of a 1 ton per hour floating fish feed machinery line needs to refer to the customer's budget and requirements, so as to design different configurations of production line equipment for the customer.The main processing flow of 1 t/h floating fish feed production line: raw material receiving and cleaning system, raw material superfine grinding, 1st dosing&mixing, 2nd dosing&mixing,extrusion/pelleting , liquid adding & coating,cooling, screening, packaging. This is just the general 1 ton per hour aquafeed process, according to different aquafeed types, different output configuration can be customized.

1 Tph Floating Fish Feed Production Process

(1) Raw material receiving and cleaning

After the main raw materials needed for production are brought into the factory by the car, the raw materials that need to be crushed are removed by the primary cleaning screen to remove impurities and magnetic separators to remove iron impurities. The main pollutants are removed impurities and equipment noise.

(2) Crushing section

The project's raw and auxiliary materials, corn, wheat bran, cotton meal, etc., will be crushed by a crusher after cleaning and removing impurities. The main pollutants in the crushing process are dust and equipment noise. The crushing is carried out in a closed crusher, and the dust is discharged after being processed by a pulse dust collector; the crushing equipment is equipped with a shock-absorbing foundation and a muffler.

(3) Ingredients and mixing section

According to the requirements of the formula, various raw materials participating in the ingredients are measured and weighed into the mixer in turn. The mixing process is carried out in a closed mixer, and the main pollutant is the noise of the mixing equipment.

(4) Superfine grinding section

Because the finer the particles, the larger the surface area, and the larger the contact area of ​​the digestive juice of fish and pigs, which improves the digestibility of feed and increases its nutritional reward.

(5) Secondary mixing section

The superfinely pulverized raw materials are mixed again. The mixing process is carried out in a closed mixer, and the main pollutant is the noise of the mixing equipment.

(6) Puffing and drying section

The raw and auxiliary materials after the secondary mixing are expanded and dried, and are put into the dryer for drying treatment. After drying, the moisture content of the material is about 2%.

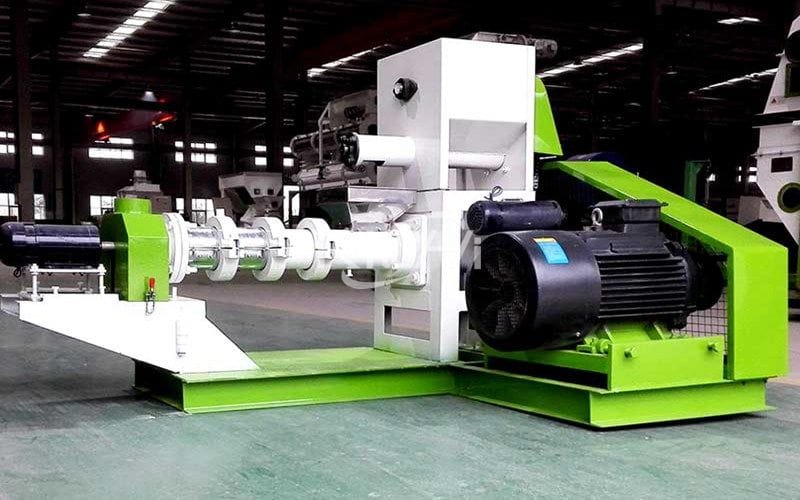

Fish Feed Extruder

(7) Spraying and cooling section

The spraying process of this project is a quenching and tempering process. The materials to be mixed are tempered into powdered feed with certain moisture and humidity, which is beneficial to pelletizing. After the process is completed, the materials are sent to the cooler for cooling treatment.

(8) Pellet packing section

Packed into warehouse, stored for sale.
