USA Large Industrial 10 Tons/Hour Wood Pellet Plant

Construction content

According to the current market demand, the client of this wood pellet plant in USA project invested more than 1.3 million US dollars to build a biomass pellet processing project with an annual output of 40,000 tons. Among them, the office and living areas, production areas, etc. are all based on the existing factory buildings. The specific composition table after the completion of this project is detailed in the following table:

Construction scale and product plan

The product of this wood pellet plant in USA project is formed wood pellets, which are environmentally friendly pellet fuels with the advantages of small size, high heat, low cost, low environmental pollution, high combustion efficiency, easy to burn out, small amount of residual carbon, high energy density, and can be directly used in combustion boilers. It can be used to replace fossil fuels.

The indicators of biomass wood pellets produced by the project can meet the North American wood pellet standards. The specific product parameters are shown in the table below.

Main raw and auxiliary material consumption

The production process of biomass pellets does not require the addition of adhesives, anti-slag agents and other auxiliary materials. The main raw and auxiliary materials required for the wood pellet plant in USA project production are detailed in the following table:

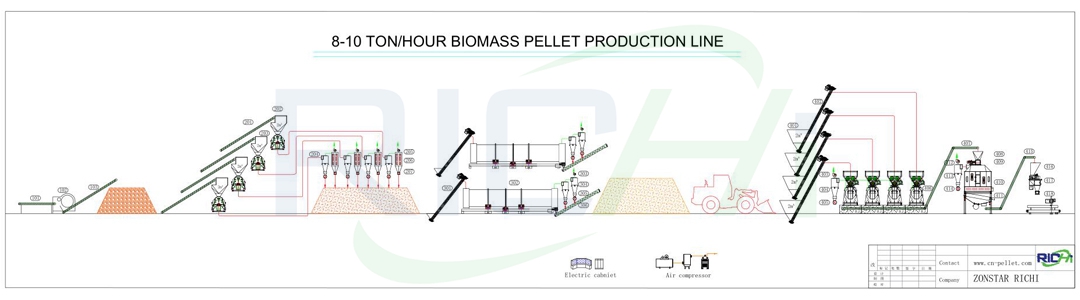

Wood pellet making process design of 10 t/h industrial wood pellet plant in USA

Complete wood biomass pellet plant production process: The leftovers are cut into small wood chips by a slicer, the size of the wood chips is 20-30mm, and the thickness is about 5-10mm; then they are pulverized by a pulverizer, and the pulverization fineness is 3-4mm.

Drying to about 15%, the wet sawdust can be directly dried in the wood dryer without being crushed, and finally granulated by wood pellet mill machine. The diameter of the processed finished product is 6-10mm. The sachet packing scale is packaged into 20-50kg/bag, which is convenient for transportation and sale.

This USA Large Industrial Wood Pellet Plant project is a wood scrap pelletizing production line with an output of 10 tons per hour. The total power of the equipment is about 1848kw. The workshop covers an area of ​​3600 square meters, including raw material warehouse and finished product warehouse. The whole wood pelleting line is compact in design, reasonable in structure, and meets environmental protection requirements. The client requested a directional design.

1. Slicing section (only some leftovers need to be sliced): Process the leftovers into wood chips with a size of 20-30mm and a thickness of about 5-10mm, and then enter the subsequent processing section.
2. Crushing section: There is no dust emission in this section. After crushing by the crusher, the material is conveyed and discharged by the negative pressure suction of the fan. The pulverizer is a water drop structure, and the pulverizing rotor can be operated in both positive and negative directions to improve the service life of the hammer.

   The motor is directly connected to the transmission mode. The output of crushing equipment is 6-8T/H (raw material moisture 40%). The designed output of cleaning equipment: 5-8T/unit, which are used to clean the wet wood chips before entering the dryer and the wood chips of two different tree species before pelleting;

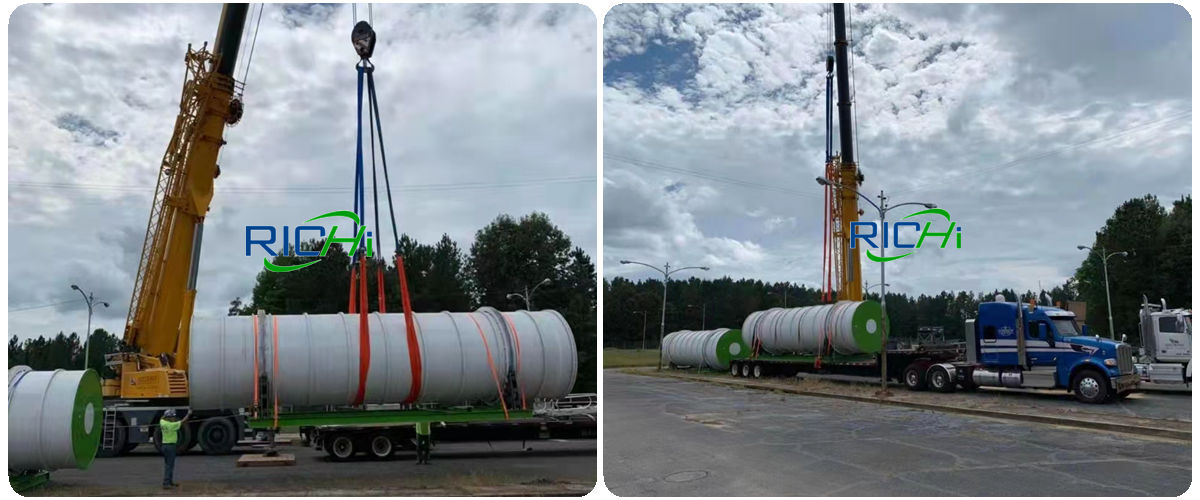

3. Drying section: three-layer tumble dryer, the moisture content of wood chips after drying is about 15%. The diameter of the drum is 3.45m, the length is 11.6m, the power is 19kw, and the designed output is 5T per hour (40% moisture content of the raw material).
4. Mixing section: The raw materials such as sawdust or shavings of different tree species are mixed by the mixer, and then enter the granulator for granulation.
5. Pelletizing section: The diameter of biomass pellets made by biomass pellet mill is 6-10mm optional. Biomass pellets have the characteristics of high calorific value, no pollution, and low ash content. They can be widely used in biomass power plants, biomass steam boilers, household fireplaces, and drying furnaces. and biomass gasifiers. Cooling equipment (2 sets): MKLB4, the cooling chamber volume is 4m³, and the designed output is 5-7T.
6. Warehousing section: Design a 5,000-ton finished pellet storage silo. The finished pellets can be temporarily stored in the finished steel silo and shipped out in bulk.
7. Packing section: according to the customer's local sales needs, the appropriate packing scale can be selected to facilitate the customer to sell products. Usually, there are two specifications of small bags and ton bags. The packaging specifications of small bag packaging scales are: 20-50kg/bag, and the packaging specifications of ton bag scales For: 500-1000kg/bag.

The design highlights and optimizations of the United States 10T/H Wood Pellet Plant scheme:

• This United States 10tph wood pellet plant scheme adopts the method of separating the raw material pretreatment workshop and the granulation finished product workshop. Dust pollution in the raw material pretreatment workshop will not affect the granulated product workshop;
• In order to meet the customer's requirement of reducing the floor space, the main workshop of the United States 10tph wood pellet plant is designed with a high height, and the user can increase the size of the workshop area according to the actual demand, thereby reducing the height of the main workshop;
• In this United States 10tph wood pellet plant scheme, the customer requires that there are mainly two kinds of wood chips of different tree species, which need to be mixed in a certain proportion before pelletizing. If there is no such requirement, the mixing section before the pelletizing section can be removed;
• Users can choose the storage and packaging form of finished products according to the actual needs of the market, and can choose various forms such as small packaging, ton packaging, silo storage, and bulk distribution.

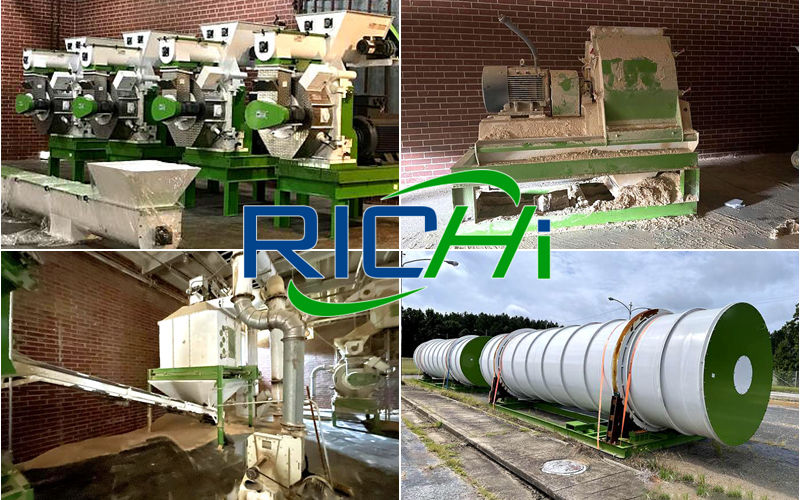

Machinery needed for making wood pellets

List of main production equipments in this large industrial turnkey new design 10 tons/hour wood pellet plant project:

Capacity matching: This project has a total of 4 pellet machines, and the equipment production time is 300 working days per year (8h/shift × 2 shifts). A single pellet machine can produce 2.5 tons of wood pellets per hour under full load working conditions, 144 tons of biomass pellets per day, and 48,000 tons of wood fuel pellets per year.

Project general layout

The production area of ​​this wood pellet plant in United States project is relatively concentrated, and the production and office areas are separated. The production workshop is divided according to function, mainly into production area and office area. The production area is arranged according to the production process.

This project is based on the premise of meeting the production process, taking into account safety and hygiene requirements, combining the natural terrain conditions of the project site, and dividing and combining various facilities according to different functions, striving to make the layout compact and reasonable, save land, facilitate production, and facilitate management.

Its plane design layout is reasonable, logistics is smooth, and sanitary conditions and transportation, safety, and fire protection meet the needs of the enterprise and industry requirements. In summary, the general layout of the project is reasonable.

Labor quota and work system

The labor quota of the project is about 8 people, implementing a two-shift system, each shift working 8 hours, and an annual production of 300 days (4800h).

Public works

• Water supply and drainage
  Water supply:
  The water for the project is provided by the municipal water supply pipeline. The total water consumption of the project is about 8670m3 per year, mainly for employees' living water and dust removal water. Drainage:
  Domestic sewage is collected in septic tanks and regularly emptied for fertilization of surrounding forests. Dust removal wastewater is recycled and not discharged.
• Energy
  The power supply for this wood pellet plant in United States project is provided by the municipal power grid, with an annual power consumption of approximately 400,000 Kwh/a.

Raw material management measures

According to the suggestions of our engineers, customers should conduct strict daily management of raw materials entering the factory:

1. Customers need to have certain control and inspection capabilities, and can independently control and inspect each batch of raw and auxiliary materials entering the factory, inspect the production workshop, observe whether the raw materials are clean, whether glue, paint, etc. have not been removed, and those that do not meet the requirements will not be allowed to enter the factory.
2. Keep records of all raw and auxiliary materials entering the factory, retain their purchase and sales contracts, and the quantity of items should be clearly stated in the contract. Require raw material suppliers to promise that the raw materials they provide do not contain oil stains or organic coatings (such as glue, paint, etc.).

The raw materials of the USA wood pellet plant project, such as wood chips, wood, stumps, and wood scraps, are all combustibles, which will cause combustion when exposed to open flames. If there are sparks or fire in the wood chips, wood, and stump yards, and there is sufficient oxygen, dry and windy weather conditions, it is easier to cause a fire. Therefore, the raw material storage site should do the following:

• The raw material storage site must be a closed facility, and must have rain protection, sun protection, anti-seepage, dust prevention, anti-scattering and fire prevention measures.
• The wood chip, timber, and stump storage areas and production and processing areas should be arranged separately. The wood chips, timber, stumps, and timber scraps in the storage and production areas should be grouped and stacked according to categories, and necessary fire protection distances should be left.

How to build a wood pellet production line in the United States?

In the United States, wood pellets are mainly used for heating and power generation, especially in the residential and commercial building sectors. Government incentives and environmental regulations have also promoted the use of biomass energy. Therefore, wood pellet processing has a very good market prospect in the United States.

The basic steps to build a wood pellet production line include raw material preparation, equipment selection, production line layout and operation training.

1. First, you need to prepare the raw materials. The raw materials of the wood pellet production line include waste wood, branches, straw, scraps, building templates, wooden pallets, furniture scraps, boards, straw, garden trimmed branches and leaves, waste wood strips, and wood processing plants. The remaining wood. These raw materials can be used as raw materials for the crushed wood pellet molding machine to press pellets after crushing.
2. The next step is equipment selection. The equipment needed to process biomass pellet fuel includes crushers, extruders, and dryers (optional equipment, which can be physically dried). Small production lines can choose equipment with an output of 2 tons or less, while large production lines can reach a scale of more than 10 tons per hour. When purchasing equipment, you can consider professional manufacturers such as RICHI Machinery, which provide customized equipment solutions.
3. Then there is the production line layout. The production line layout needs to take into account the process flow of raw material transportation, crushing, drying and granulation. The entire production process can be fully automated from crushing, crushing, drying to granulation to ensure efficient operation.
4. Finally, there is operation training. Operators need to undergo professional training to ensure that they can operate the equipment proficiently and ensure the normal operation of the production line. The training content includes equipment operation, maintenance and troubleshooting.

Through the above steps, a wood pellet plant can be successfully established to achieve efficient use of raw materials and large-scale production of products. In addition, the cost of building a wood pellet production line mainly includes equipment purchase, plant construction and operation costs.

U.S. Wood Pellet Exports

The first development of wood pellet fuel was due to energy shortages in the United States in the 1870s. The raw materials mainly come from wood waste from furniture factories, paper mills and other factories. Just like propane or natural gas, the energy obtained from burning wood pellets can replace electricity, fuels for fireplaces or stoves, and fossil fuels. At the same time, stove appliances supporting biomass pellets are also diverse.

In the United States, small trees cleared from forests, non-commercially valuable wood, trees that do not meet the requirements of lumber, decayed wood, recycled waste wood, etc., felling residues, trees that died from pests and diseases, processing residues, construction sites The waste wood from above can be used in the wood pellet manufacturing.

In order to save natural gas and oil, and reduce carbon dioxide and sulfur dioxide emissions, the United States vigorously advocates the use of wood pellet fuel. This model has been promoted throughout the country. Power generation and heating are gradually replaced by wood pellet fuel. Ten years ago, the U.S. wood pellets were only for domestic use. Today, countries such as the United States and Canada have become the countries that export the most wood pellets.

The UK remained the largest importer of U.S. wood pellets through August 2020. The 3.8 million metric tons imported, representing 79% of total U.S. volumes, was a 9.3% year-over-year increase. Export volumes to the UK are expected to continue to rise with the completion of MGT Power's 299 MW CHP facility though construction has been delayed as a result of the coronavirus pandemic.

U.S. export volumes to the Netherlands continued to increase; year-over-year volume more than tripled, reaching 381 thousand metric tons through August. For the year, the Netherlands was the third largest importer of U.S. wood pellets with 7.9% market share. As noted, the future of the Dutch market is in question as the government pledged to further reduce emissions, which may eliminate co-firing.

Wood pellet manufacturing technology belongs to the category of renewable energy. In recent years wood fuel pelletizing plant and wood fuel pellet factory is becoming a hot promising investment project. Referring to the cost of customized biomass pellet production line projects, it is affected by a number of factors.

Richi Machinery is one of the best biomass wood pellets plant manufacturers and suppliers with its own wood pellet equipment processing factory, all the wood pellet machines and complete wood pellet production line are on sale at factory price. There are different prices for different wood pellet production machines, if you want to know more about the wood pellet plant equipment price, please contact Richi Machinery.

What's The Profit Of Making Wood Pellets For Biofuel?

When we talk about the cost of making wood pellets, we have to talk about the profits of starting biomass wood pellets production. Here , we analyzed the wood pellets price and profit in the US market.

In the US market, the retail price of small package wood pellets is about $170/ton. The retail price of a large package is about $135/ton. In Sweden the delivery price is around $150/ton. For loose-packed wood pellets, the FOB in Amsterdam is about $80/ton. The production cost of biomass pelletization is about $48.78/ton. So there is no doubt that biomass pelletization has great international market competitiveness. Investing in this green energy market is very promising.

A complete wood pellet plant includes wood pellet manufacturing equipment of slicing, drying, crushing, pelleting, dedusting, cooling, screening, storage and packaging. The output can be 300kg/h-40t/h. As China wood pellet line supplier, our latest technology wood pellet line can process all kinds of wooden materials, such as forest felling, fuel wood, wood processing residues, furniture production wastes, etc.

It can also deal with crops straw, such as corn stalk, rapeseed, cotton stalk, etc. More information about biomass wood pellet plant price in your country? Contact Richi Machinery now!
