Biomass Pellet Production Line

raw materials Of Biomass Pellet Production Line

In general, the biomass resources available in biomass pellet production line, derived from large production areas, can be classified as follows:

Products from agriculture: (wheat, maize, potatoes, beetroot, sugar cane, rapeseed, sunflower, soya, palm and others) and livestock (fats in particular), all initially dedicated at least to food or feed, to which are added plants dedicated to energy crops, such as giant miscanthus for bioethanol, switchgrass or rapeseed for biodiesel.
Agricultural and livestock co-products and residues: straw, pulp, grains, oilcake, cattle manure, pig manure, poultry droppings, etc..
Fisheries resources: animal products from the sea and wetlands and their waste, algae and microalgae (the latter promising a great future because they are very rich in energy).
Forest wood: which provides most of the wood energy resources used for cooking food, heating homes and communities, as well as energy tree plantations such as poplar, pine, eucalyptus or short-rotation coppice, including willows.
Natural waste from wood and forestry: (chips, sawdust) as well as from construction wood (chips, sawdust) and packaging wood industries (crates, pallets, cooperage), except those treated with toxic chemicals.
Waste from the food industry housing and urban communities: often wet or even liquid, including sewage sludge, household waste and organic waste from waste collection centers, waste from distribution and coffee shops or from green spaces.

These biomass resources can all be made into fuel pellets through the biomass pellet production line. Among them, biomass raw materials such as grass, hay, bagasse, peanut shells, sunflower seed shells, and rice husks can also be used to process feed pellets.

Get Latest Price

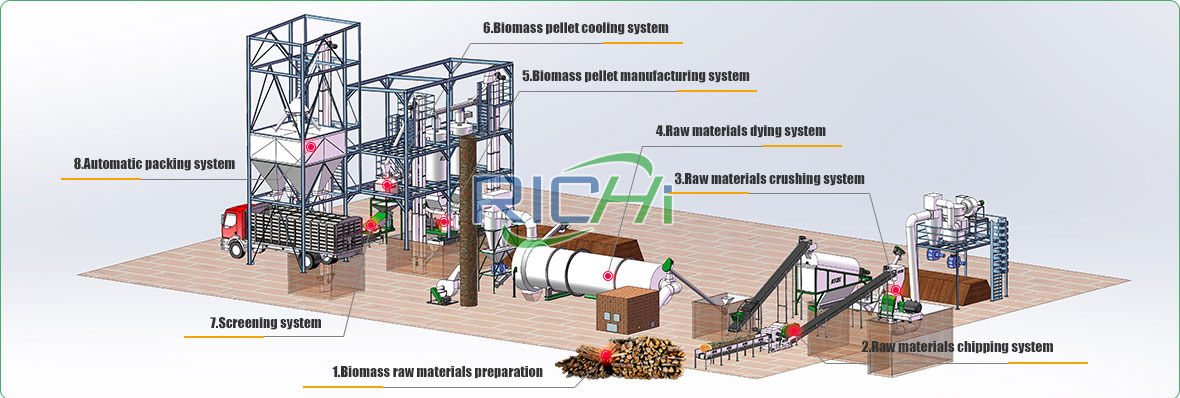

process design of Biomass Pellet Production Line

The biomass pellet production line process consists of multiple steps including raw material pre-treatment, pelletization and post-treatment.

01

Biomass Raw Materials Storage: An effective feedstock storage system is necessary so as to keep biomass away from impurities and offer adequate protection from rain and moisture in general. Rain may actually damage the feedstock by increasing its moisture content to such a high level that the drying process becomes unviable.

02

Removal Of Undesirable Impurities: Raw material should be filtered before grinding to remove materials such as stones or metal fragments. Many biomass pellet plants are equipped with systems separating virgin biomass from inert materials such as stones and soil, or magnetic separators for metal impurity removal.

The presence of even the slightest amount of such materials in the final product is unacceptable. At the same time, they can cause serious damage to the biomass pellet line mechanical equipment, i.e. in the biomass sawdust hammer mill or in the biomass pellet machine.

03

Crushing Section: Raw materials before processing are relatively long or relatively large. The raw material must be reduced to a uniform size that is adequate for the biomass pellet mill. The milled material going into the biomass pellet making machine has to be smaller than the die holes to prevent blocking of the holes. Therefore, materials should be ground to a size no bigger than the diameter of the pellet (∼6 mm), producing a substance with a consistency similar to bread crumbs.

Generally, chippers/shredders are used as a first step. Then, once the size of the chipped material has been reduced, the hammer mill is used as a finishing mill.

03

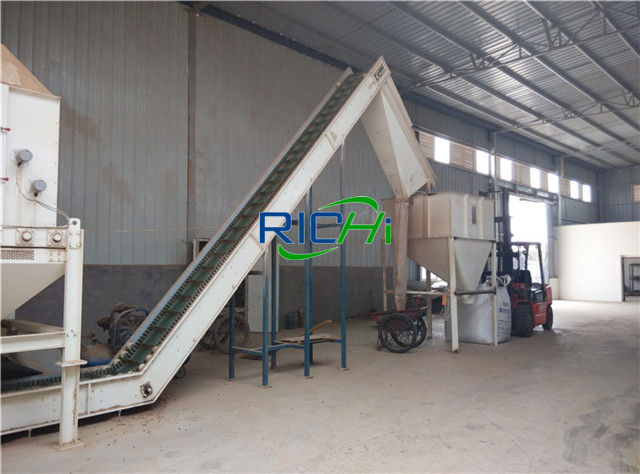

Material Conveying Section: Once reduction has taken place, the material must be moved on to the next process. Screw conveyors are the most commonly used systems for transporting the material through the pelletization process because of the low cost involved.

Alternative options would include the use of a fan followed by a cyclone separator that separates air from the milled material. The air leaves the top of the cyclone, and the milled material is thrown to the outside edge of the cone and then falls out below.

04

Drying Section: Since the raw material is relatively large in water recovery. If the user of the large biomass pellet machine can dry the raw material, the small processing needs to be air-dried, and the moisture of the raw material is generally controlled between 15% and 25%. Excessive moisture can easily block the ring die of the biomass pellet press machine.

Drying solid biofuels is a key factor, since wet raw materials result in low combustion temperatures, low energy efficiency and high emissions of hydrocarbons and particles. In addition, it is very important to choose the right dryer, which may constitute the largest capital expenditure in a biomass pellet production plant and can dramatically increase the production cost per tonne.

05

Mixing And Conditioning Section

Not all raw materials require mixing and conditioning. It is generally used in the process of processing biomass raw materials such as grass (alfalfa, licorice), straw, shells, bagasse, etc. into animal feed pellets. Nevertheless, if necessary, mixers are used after the raw material has been milled and dried to:

get a more consistent material blend to be fed into the pellet mill when the raw material presents significant changes in moisture percentage, binding properties or material density;
produce a homogeneous mixture of raw materials in the case of pellets made up of different raw materials.

Once the raw material has been mixed and its consistency is high enough, it may require the addition of other constituents able to increase the productivity of the pellet mill and enhance the final properties of the pellets produced.

06

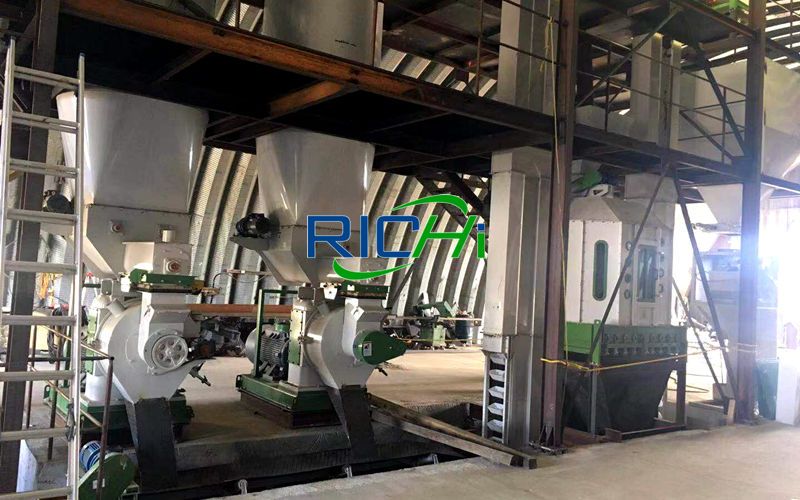

Pelletization Section: The raw material has a moderate moisture content after being dried and can be molded without pressing any additives when the particulate fuel is pressed by the biomass pellet maker machine. It can produce a smooth and lustrous pellet fuel. Biomass pellets are finally made by biomass pellet mills, also known as pellet presses or extruders, which are available in a range of sizes. Generally, every 100 horsepower provides a capacity of approximately 1 ton of pellets per hour.

07

Cooling And Screening Section: Moisture resistance is an important pellet property. The biomass pellet line pelletizing process implies high temperatures, and attention must be paid to proper cooling and heat removal before the pellets leave a biomass pellet production plant, especially with regard to the storage stage. The produced biomass pellet fuel has a relatively high temperature and needs to be cooled through the cooling machine before being packaged. If the temperature is too high, the packaging is easy to produce water droplets to loosen the particles. Which is not conducive to sales.

Once biomass pellets have cooled, they pass over a vibrating screen to remove any fine material. These 'fines' are augured back into the biomass pelletizing process to ensure that no raw material is wasted. Screening ensures that the fuel source is clean and as near to dust free as possible. Once screened, pellets are ready to be packaged for the desired end use.

08

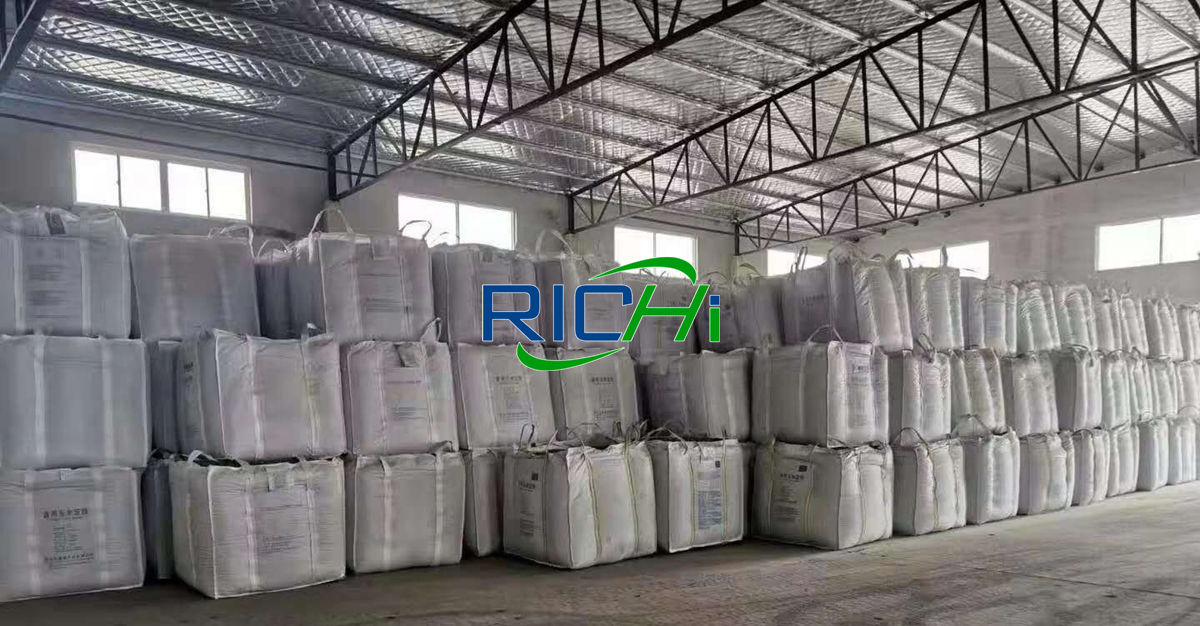

Packing Section: Biomass pellet fuel can be packaged in a quantitative packaging machine. It can be packaged into 5kg, 10kg, 25kg, and so on, which is convenient for small users to use. It can also be made into tons of bags, which is convenient for large users to use and unload.

Get Price & Support

Equipment needed in biomass pellet production line

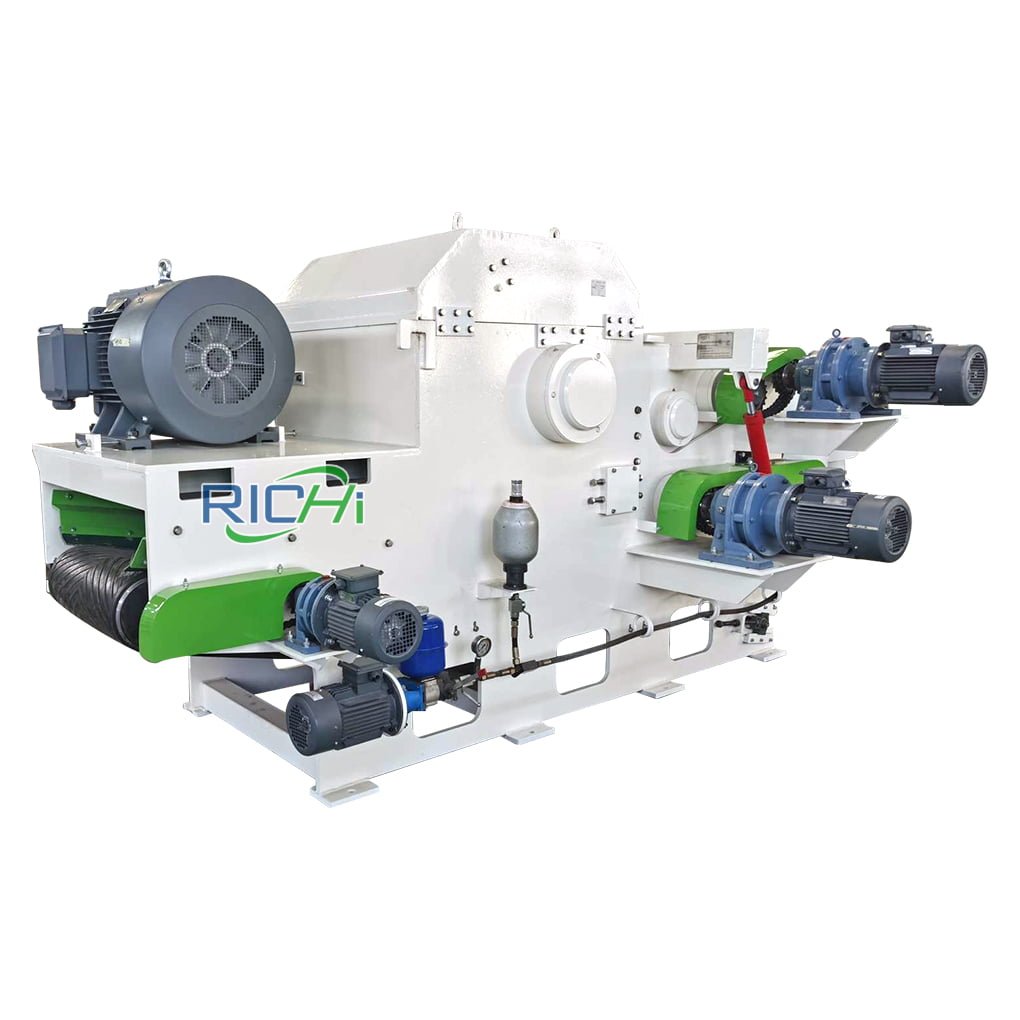

Chipper Machine

Capacity:
3-18T/H

Main Power:
4-110KW

Biomass Hammer Mill

Capacity:
3-25T/H

Main Power:
30-160KW

Biomass Dryer

Capacity:
Customized

Rotate Speed:
3-8 R/Min

Straw Grass Crusher

Capacity:
0.3-3 T/H

Main Power:
22-93 KW

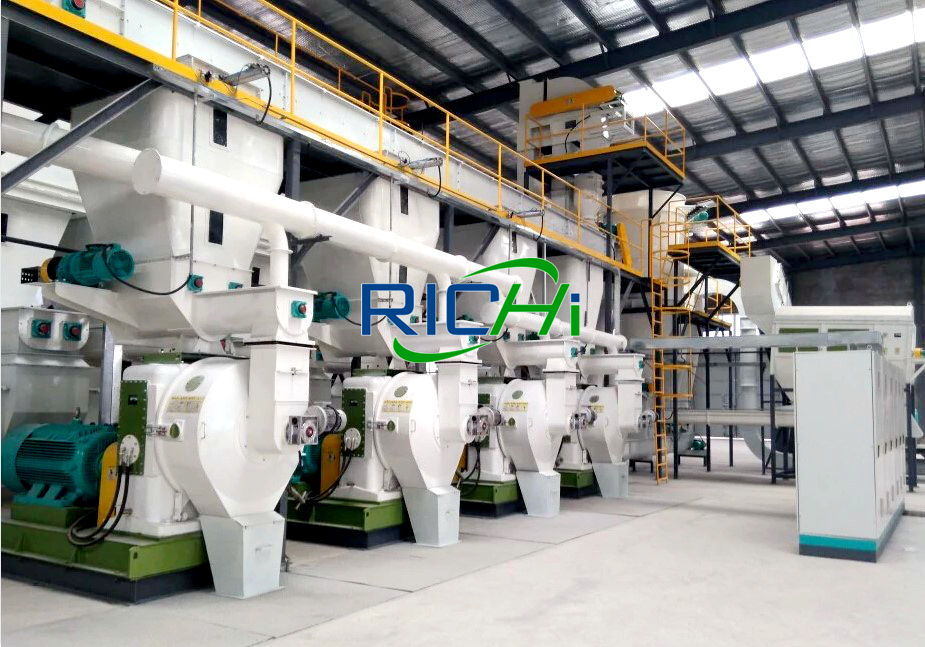

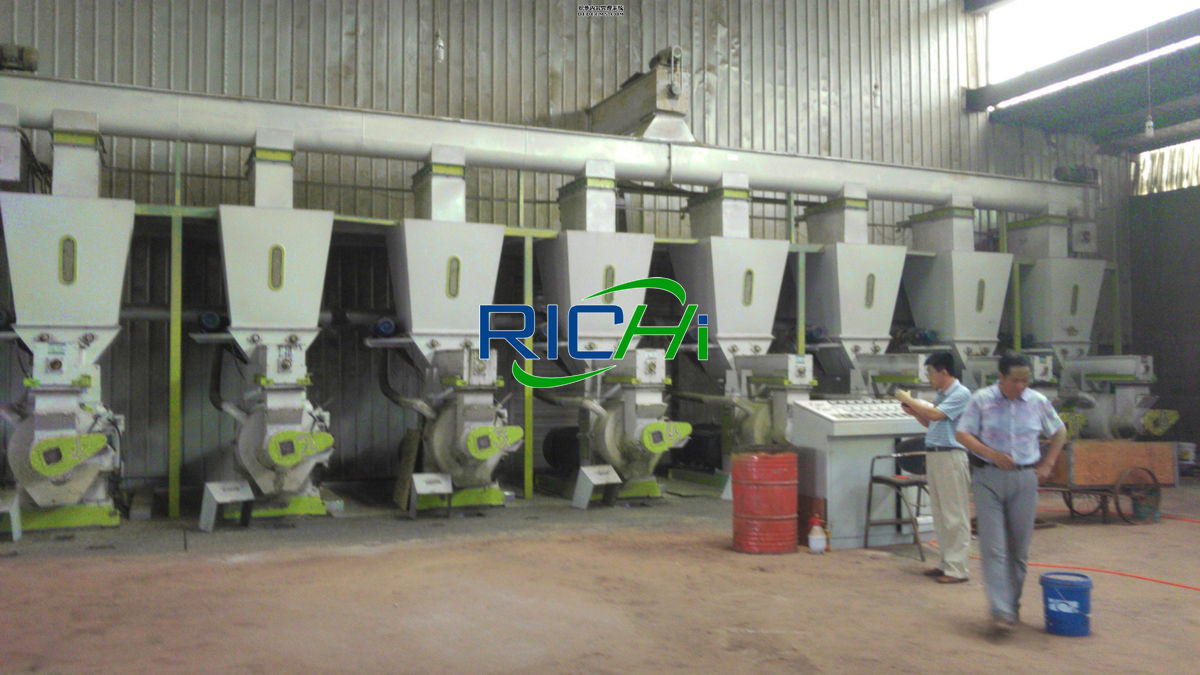

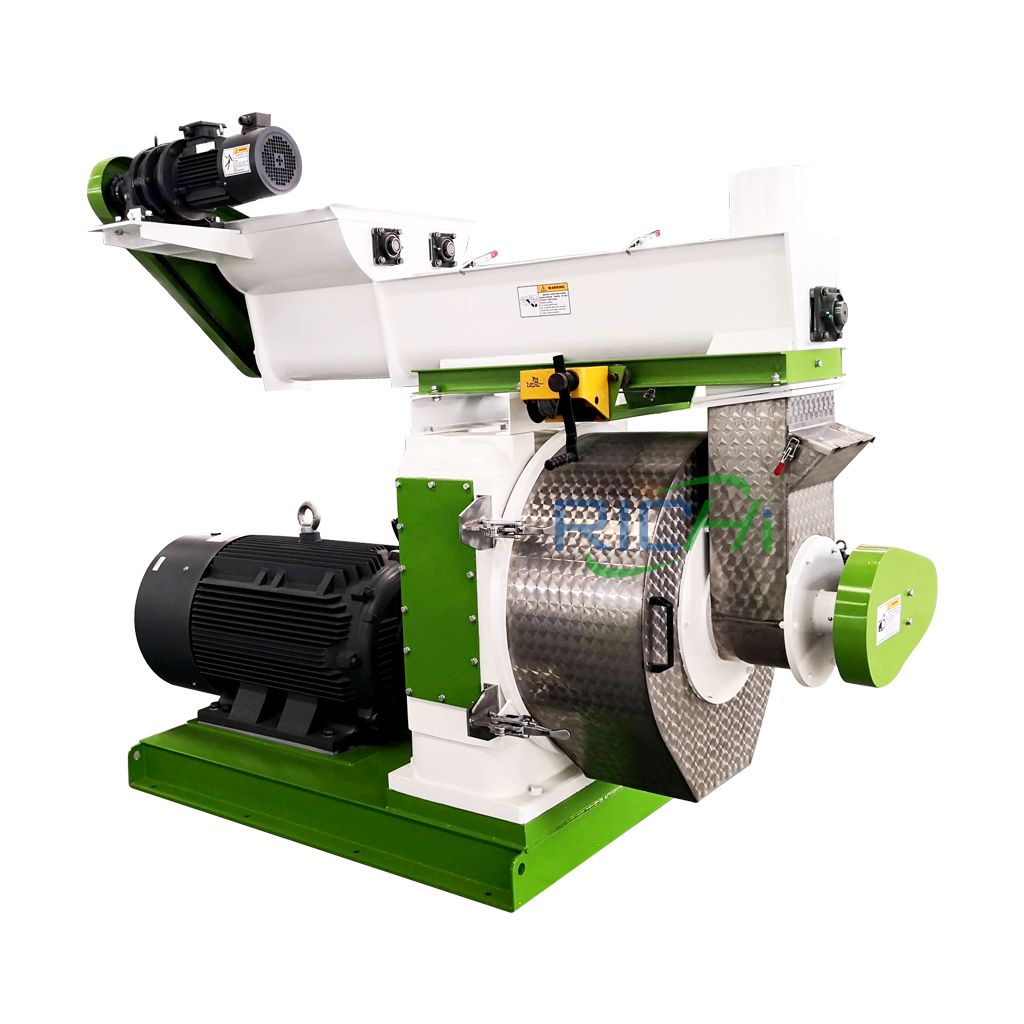

Biomass Pellet Mill

Capacity:
0.3-4.5T/H

Main Power:
37-280KW

Pellet Cooler Machine

Capacity:
1.5-18T/H

Main Power:
0.75-2.05 KW

Vibrating Screening Machine

Capacity:
3-20T/H

Main Power:
1.5-5.5KW

Automatic Bagging Machine

Speed:
6-12 Bags/Min

Main Power:
1.1-5KW

Get Price & Support

advantages Of Biomass Pellet Production Line

From customized non-standard models to multi-combination standard configuration models, RICHI is always in accordance with market trends and customer needs, constantly introducing new ones. In Richi Machinery, each biomass pellet production line design and biomass pellet manufacturing equipment can be customized.
Although the biomass pellet production technology of different customers is different, we always follow when designing for customers: reasonable configuration, stable performance, convenient operation process, and high economic benefits.
This biomass pellet plant is suitable for biomass waste production of various sizes, various hardness, various lengths and various types.
The replacement of wearing parts can be completed quickly, reducing downtime and maintenance time.
Reasonable initial biomass pellet factory investment cost and low maintenance cost in the later stage.

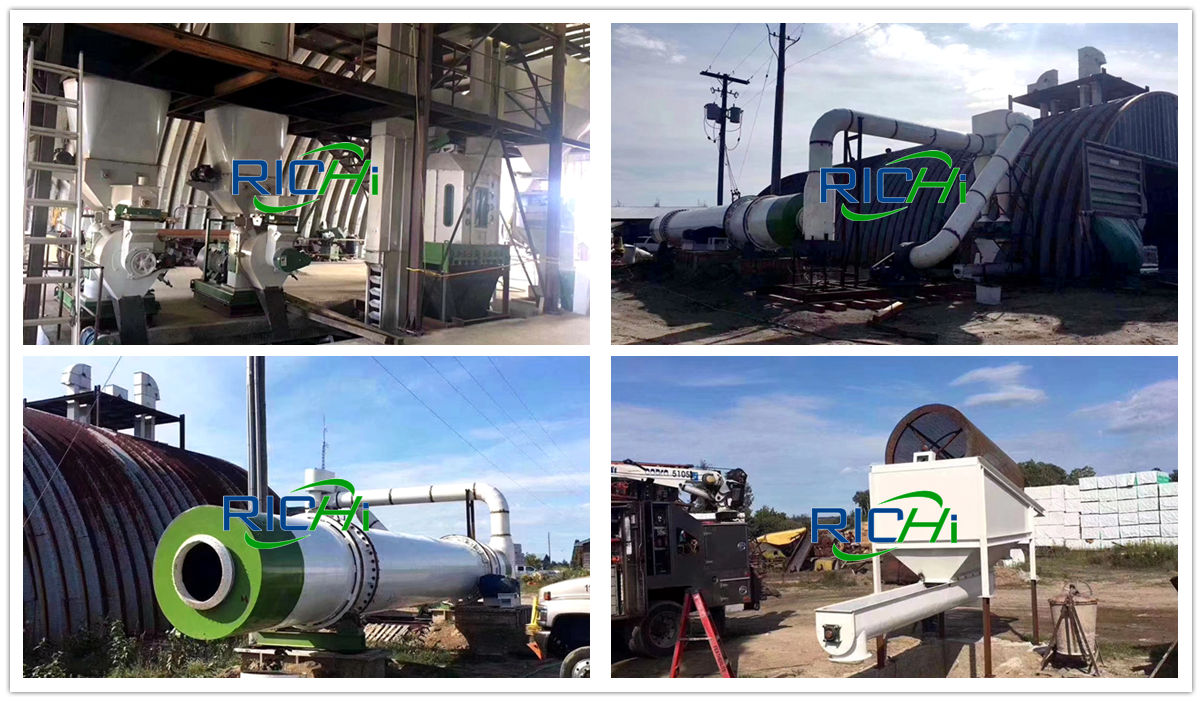

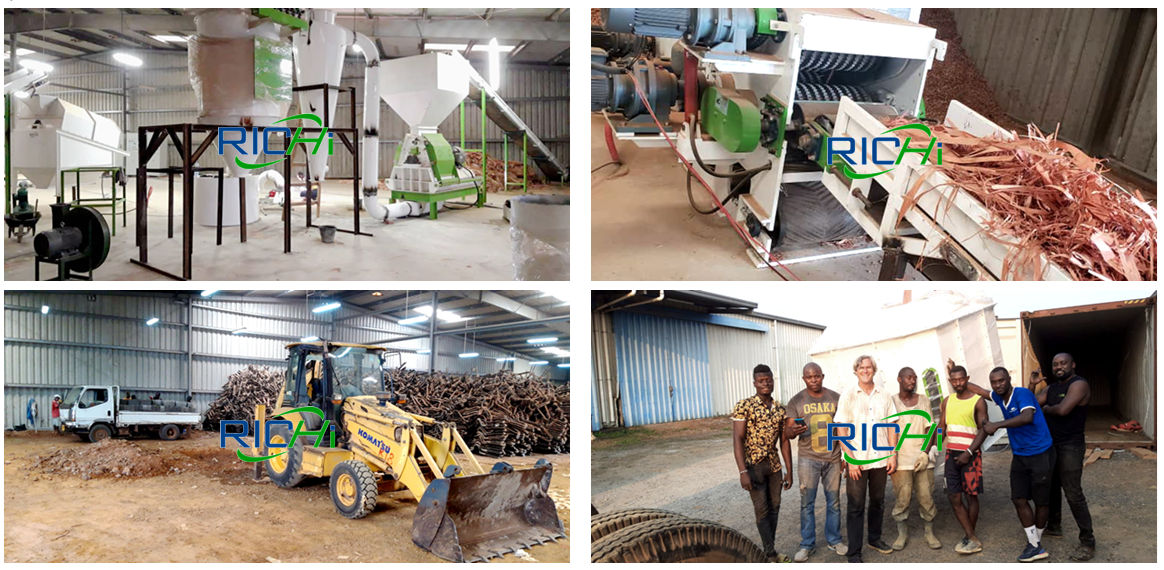

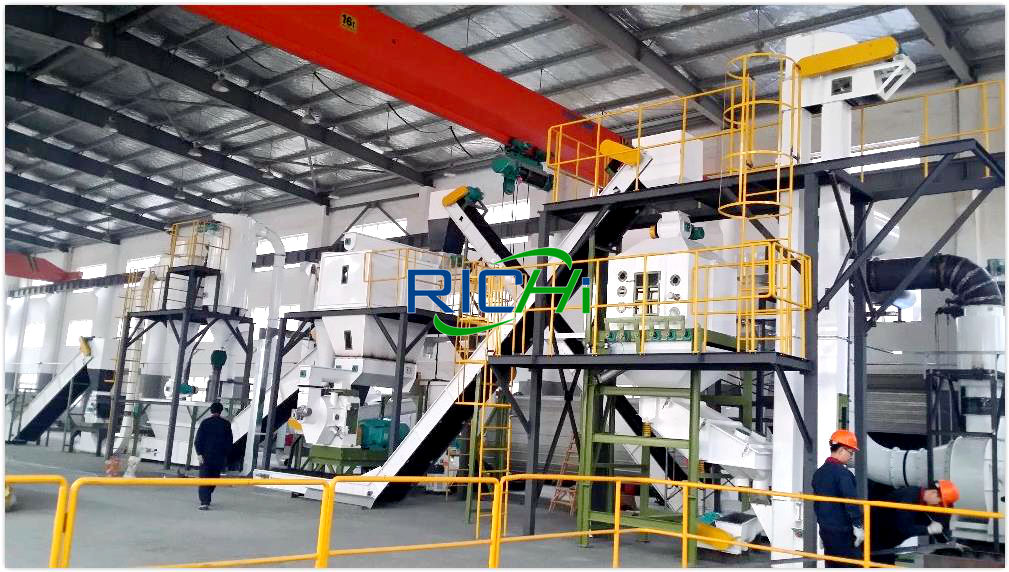

biomass pellet production line projects

Richi Machinery have provided 1-90t/h biomass pellet production lines, biomass pellet manufacturing plants and single biomass pellet making machines for hundreds of biomass pellet manufacturers, and we hope that in the future, we can also help you successfully realize a high-efficiency, high-quality, and high-return biomass pellet production business.

Capacity	Country	Capacity	Country
1-1.5T/H Small Biomass Pellet Factory	Moldova	2-2.5 Tons/Hour Wood Pelletizing Plant	Germany
2-2.5 T/H Biomass Pellet Plant	South Africa	2-3T/H Wood Pelleting Plant	Canada
4-5T/H Wood Pellet Making Equipment	Indonesia	1-1.5 T/H Wood Pelleting Plant	Iceland
20 T/H Miscanthus Grass Pellet Production Line	USA	4 T/H Napier Grass Pellet Production Line	India
1-2T/H Biomass Pelletizing Plant	TAIWAN, China	10 T/H Wood Pellet Mill Plant	Mexico
2T/H Biomass Pellet Production Plant	Netherlands	2-2.5 T/H Wood Pelleting Plant	Australia
1-2T/H Biomass Pellet Processing Plant	Brazil	500-700KG/H Wood Pellet Production Line	Ukraine
5-6T/H Biomass Pellet Production Line	Malaysia	1-1.5T/H Wood Pellet Plant	Japan
4-5T/H Wood Pellet Making Equipment	Indonesia	10-12 T/H Biomass Pellet Production Line	Thailand
2T/H Biomass Pellet Manufacturing Plant	Singapore	5-6T/H Biomass Pellet Production Line	Malaysia
1T/H Straw Pellet Production Line	Vietnam	1-2 T/H Wood Pellet Production Line	Italy

Biomass pellet business plan & Biomass pellet manufacturing project report

The followings are some biomass pellet production line project proposal / biomass pellet business plan/ biomass pellet manufacturing project report for you:

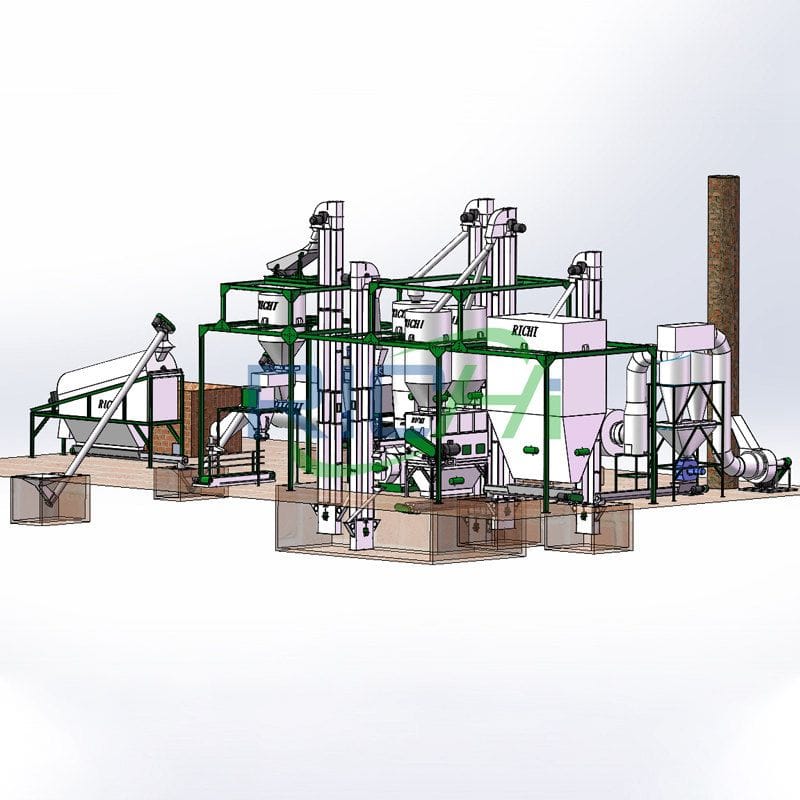

How to set up a 1-100 t/h complete biomass pellet production line?

The production of energy by means of biomass has shown a clear trend towards the use of pellets due to their homogeneous size, which facilitates handling and feeding while also reducing costs associated with storage and transportation. The biomass pellet quality depends on the properties of the feedstock and on the operative variables of the densification biomass pellet production plant process. Quality parameters can be modified by adapting the process to the raw material to be pelletized.

The management of these residues is hampered by the costs associated with treatments needed for their proper removal. Pelleting residual biomass by biomass pellet plant would mean the conversion of a residue difficult to manage into an energy resource most adequate for use in the areas where each grove exists.

The final quality of biomass pellets varies depending on the raw material properties and the manufacturing process. Although the inorganic and organic components of the different raw materials cannot be modified, certain variables dependent on the biomass pellet production line pelletization process can be controlled to optimize the production efficiency and enhance the quality of the finished product.

We always have a solution for just about every biomass materials pellet processing challenge.

6T/H biomass fuel pellet production line for peanut shell, straw, wood

6T/H complete biomass pellet plant for wood sawdust and straw powder

No	Main Equipments	Model	Quantity
1	Mixer Machine	SLHJ1A	1
2	Sawdust Rotary Dryer	ф1800*180000	1
3	Biomass Pellet Making Machine	MZLH-520	3
4	Pellet Cooling Machine	SKLN17*17	1
5	Vibrating Screener	TDZS63	1
6	Pellet Packing Machine	DCS-50	1
7	MCC Control Center ;Mimic Control Panel	/	1
8	More Auxiliary Equipment	U-screw conveyorTLSSU35, Bucket elevatorTDTG50/28, Upper level indicatorKF1500, Storage bin20m³, Lower level indicatorKF1500, Cycloneф600, Belt conveyorPDS-500, Pneumatic gate valveTZMQ30A,etc.

Get Latest Price

8T/H biomass fuel pellet production line for peanut shell, straw, wood

No	Main Equipments	Model	Quantity
1	Commercial Drum Chipper	JLBX-218	2
2	Biomass Material Hammer Mill	SFSP66*80	2
3	Rotary Dryer for Sawdust	ф24001000003 Layer	2
4	Biomass Pellet Machine	MZLH-520	4
5	Vibrating Screener	TDZS63	1
6	Pellet Packing Machine	DCS-50	1
7	MCC Control Center ;Mimic Control Panel	/	1
8	More Auxiliary Equipment	Belt conveyorsPDS650, Buffer bin2m³, Cycloneф1000, Pulse dust collector TBLMa.36b, U-screw conveyorTLSSU32, Bucket elevatorTDTG60/23, Storage bin*20m³, etc.

Get Latest Price

400KG/H small wood pellet plant design and required equipment

400KG/H small biomass pellet line for mushroom-stick, crop waste, peanut shell

No	Main Equipments	Model	Quantity
1	CE Approved Chipper	JLBX-215	1
2	Competitive Price Hammer Mill For Sawdust	SFSP66*60	1
3	Small Rotary Dryer	ф1200*120000	1
4	Biomass Pellet Granulator	MZLH-320	1
5	Vibrating Screener	TDZS63	1
6	Pellet Packing Machine	DCS-50	1
7	MCC Control Center ;Mimic Control Panel	/	1
8	More Auxiliary Equipment	Buffer bin2m³, Cycloneф1000, Pulse dust collectorTBLMa.36b, Draught fan9-19-5.6a, U-Screw conveyorTLSSU30, Bucket elevatorTDTG40/23, Storage bin4m³, Anti-caking equipment, Bucket elevatorTDTG36/18,etc.

Get Latest Price

1.2ton per hour complete wood pellet production line price

1.2T/H turnkey biomass pellet production line for wood and sugarcane bagasses

No	Main Equipments	Model	Quantity
1	Biomass Sawdust Hammer Mill	SFSP 66*60	1
2	Biomass Drying Machinery	ф1200*120000	1
3	Biomass Pellet Machine	MZLH-420	1
4	Pellet Cooling Machine	SKLN11*11	1
5	Vibrating Screener	TDZS63	1
6	Pellet Packing Machine	DCS-50	1
7	MCC Control Center ;Mimic Control Panel	/	1
8	More Auxiliary Equipment	Buffer bin2m³, Cycloneф1000, Pulse dust collectorTBLMa.36b, Draught fan9-19-5.6a, U-Screw conveyorTLSSU30, Bucket elevatorTDTG40/23, Storage bin4m³, Anti-caking equipment, Bucket elevatorTDTG36/18,etc.

Get Latest Price

4T/H easy to handle stable performance wood pellet manufacturing plant

4T/H complete biomass pellet production line for wood

No	Main Equipments	Model	Quantity
1	Hot Selling Good Quality Commercial Wood Chipper	JLBX-218	1
2	Biomass Hammer Mill	SFSP66*80	2
3	Biomass Pellet Rotary Dryer	ф24001000003 Layer	1
4	Biomass Pelletizer Machine	MZLH-520	2
5	Pellet Cooling Machine	SKLN17*17	1
6	Vibrating Screener	TDZS80	1
7	Pellet Packing Machine	DCS-50	1
8	More Auxiliary Equipment	Bucket elevatorTDTG40/23, Belt conveyorsPDS650, Buffer bin2m³, Cycloneф1000, Draught fan9-19-5.6a, Lower level indicator KF1500, U-screw conveyor*TLSSU32, Anti-caking equipment, MCC Control Center ;Mimic Control Panel, etc.

Get Latest Price

10T/H latest technology high quality wood pelletizing plant design

biomass wood pellet line 10tph for straw and wood

No	Main Equipments	Model	Quantity
1	Heavy Duty Drum Chipper	JLBX-218	2
2	Factory Sale Hammer Mill For Sawdust	SFSP66*80	2
3	Biomass Drying Machine	ф24001000003 Layer	2
4	Biomass Pelletizing Machine	MZLH-520	4
5	Pellet Cooling Machine	SKLN20*20	1
6	Vibrating Screener	TDZS80	1
7	Pellet Packing Machine	DCS-50	1
8	More Auxiliary Equipment	Belt conveyorsPDS650, Buffer bin2m³, Cycloneф1000, Pulse dust collector TBLMa.36b, U-screw conveyorTLSSU32, Bucket elevatorTDTG60/23, Storage bin20m³, Anti-caking equipment, Belt conveyorPDS-500, etc.

Get Latest Price

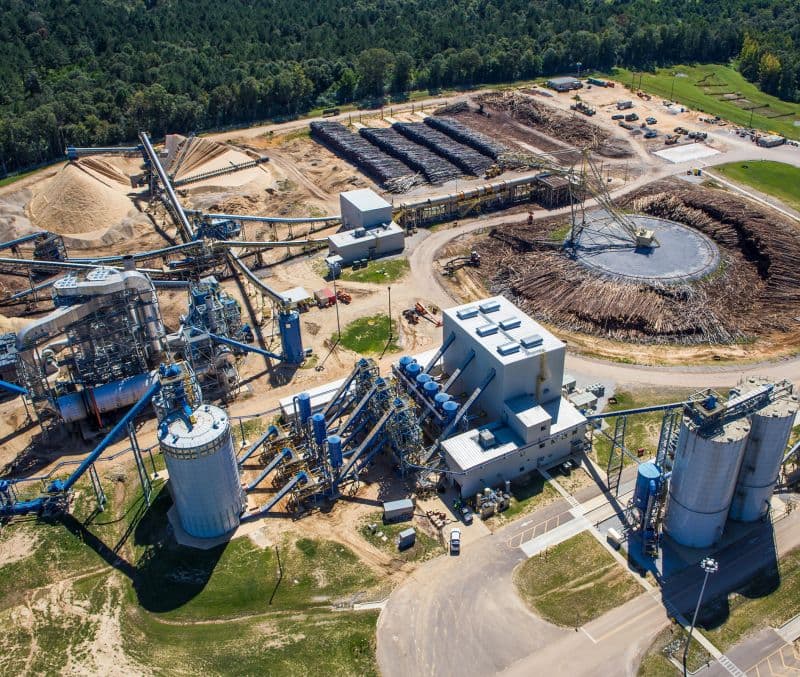

20T/H reasonable design large biomass pellet production line for wood pellets

20T/H large biomass pellet production line for forest and agricultural waste

No	Main Equipments	Model	Quantity
1	CE ISO Chipper Crusher	JLBX-2113	2
2	Biomass Hammer Mill	SFSP-Y60132Q1	4
3	CE Biomass Sawdust Rotary Dryer	ф24001000003 Layer	4
4	Industrial Biomass Pellet Mill	MZLH-520	8
5	Pellet Cooling Machine	SKLN24*24	2
8	More Auxiliary Equipment	Vibrating ScreenerTQLZ150x200, Belt and sewing machineDCS-MTB, Storage bin4m³, Silencer for hammer millXY-132Q1, Connection piping systemFWY-350, CycloneSK1400, Pulse dust collectorFZMC612, etc.

Get Latest Price

28T/H big capacity pellet production line for fuels energy plant

28T/H big capacity industrial bioamss pellet plant for wood and rice husk

No	Main Equipments	Model	Quantity
1	Industrial Use Heavy Duty Chipper Machine	JLBX-2113	2
2	Biomass Hammer Mill	SFSP-Y60132Q1	4
3	Heavy Duty Rotary Dryer	ф24001000003 Layer	4
4	Biomass Pellet Press	MZLH-520	12
5	MCC Control Center ;Mimic Control Panel	/	1
6	More Auxiliary Equipment	Storage bin4m³, Silencer for hammer millXY-132Q1, Connection piping systemFWY-350, CycloneSK1400, Pulse dust collectorFZMC612, Screw conveyor (air locked)TLSS40, U-Screw conveyorTLSSU40, Vibrating Screener, etc.

Get Latest Price

Some guidance on complete biomass pellet production line technology

The main problems with agricultural raw materials, in comparison to woody raw materials, are the higher ash content, the lower ash softening temperature and the higher risks of corrosion and fouling. Additives can counteract these problems to some degree, but at the same time they increase the costs, and problems with high ash content would still remain.
One way to increase the use of these raw materials is to mix them with sawdust/shavings, and to adapt their proportions to the combustion conditions in the boiler (fluidized bed boiler, burner, etc.).
Another problem with these materials is that the production costs may be high, especially for cultivated crops, requiring fertilizers, specialist machinery, etc. From a natural resource point of view, it is important that the net energy yield of using pellets as a fuel is as high as possible.
Most raw materials also have low bulk densities, resulting in high transport and storage costs. Pelletization affords benefits such as increased bulk density, therefore reducing transportation and storage costs and providing better material feeding with less dust formation, if we consider the factors that affect milling properties and the agglomerating character of the raw materials.
The pelletization process entails several stages that can be modified depending on the type of biomass used. These raw materials generally call for pre-treatment because of their origin and characteristics.
To determine the optimal pelletization conditions for each raw material, the densification process must first be tested under different conditions in terms of: compression force, moisture of the raw material, temperature of the pelletization and percentage of additives, when necessary.
The pellets produced under the conditions analysed will have different values in view of their quality properties, and only those that fulfil the requirements established by the existing norms should be used as fuel.
