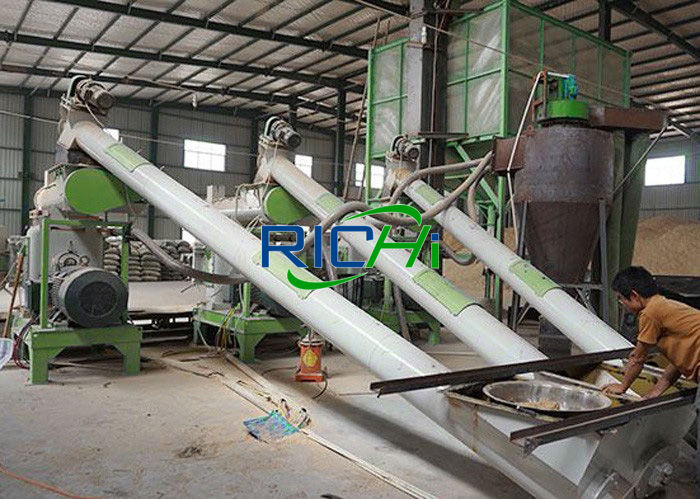

Sawdust Pellet Production Line

• Sufficient and cheap sawdust material source: Sawdust is the residue of wood processing factory. The amount of sawdust material is large and the price is cheap. Sawdust wood pellet mill and complete sawdust pellet production line can also be used to deal with life wastes such as leaves, straw and crops waste. It is a way to make waste profitable. And by making these biomass materials into fuel pellets, we no longer have worry how to dispose of these wastes.
• Great demands for sawdust pellets: As the price of coal rise, finding coal fuel replacement is urgent. More and more people turn to biomass pellets. The market demand is large. Sawdust pellets not only be used at home in our daily life, but also can be applied to industrial production such as power plant.

• They are a sustainable resource.
• They reduce energy imports and contribute to the national economy.
• The amount of waste released to the environment after use is negligible.
• They can be used to produce electrical energy.
• They generate CO emissions below the threshold.
• They are easy to transport and the need for storage is less compared to wood etc.
• They are manufactured from residual sawdust and similar waste materials without harming nature.

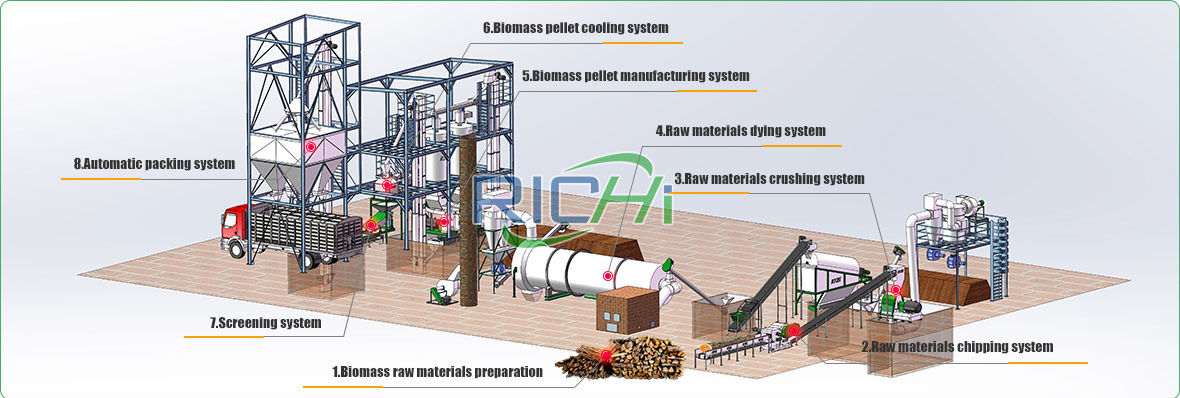

How to make quality wood sawdust pellets with sawdust wood pellet production line?

01

Raw materials preparation

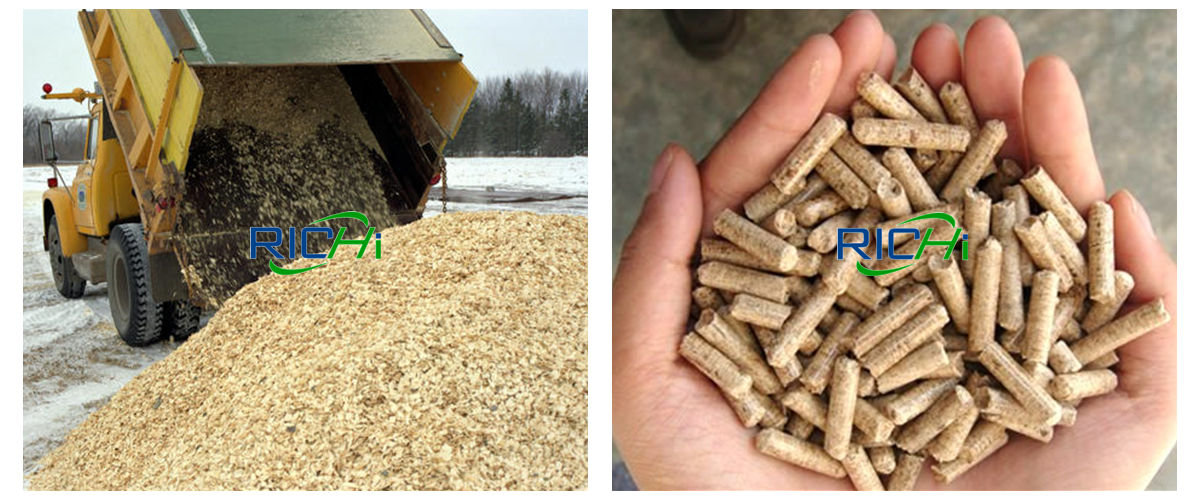

Transport sawdust or other kinds of biomass materials to your factory. Locate the plant near the source of raw materials, so that to minimize the transportation cost. As the wood sawdust arrived in the sawdust pellet machine plant, the moisture content should be tested.

The moisture content gives the proportion of evaporable water in the total weight of material. The sawdust with high moisture content should be stored separately from the low moisture content sawdust. The production of 1 ton pellets needs the about 7 bulk m³ sawdust with the moisture content around 50-55%.

The optimum moisture content of the sawdust is 10-15%. The sawdust with higher moisture content should be dried before entering the sawdust pellet machine while the lower one can skip the procedure.

02

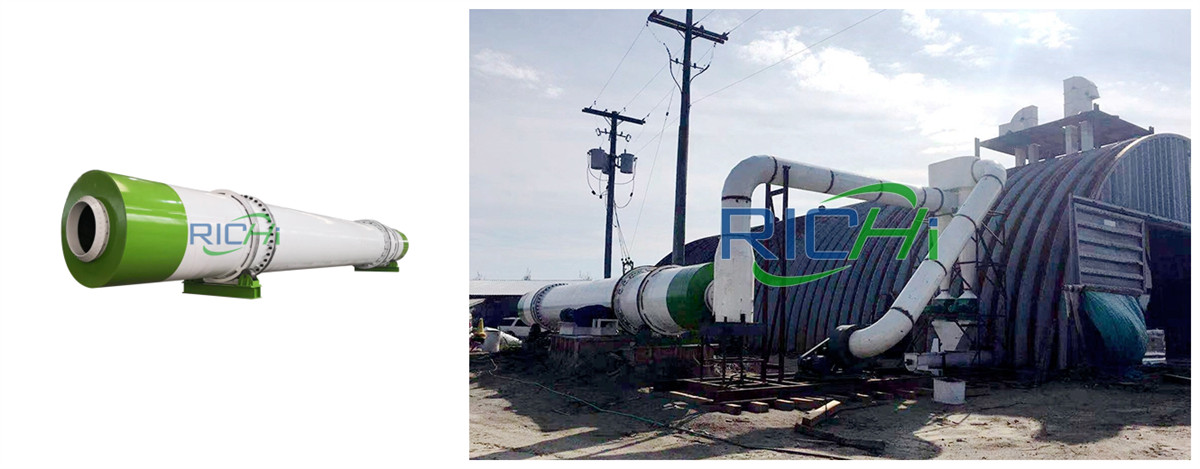

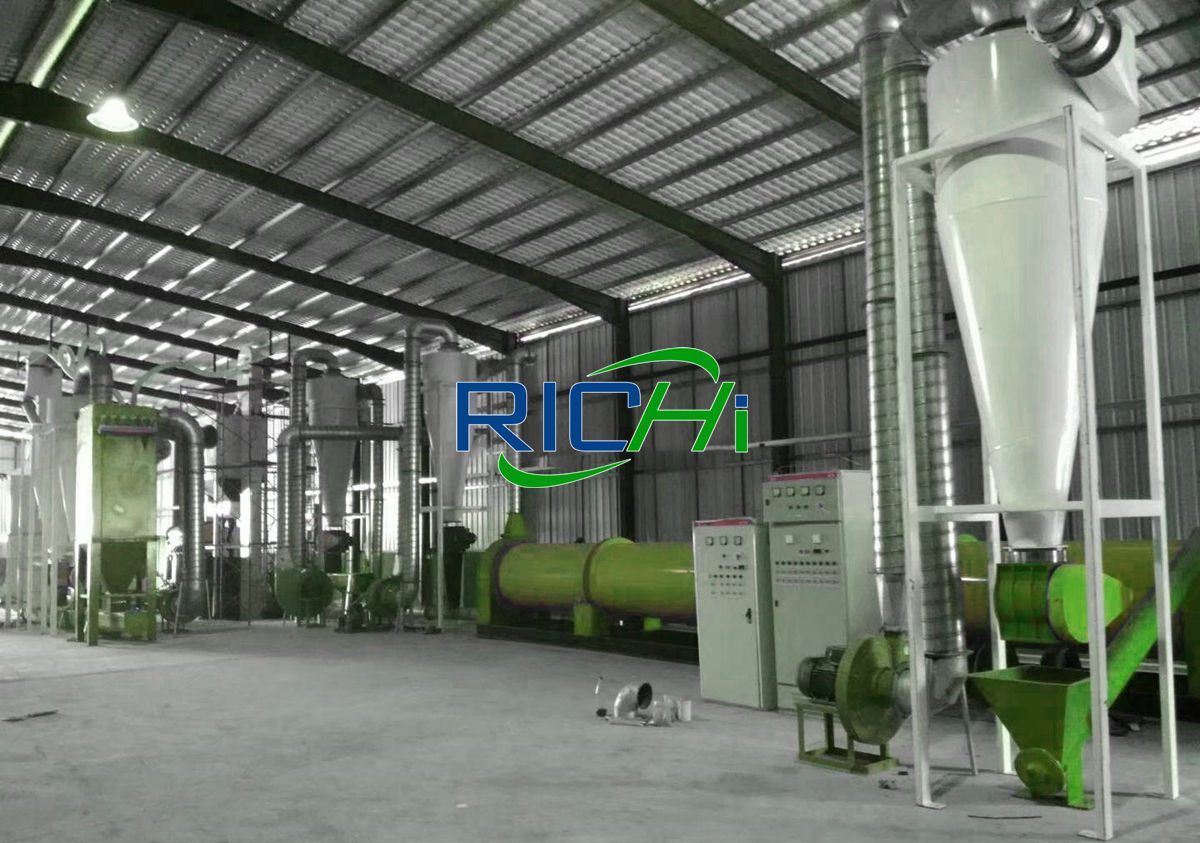

Drying system

The wet sawdust should be dried before size reduction because the wet sawdust consume more power to be hammered than the dried one does. And also the wet sawdust may risk the screening by clogging or smearing the screen. Drying can be done by the wood sawdust drying machines.

03

Cleaning & screening system

The screening of the sawdust is to remove the stones, plastics, metals, or other hard materials that may damage the equipment. The stones and stone like hard materials are removed by a stone trap when the sawdust passes over the screen while the metals are picked up by a magnet .

04

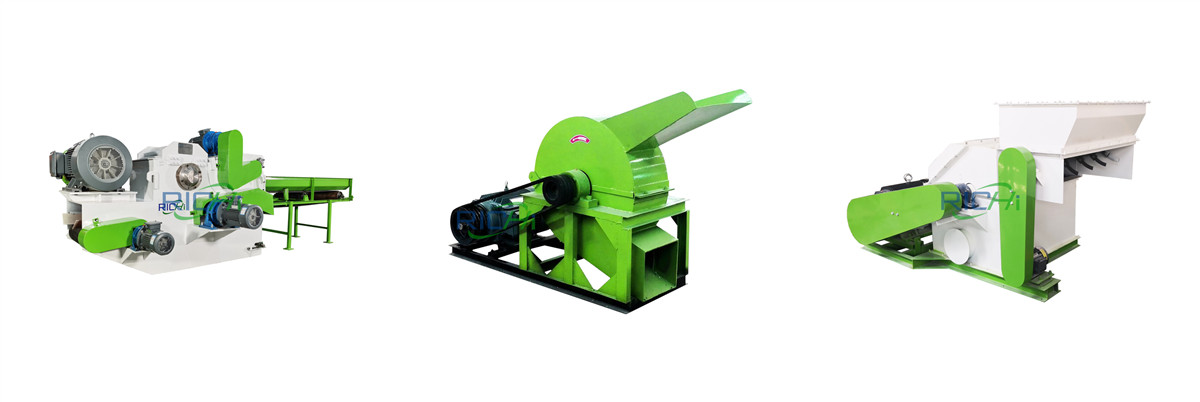

Crushing system

The grinding section is meant to homogenize the sawdust to an even-size. In the piles and piles of sawdust there are might be wood lumps, dead knots, etc. which needed to be hammered so that they can pass the die holes of the sawdust pellet mill machines.

05

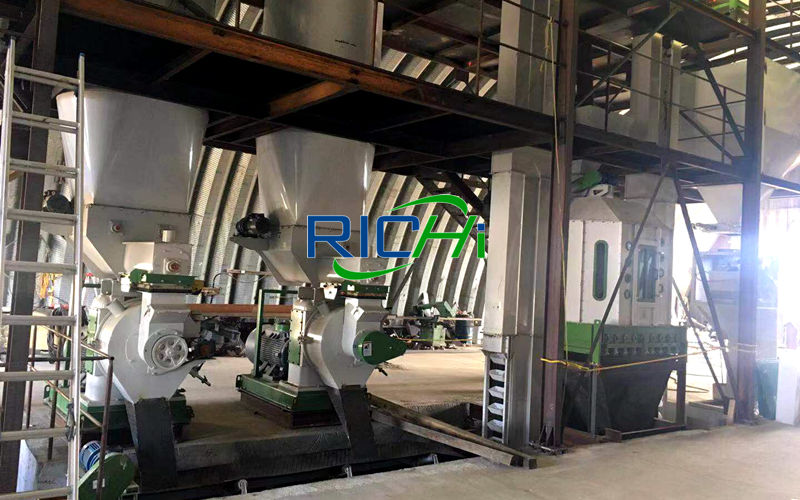

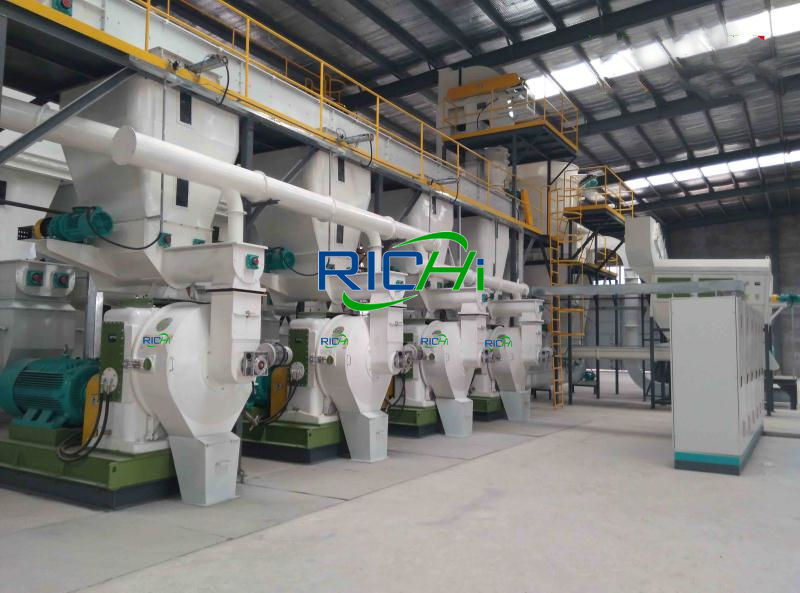

Pelleting system

When the sawdust goes into the pelletizing chamber of the sawdust pellet mill machine, the lignin of the sawdust will be heated up to 120-130 ℃ by the heat produced by the running sawdust pellet machine and by which the lignin will be plasticized and binds the particles together to help to mold the pellets.

The sawdust pellets are molded by being pressed through the pellet dies of the sawdust pellet machines and then are cut off by the cutter with the desired length. During the pelletizing, the binder may be needed to improve the pellet strength and durability. Watch this video to see how a sawdust pellet mill works.

06

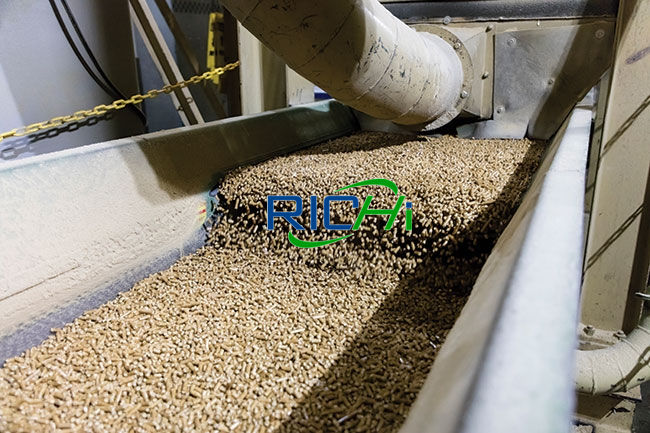

Cooling system

The moment when the pellets leave the sawdust pellet machines, they are hot and plastic. Then they need to be cooled down to become hard and rigid and to dry up so that the final moisture content after the cooler can be as low as 6% which may be increased up to 8 to 10 % by absorbing moisture from the surround air.

07

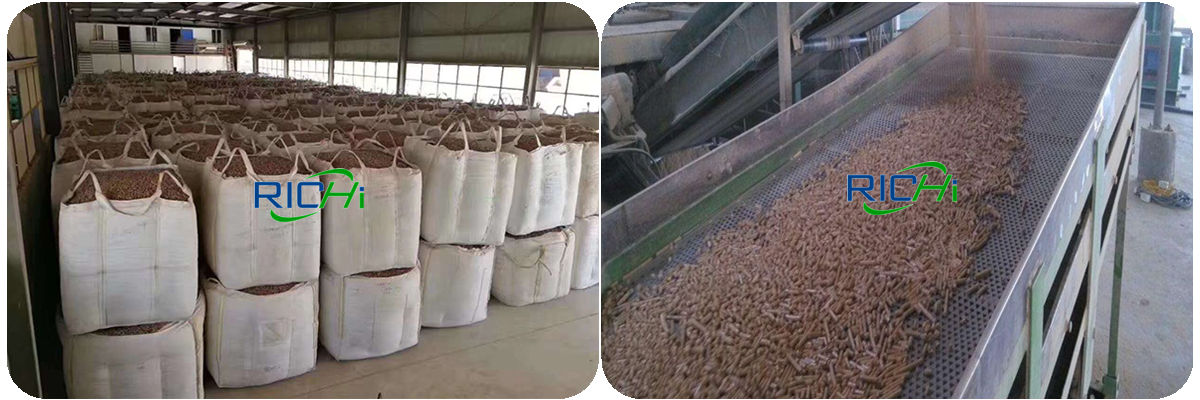

Packaging system

Before packaging, the pellets will be screened again for recycling the fines. And then the pellets will be packaged. For domestic users, the wood sawdust pellets are preferred to be packed into bags with the sizes of 12, 15, or 20 kg.

While for exporting, the sawdust pellets are usually shipped in one tone bags or in bulk which are usually wrapped in plastic to keep the moisture out. Compare with the large bulks or bags, the small bags are better for the pellets because the pellet are subject to less abrasion during delivery.

1. From customized non-standard models to multi-combination standard configuration models, RICHI is always in accordance with market trends and customer needs, constantly introducing new ones. In Richi Machinery, each sawdust pellet production line design and sawdust pellet production machine can be customized.
2. Although the sawdust pellet production technology of different customers is different, we always follow when designing for customers: reasonable configuration, stable performance, convenient operation process, and high economic benefits.
3. This sawdust pellet line is suitable for wood waste and all other biomass waste production of various sizes, various hardness, various lengths and various types.
4. The replacement of wearing parts can be completed quickly, reducing downtime and maintenance time.
5. Reasonable initial sawdust pellet plant investment cost and low maintenance cost in the later stage.

wood Chipper Machine

Capacity:
3-18T/H

Main Power:
4-110KW

wood Hammer Mill

Capacity:
3-25T/H

Main Power:
30-160KW

sawdust Dryer machine

Capacity:
Customized

Rotate Speed:
3-8 R/Min

Wood Pallet Crusher

Capacity:
3-12T/H

Main Power:
50-110KW

sawdust Pellet press

Capacity:
0.3-4.5T/H

Main Power:
37-280KW

Pellet Cooler Machine

Capacity:
1.5-18T/H

Main Power:
0.75-2.05 KW

Vibrating Screening Machine

Capacity:
3-20T/H

Main Power:
1.5-5.5KW

Automatic Bagging Machine

Speed:
6-12 Bags/Min

Main Power:
1.1-5KW

Richi Machinery have provided 1-90t/h sawdust pellet production lines, sawdust pellet manufacturing plants and single sawdust pellet making machines for hundreds of sawdust pellet manufacturers, and we hope that in the future, we can also help you successfully realize a high-efficiency, high-quality, and high-return sawdust pellet production business.

Share a few customized sawdust pelletizing plant cases:

•

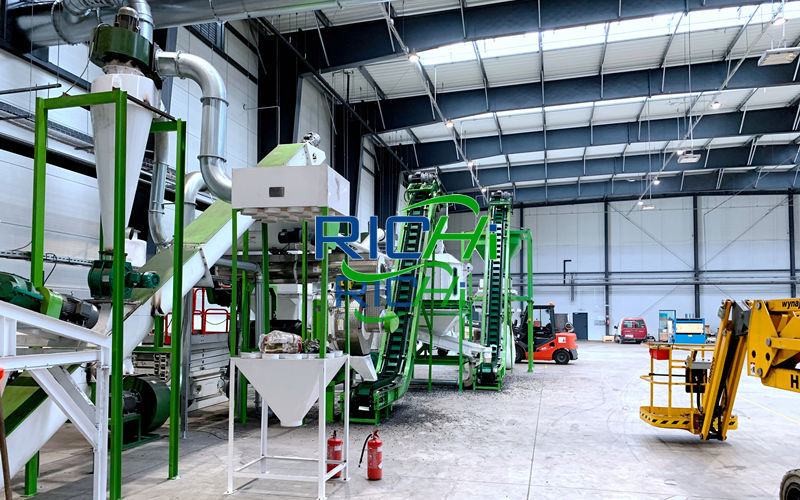

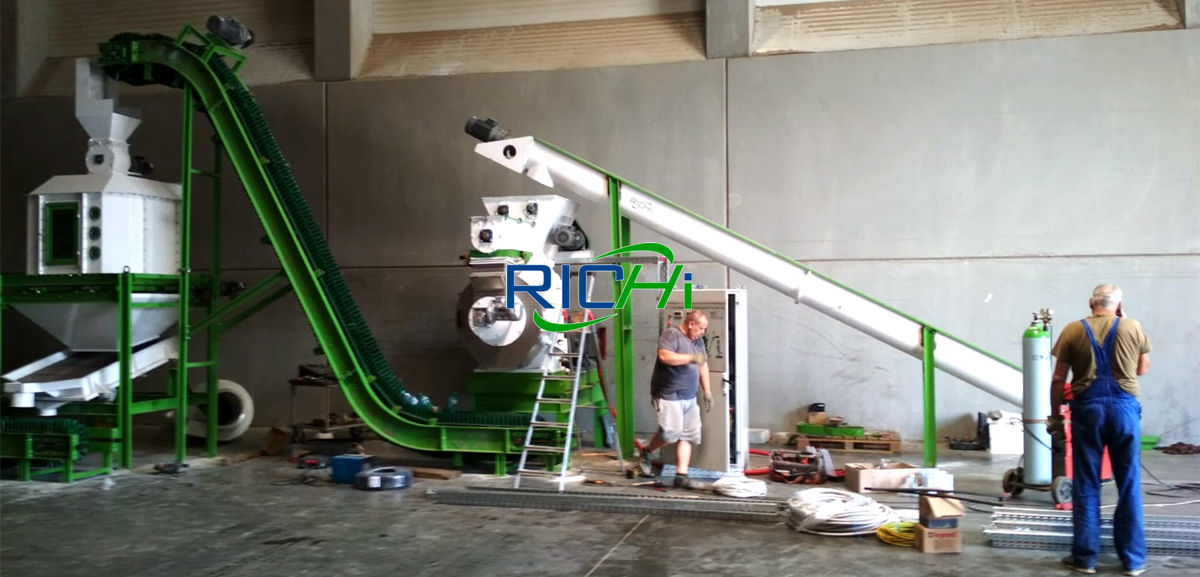

  Sawdust pellet production line in Germany

  Sawdust pellet plant cost: around 250,000USD

  Capacity: 2-2.5 T/H

  Pellet line equipments: wood pellet hammer mill, wood pellet manufacturing equipment, wood peeling equipment, wood spliter, wood shredder chipper, pulse dust collector, wood chips sawdust rotary dryer, cooling machine, packing machine, etc.

•

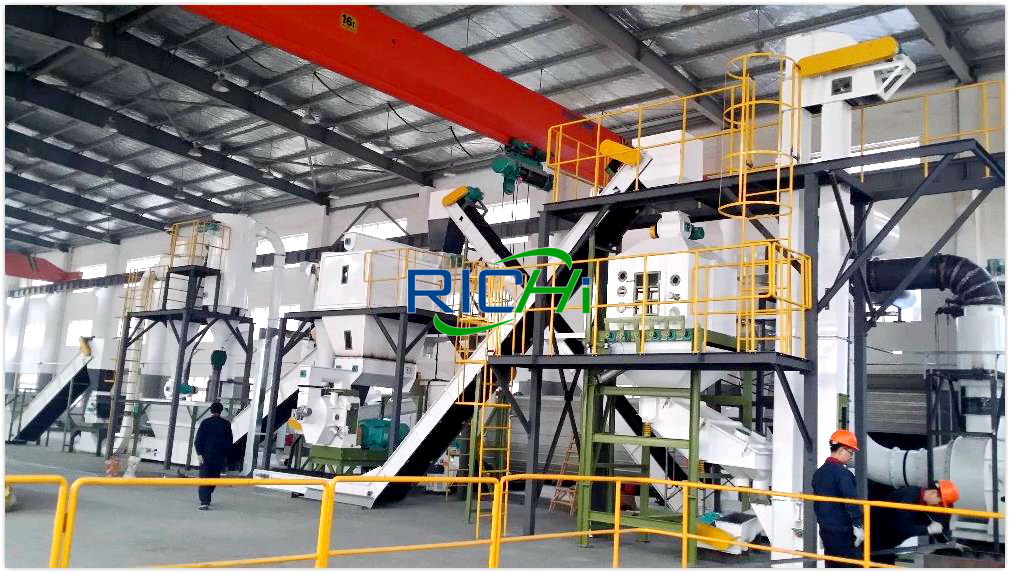

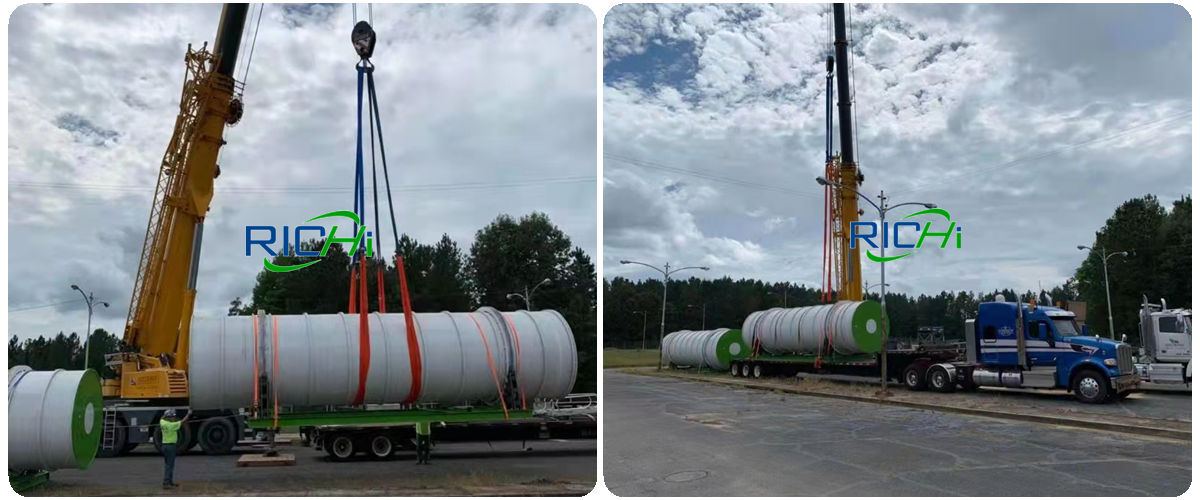

  Sawdust pellet production line in USA

  Cost: 1,300,000USD

  Capacity: 10 tons per hour

  Machinery for pellet line：wood hammer mill for sawdust, wood sawdust pellet mill, wood peeling equipment, wood spliter, commercial drum wood chipper, pulse dust collector, wood chips sawdust rotary dryer, pellet plant cooler machine, packing machine, etc.

•

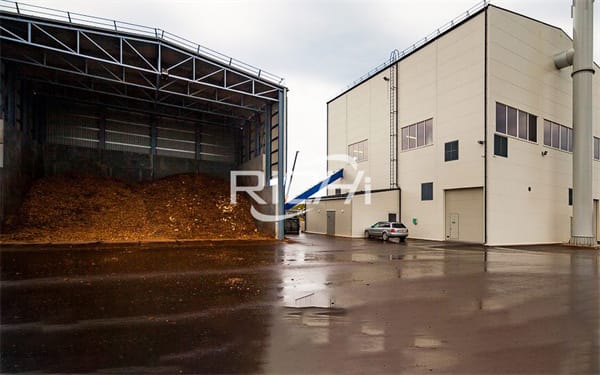

  Sawdust pellet manufacturing line in Austria

  Price: FOB price start with 300000 USD

  Capacity: 5T/H

  Machinery for pellet line: sawdust hammer mill, wood sawdust pellet equipment, wood peeling equipment, industrial chipper machine, pulse dust collector, sawdust pellet rotary dryer, pellet cooling machine, packing machine, etc.

•

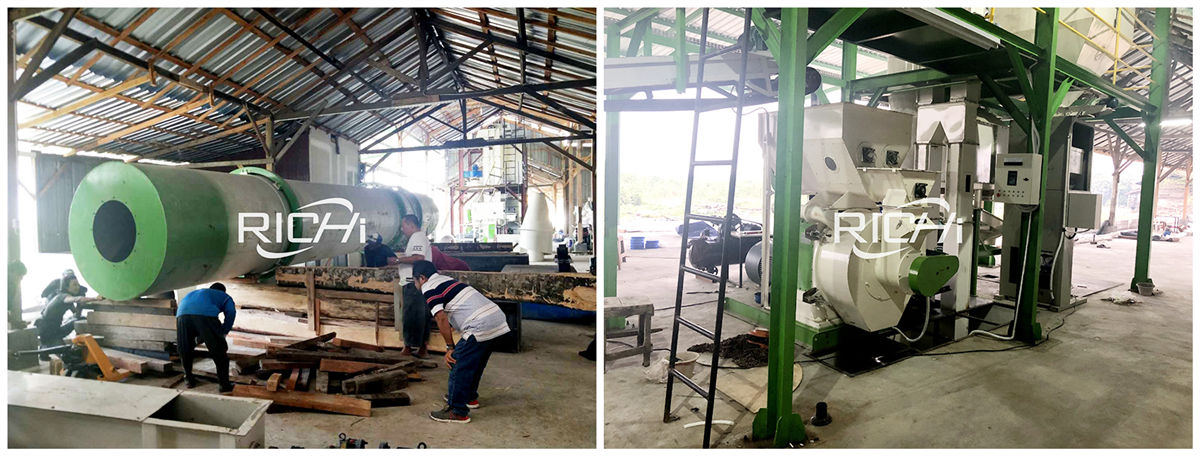

  Wood sawdust pellet line in Canada

  Cost: FOB price start with 200000 USD

  Capacity: 2-3T/H

  Machinery in the 2-3t/h sawdust pellets line：hammer mill for wood pellets, wood sawdust pellet processing equipment, CE wood chipper for big diameter wood log, dryer machine for sawdust, sawdust pellet cooler, packing machine, etc.

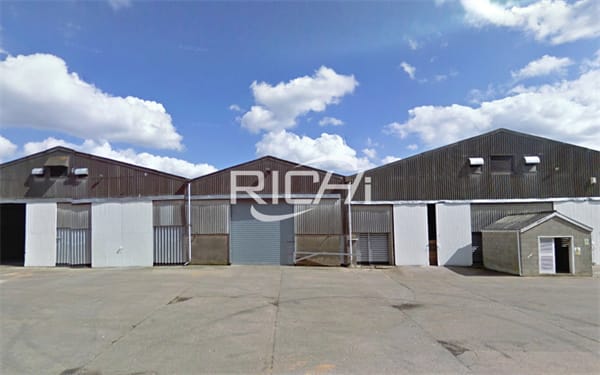

Starting your own sawdust pellet making plant does have some premises: raw material availability, location of factory, distance among factory, port and targeting market, etc. Lacking of full consideration of each one of said points may cause problems in production, logistics or shipment.

Which is the best choice for your pellet production, sawdust, wood chips, tree branches, straw, stalk, palm fiber? It is also necessary to consider overall quality of raw material such as, size, moisture, heat values, ashes, etc.

When it comes to raw material, we are talking about not only what kind of pellets you are producing, but also the equipments you need with your pellet plant, as different material need different equipments. It decides the construction of wood pellet plant and the quality of final sawdust pellet products, that is, your investment and your profits.

Quality is another factor affects your profitability when the market price is fixed. Superior quality will be your competitive advantage while bad sawdust pellet quality or a bad reputation for wood pellet quality will be lethal disadvantage. So quality sawdust pellet mill is the most important choice you are going to make.

Financing is very important for wood pellet plant construction and your profits . Generally, the investment and your sawdust biomass pellet production line size are in direct ratio.

From the above content, you can see the equipment and processes required for a sawdust pellet production line. Below, RICHI will provide you with a list of equipment configurations for several typical sawdust production lines, for reference only:

•

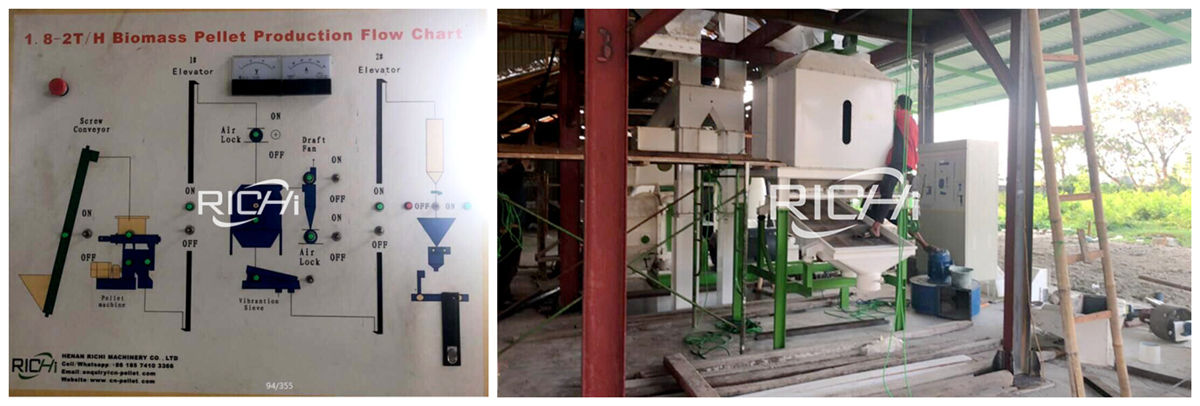

  1.2T/H complete wood pellet production plant design and required equipment

  No	Main Equipments	Model	Quantity
  1	Wood Hammer Mill for Sawdust	SFSP 66*60	1
  2	Energy Industry Sawdust Dryer	ф1200*120000	1
  3	Wood Pellet Machine	MZLH-420	1
  4	Wood Pellet Cooling Machine	SKLN11*11	1
  5	Vibrating Screener	TDZS63	1
  6	Pellet Packing Machine（with Belt and Sewing Machine）	DCS-50	1
  7	MCC Control Center ;Mimic Control Panel	/	1
  8	More Auxiliary Equipment	Buffer bin*2m³, Cyclone*ф1000, Pulse dust collector*TBLMa.36b, Draught fan*9-19-5.6a, U-Screw conveyor*TLSSU30, Bucket elevator*TDTG40/23, Storage bin*4m³, Anti-caking equipment, Bucket elevator*TDTG36/18,etc.

•

  10T/H latest technology high quality wood log pellet plant design and required equipment

  No	Main Equipments	Model	Quantity
  1	Heavy Duty Drum Chipper	JLBX-218	2
  2	Factory Sale Hammer Mill For Sawdust	SFSP66*80	2
  3	New Drying Equipment For Wood Sawdust	ф2400*100000*3 Layer	2
  4	Wood Sawdust Pelletizing Machine	MZLH-520	4
  5	Wood Pellet Cooling Machine	SKLN20*20	1
  6	Vibrating Screener	TDZS80	1
  7	Wood Pellet Packing Machine(with Belt and Sewing Machine)	DCS-50	1
  8	More Auxiliary Equipment	Belt conveyors*PDS650, Buffer bin*2m³, Cyclone*ф1000, Pulse dust collector* TBLMa.36b, U-screw conveyor*TLSSU32, Bucket elevator*TDTG60/23, Storage bin*20m³, Anti-caking equipment, Belt conveyor*PDS-500, etc.

•

  6T/H complete biomass pellet plant for wood sawdust and straw powder

  No	Main Equipments	Model	Quantity
  1	Mixer Machine	SLHJ1A	1
  2	Sawdust Rotary Dryer	ф1800*180000	1
  3	Sawdust Pellet Making Machine	MZLH-520	3
  4	Pellet Cooling Machine	SKLN17*17	1
  5	Vibrating Screener	TDZS63	1
  6	Pellet Packing Machine	DCS-50	1
  7	MCC Control Center ;Mimic Control Panel	/	1
  8	More Auxiliary Equipment	U-screw conveyor*TLSSU35, Bucket elevator*TDTG50/28, Upper level indicator*KF1500, Storage bin*20m³, Lower level indicator*KF1500, Cyclone*ф600, Belt conveyor*PDS-500, Pneumatic gate valve*TZMQ30A,etc.

•

  20T/H reasonable design large biomass pellet production line for wood pellets

  No	Main Equipments	Model	Quantity
  1	CE ISO Wood Chipper	JLBX-2113	2
  2	Wood Hammer Mill For Wood Sawdust	SFSP-Y60132Q1	4
  3	Rotary Dryer For Wood Chips	ф2400*100000*3 Layer	4
  4	Industrial Wood Sawdust Pellet Mill	MZLH-520	8
  5	Wood Pellet Cooling Machine	SKLN24*24	2
  8	More Auxiliary Equipment	Vibrating Screener*TQLZ150x200, Belt and sewing machine*DCS-MTB, Storage bin*4m³, Silencer for hammer mill*XY-132Q1, Connection piping system*FWY-350, Cyclone*SK1400, Pulse dust collector*FZMC6*12, etc.

Labeled with green and sustainable fuel, wood sawdust pellets are welcomed as a replacement of fossil fuels for energy production and pellet fuel production is subsided by majority of governments all around the world.

Comparing with oil, one ton of wood pellets reduces CO2 emission around 105 tons. While on the other hand, one ton of wood pellets equals to 2.8 barrels of #2 fuel oil in terms of net energy output.

Nowadays, with the favorable situations, wood sawdust pellet production business is developed with pleasing momentum. In USA market, the price for small bag wood pellets is around 170 USD/ton and the large package is abound 135 USD/ ton.

In Sweden, wood pellet price is about 150 USD / ton and the FOB price of bulk wood pellets is around 80USD/ ton. The situation is quite the same in other EU countries. Another words, to build a biomass pellet plant and produce wood sawdust pellet is quite a profitable business.

The followings are some sawdust pellet plant project proposal / biomass sawdust pellet business plan/ biomass sawdust pellet manufacturing project report for you:

•

  1.2T/H sawdust wood pellet production business plan

•

  3T/H business plan on sawdust pellet production

•

  13-14T/H hard wood sawdust pellet manufacturing project report

•

  20T/H business plan on biomass pellet production

Some Thing You Need To Know About Biomass Sawdust Pellet Plant Production Technology

• The process of biomass sawdsut pellet compaction by wood sawdust pellet press machine/biomass sawdust pellet plant depends on many factors, related to fuel material and biomass sawdust pellet production process. One of the most important is the proper fragmentation of the raw material. In most cases, more fragmented raw material makes it easier to achieve the desired quality parameters of sawdust pellets.

• While the chipping of biomass prefers moist materials, for grinding, the material needs to be dried. As drying temperature changes the properties of the material, these may affect the grinding process. The aim of this work was to determine the influence of the drying temperature of biomass sawdust raw material in the range of 60–140 ℃ on the biomass grindability. To only determine this effect, without the influence of moisture, grinding was carried out on the material in a dry state.

• Biomass, regardless of origin and source (woody, herbaceous, fruit or water), from a chemical point of view, consists of three main components: cellulose, hemicellulose, and lignin. Thus, this kind of biomass is called lignocellulose biomass, and contains about 50% of carbon and about 6–8% hydrogen. This is the main reason why it is mainly used as a biofuel.

• From the point of view of the energy use of biomass sawdust, most of the energy accumulated in a given biomass is found in cellulose, hemicellulose, and lignin. Separately, the heat of combustion for cellulose and hemicellulose are similar: 17.6 and 17.9 MJ·kg, respectively. Lignin heat of combustion is higher and depends on the type of biomass sawdust: lignins from spruce and beech, but also from olive pomace, walnut, and hazelnut shells, have 27–28 MJ·kg.

  Therefore, the biomass sawdust heat of combustion is determined by the proportion of lignin in relation to holocellulose, however, despite the different levels of lignin, cellulose, and hemicellulose in biomass, the biomass sawdust heat of combustion has a narrow range of 18–22 MJ·kg.

• This energy homogeneity means that biomass from a wide range of sources is taken into account as raw material for the production of solid biofuels. These include coniferous and deciduous woods, different species of grasses, and dicotyledonous perennials as well as straw. Recently, more popular are shells, stones, husks, pomaces, and aquatic biomass.

• Therefore, biomass as a sawdust raw material for the production of solid biofuels is characterized by a very high diversity of physical properties such as moisture content just after harvest, specific and bulk density, or form. This heterogeneous raw material must be processed into a sawdust product that has a uniform quality.
   Only standardized quality sawdust pellet fuel allows for the combustion process to be properly conducted and allows for automation of the feeding and burning process, which is a standard in current modern heating systems.

• In order to obtain a high quality final product in the form of sawdust fuel pellets by sawdust pellet making machine, it is very important that the preparation of the sawdust raw material is carried out properly. The biomass during harvest usually has two disadvantages: high moisture content (MC) and a low degree of fragmentation (shoots, chips, chipped straw, etc.).

• These properties of the biomass sawdust raw material do not allow for its direct processing in a pressure agglomeration into pellets. Two stages are therefore necessary to prepare the raw material properly: drying and grinding afterward. The order of these steps is important because the grinding process is more efficient when the material is dry, where a humidity of less than 15% is recommended.


The depletion of fossil fuels and the need to reduce green house gas emissions has resulted in a strong growth of biomass utilization for heat and power production. Attempts to overcome the poor handling properties of biomass, i.e. its low bulk density and inhomogeneous structure, have resulted in an increasing interest in biomass densification technologies, such as pelletization in biomass sawdust pellet production line.

The global pellet market has developed quickly, and strong growth is to be expected for the coming years. Due to an increasing demand for biomass sawdust, the traditionally used wood residues from sawmills and pulp and paper industry are not sufficient to meet future needs. Therefore, new types and sources of biomass sawdust will be used more commonly in the future.
